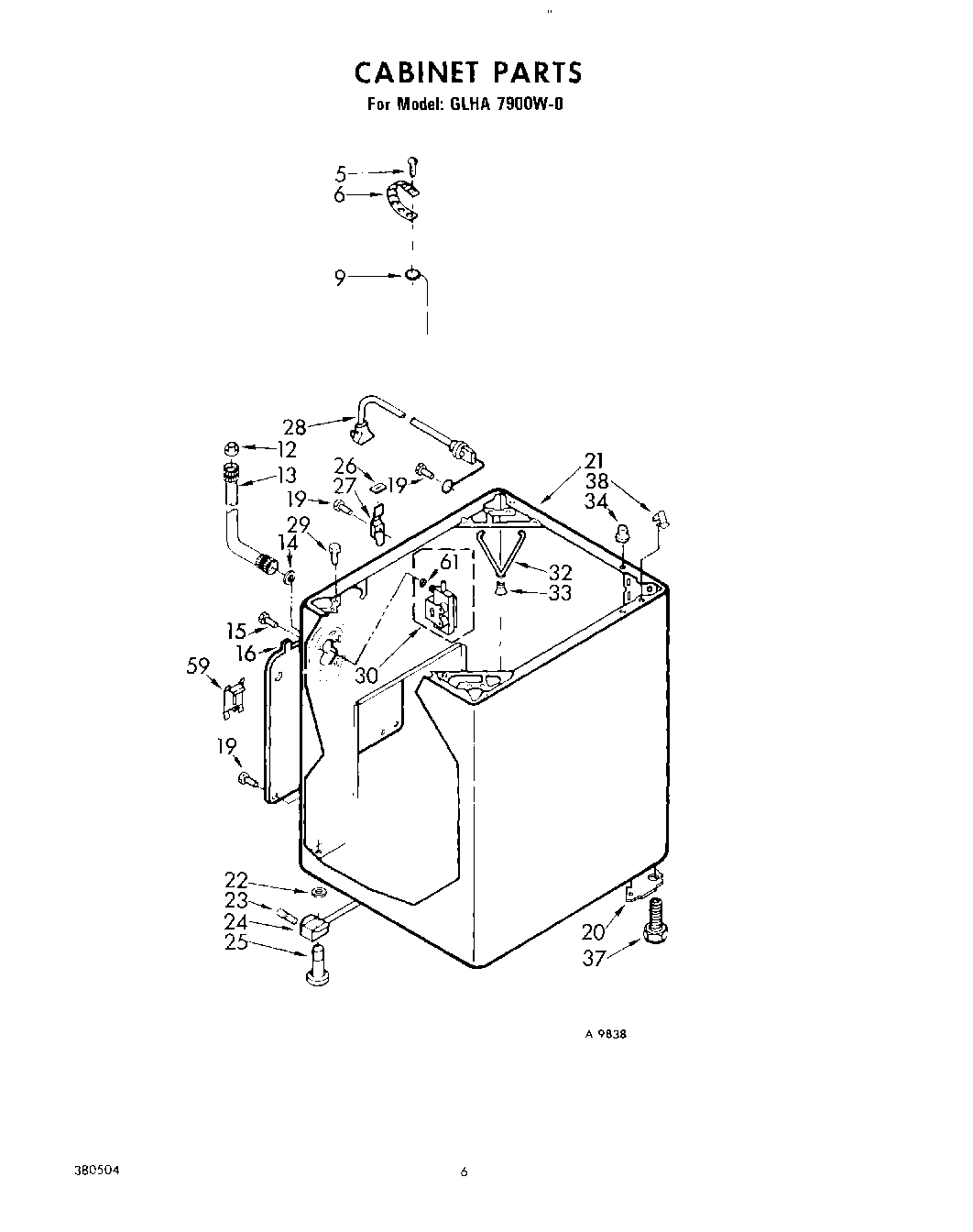

GLHA7900W0 04 – CABINET, OPTIONAL

GLHA7900W0 04 – CABINET, OPTIONAL

Written by

in

GLHA7900W0 04 – CABINET, OPTIONAL

Products

PositionProduct
5Screw, Ground (10-24 x 1)
6Strap, Ground
9WPL 364089
12285452A Whirlpool Hose Seal and Screen
13WP89503 Whirlpool Washer Fill Hose
14WP16123 Whirlpool Washer
15WP3351614 Whirlpool Screw
16Panel, Rear
20Plate, Gusset
21Cabinet (Almond)
21Cabinet (White)
21Cabinet (Coffee)
21Cabinet (New Avocado)
21Cabinet (Golden Harvest)
22Washer, Friction
23WP62837 Whirlpool Dowel Pin
24Link, Leveling
25Foot, Rear (2)
2618849 Whirlpool Pad
27Hinge, L.H.
27Hinge, R.H.
28Cord, Power (60 Hz.)
29SCREW
30Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
30Valve, Mixing (Alt.)
32Spring, Snubber
33Pad, Snubber
34Locator, Top
37WP367594 Whirlpool Leveling Feet
38WP18776 Whirlpool Lock
59Plug, Cabinet
61350956 Whirlpool Spray Assembly
61350938 Whirlpool Spray Gun
61350930 Whirlpool White Spray Paint
61799344 Whirlpool Refrigerator Paint
61Leveler (Thinner)
61WP72107 Whirlpool Touchup
61Almond (Uncut)
61Golden Harvest (Uncut)
6172017 Whirlpool Appliance Touch-Up Paint White
61Enamel, New Avocado (1 Qt. Uncut)
61WPL 799351
61Golden Harvest
61Enamel, Coffee (1 Qt. Uncut)
61Paint, Spray 13 Oz. (Avocado)
61paint, spray 13 oz. (coffee)
61Paint, Touch-Up 1/2 Oz. (Coffee)
6172109 Whirlpool Dacor Avocado Touch-Up Paint
6172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61WP96160 Whirlpool Washer Inlet Valve Screen
