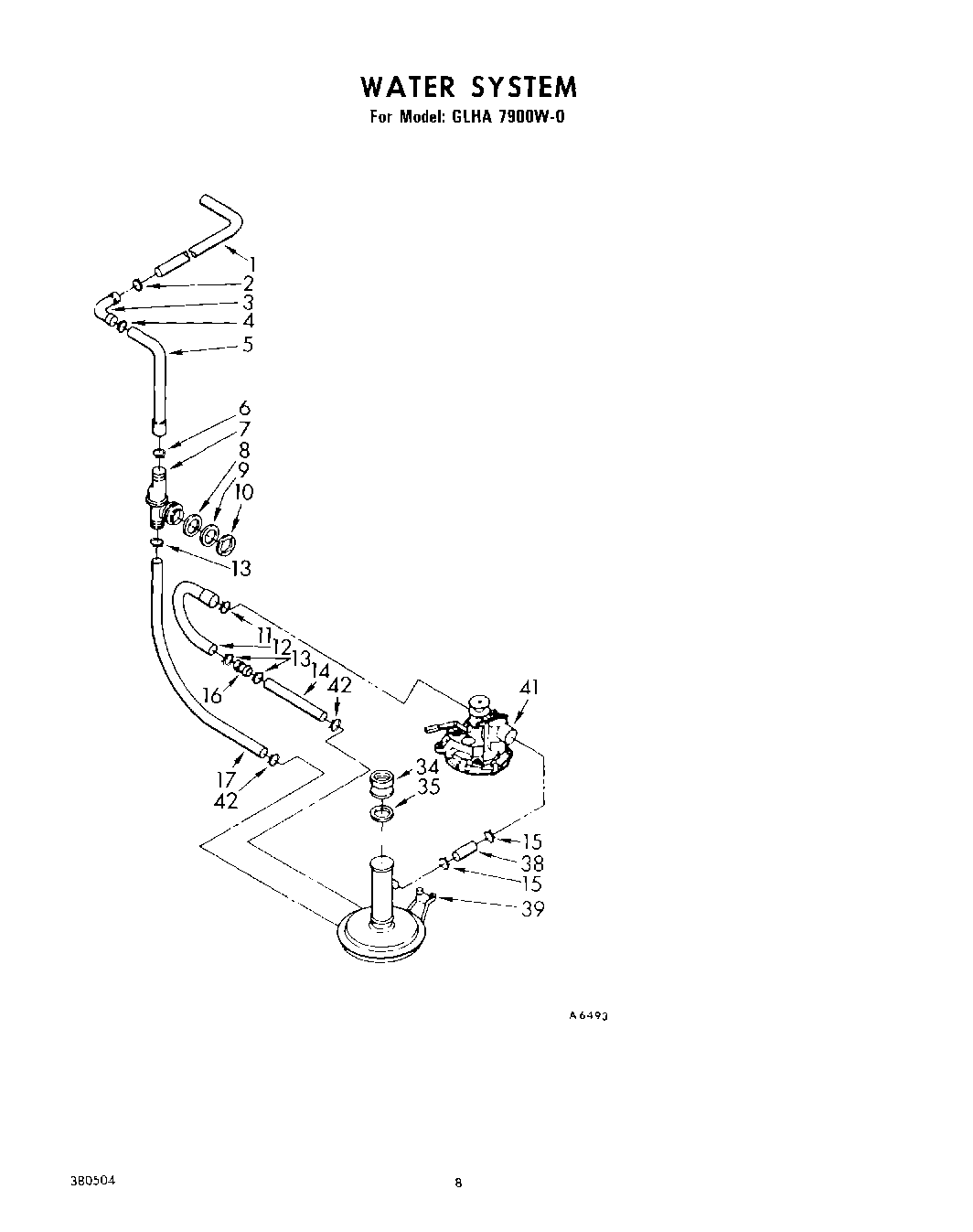

GLHA7900W0 05 – WATER SYSTEM

Products

Position	Product
1	Hose, Gooseneck
3	Connector, Hose
5	Hose, Side Check to Drain
6	WP356138 Whirlpool Hose Clamp
7	Valve, Side Check
8	Washer, Rubber
9	Washer, Fiber
10	Nut, Spanner
11	WP616099 Whirlpool Clamp
12	Hose
13	Clamp, Hose (Alternate)
13	Clamp, Hose (Alternate)
14	Hose, Pump To Filter
15	WP285655 Whirlpool Hose Clamp
16	WP16272 Whirlpool Hose Coupling
17	Hose, Side Check To Filter
34	Hose, Tub Outlet
35	Clamp, Hose
38	Hose
39	Manifold & Filter Assembly
41	350365 Whirlpool Dryer Washer Water Pump, 2-Port
