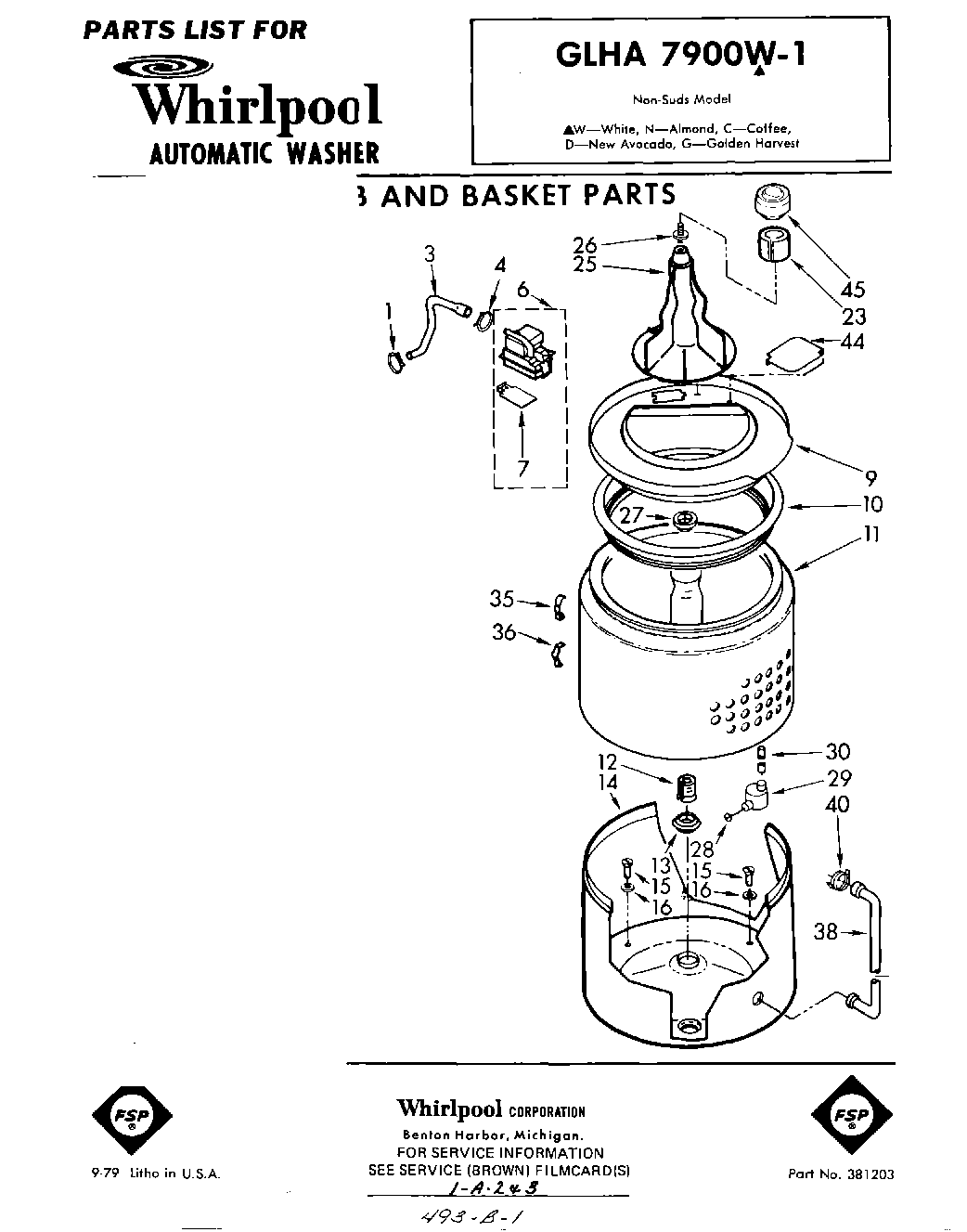

GLHA7900W1 01 – TUB AND BASKET , LIT/OPTIONAL

Products

Position	Product
	Wire, 25` Roll (Red 12 Ga.)
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
9	Ring, Tub
10	Seal, Tub Ring
11	Basket
12	Block, Drive
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
15	Screw, Tub
16	WASHER
23	Cap, Agitator
25	Agitator
26	Stud, Agitator Shaft
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
35	Clip, Tub Ring (3)
36	Clip, Tub Ring (1)
38	Hose, Dispenser
40	WP596669 Whirlpool Hose Clamp
44	Plate, Snubber
45	List, Repair Parts
45	Miscellaneous Parts Bag
45	Instructions, Operating
45	Dispenser, Rinse
45	Instructions, Installation
45	Harness, Cabinet
45	Harness, Console
45	Guide, Laundry
