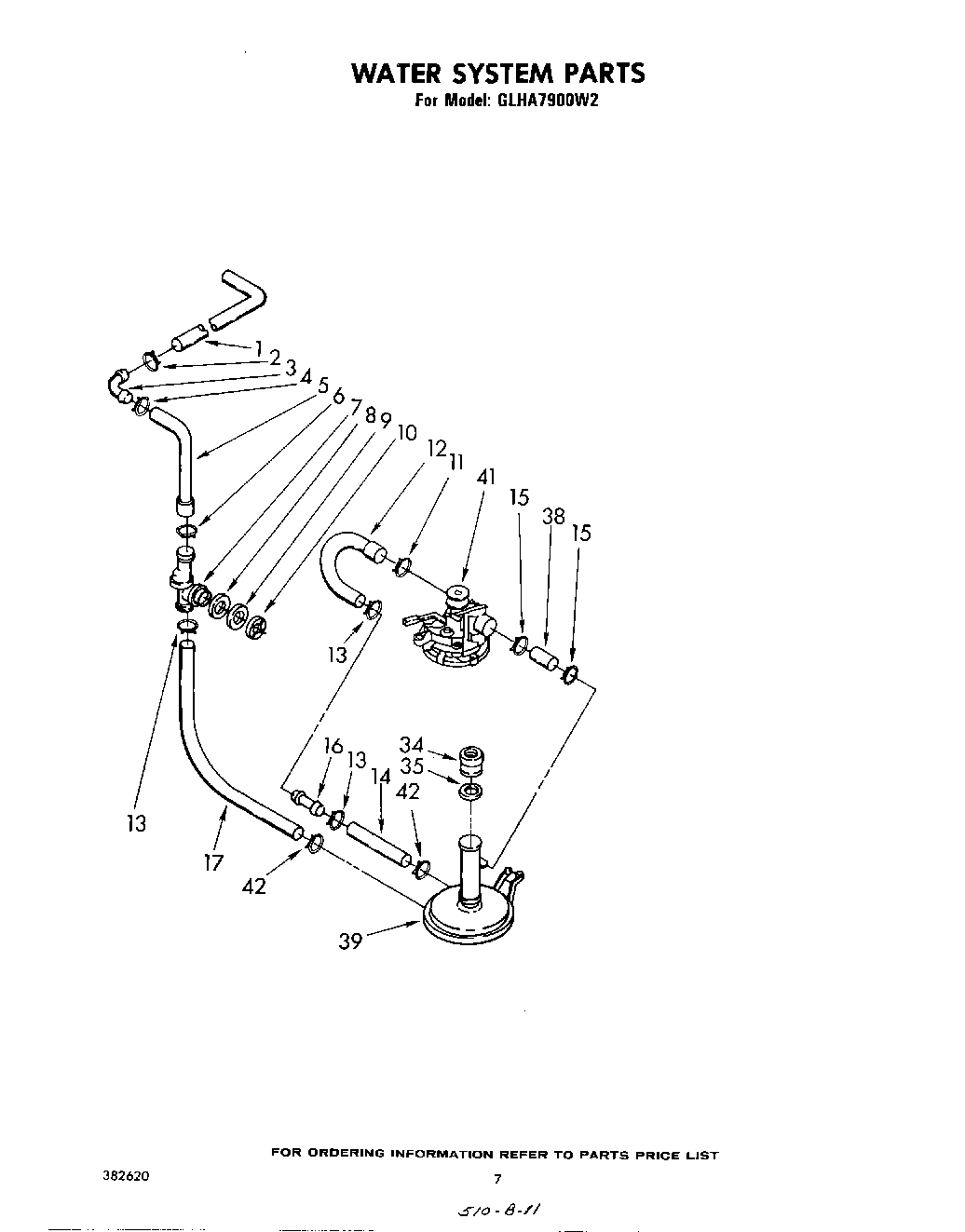

GLHA7900W2 06 – WATER SYSTEM

GLHA7900W2 06 – WATER SYSTEM

Written by

in

GLHA7900W2 06 – WATER SYSTEM

Products

PositionProduct
1Hose, Gooseneck
3Connector, Hose
5Hose, Side Check to Drain
6WP356138 Whirlpool Hose Clamp
7Valve, Side Check
8Washer, Rubber
9Washer, Fiber
10Nut, Spanner
11WP616099 Whirlpool Clamp
12Hose
13Clamp, Hose (Alternate)
13Clamp, Hose (Alternate)
14Hose, Pump To Filter
15WP285655 Whirlpool Hose Clamp
16WP16272 Whirlpool Hose Coupling
17Hose, Side Check To Filter
34Hose, Tub Outlet
35Clip, Hose
38Hose
39Manifold & Filter Assembly
41350365 Whirlpool Dryer Washer Water Pump, 2-Port
