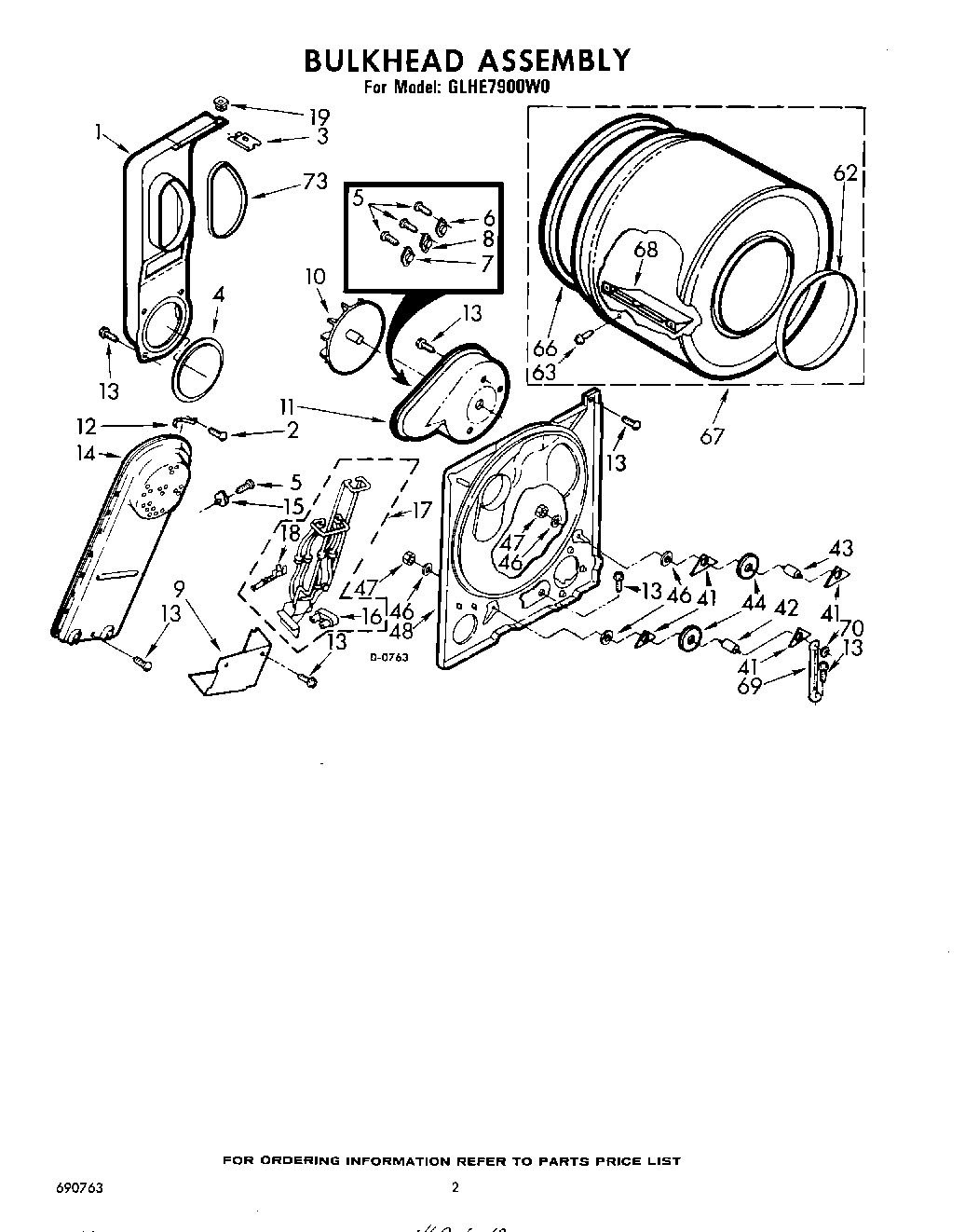

| 1 | 279505 Whirlpool Chute |
| 3 | Clip (2) |
| 4 | W11415783 Whirlpool Seal |
| 5 | WP90767 Whirlpool Screw |
| 6 | Thermostat, Operational 165~F (74~C) (Alternate) |
| 6 | Thermostat, Operational 165~F (74~C) (Alternate) |
| 8 | WP694674 Whirlpool Cycling Thermostat |
| 9 | Reflector, Heat |
| 10 | WP694089 Whirlpool Dryer Blower Wheel |
| 11 | Housing, Blower (Export) |
| 12 | 279771 Whirlpool Clip |
| 13 | SCREW |
| 14 | Box, Heater |
| 15 | 279054 Whirlpool Dryer High Limit Thermostat L290 3W |
| 16 | Receptacle |
| 17 | Element, Heater (Element, Heater (50 Hz.) (Use W/Model 3LE5700XKW0) (Use 279139 Jumper Wire For Heat |
| 18 | Terminal, Male (2) |
| 19 | 98460 Whirlpool Nut |
| 41 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 42 | SHAFT SUPPORT ROLLER DRYER |
| 43 | SHAFT SUPPORT ROLLER DRYER |
| 44 | 349241T Whirlpool Dryer Drum Support Roller Kit |
| 46 | WP348197 Whirlpool Washer Assembly |
| 47 | WP358160 Whirlpool Nut |
| 48 | Bulkhead |
| 62 | WP3394508 Whirlpool Bearing Ring |
| 63 | Screw, 11-16 x 7/8 |
| 66 | 239087 Whirlpool Dryer Rear Drum Seal Green Stitches |
| 67 | 3396775 Whirlpool Drum Assembly |
| 68 | WP342847 Whirlpool Drum Baffle |
| 69 | Bracket, Support |
| 70 | WP90296 Whirlpool Clip |
| 73 | SEAL |
