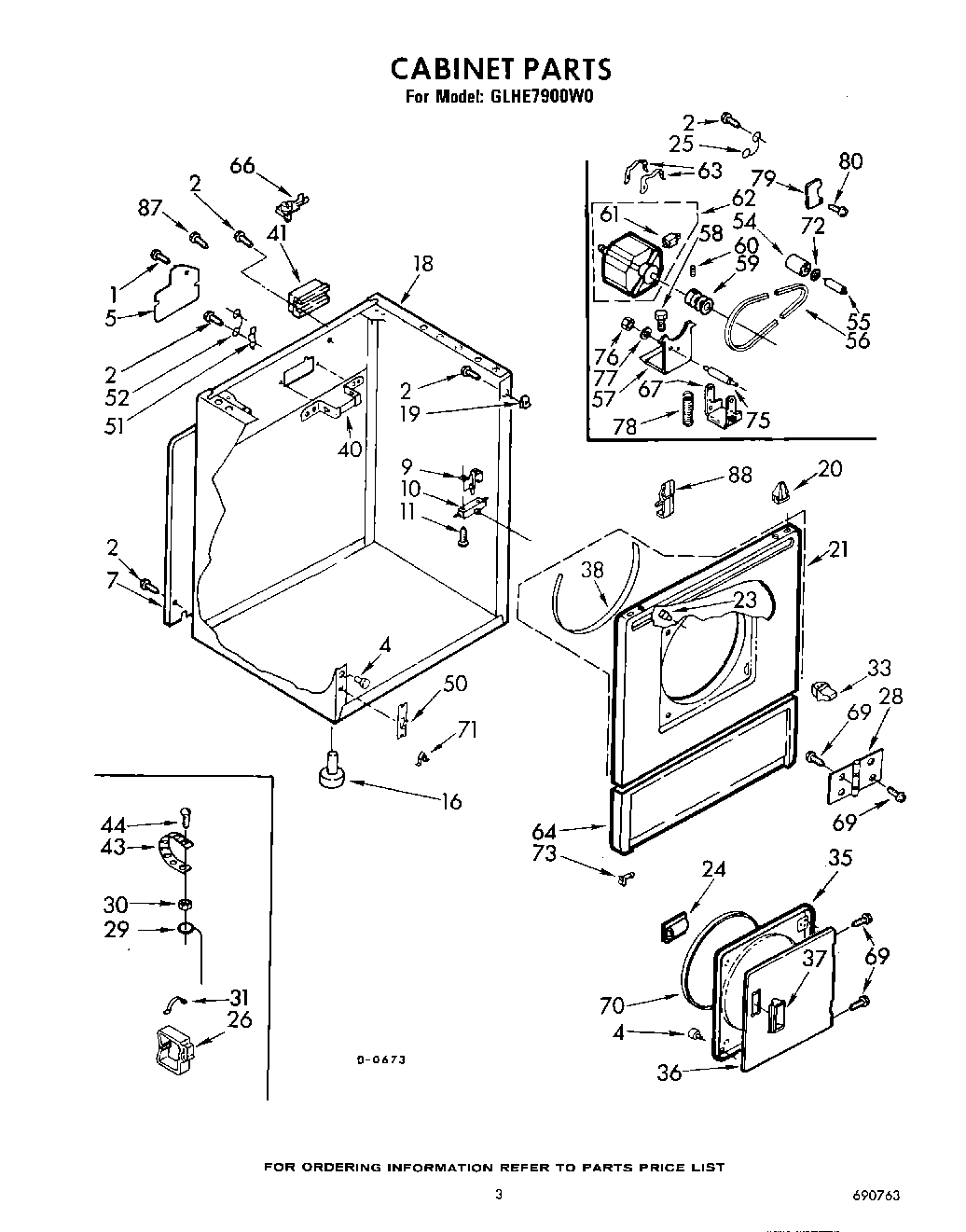

GLHE7900W0 03 – SECTION

Products

PositionProduct
4238614 Whirlpool Bumper Hinge
5Cover, Terminal Block
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
1649621 Whirlpool Leveling Feet
18Cabinet Assembly (Coffee)
18Cabinet Assembly (White)
18Cabinet Assembly (Golden Harvest)
18Cabinet Assembly (New Avocado)
18Cabinet Assembly (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Upper Front (White)
21Panel, Upper Front (Coffee)
21Upper Front (Almond)
21Upper Front (Golden Harvest)
21Panel, Upper Front (New Avocado)
23279220 Whirlpool Clip
25Wire, Ground (Motor)
26Clip, Harness (Rear Bulkhead Area)
28WP348023 Whirlpool Hinge
29WPL 685449
30W10080180 Whirlpool Nut
318528351 Whirlpool Clip
33279570 Whirlpool Dryer Door Latch Kit
35280077 Whirlpool Door
36WPL 689318
36Door, Front (Almond)
36WP348205 Whirlpool Door
36WPL 689315
36WPL 689319
37WPL 689583
37Handle, Door (Almond)
37Handle, Door (Golden Harvest)
37WPL 689307
37WP686711 Whirlpool Door Handle
38279264 Whirlpool Bearing and Seal Kit
40279320 Whirlpool Dryer Rear Terminal Block Kit
43Strap, Ground
44Screw, Ground (10-24 x 1)
50WP297092 Whirlpool Clip
51WP8066217 Whirlpool Hinge
52Wire, Ground
54WP691366 Whirlpool Dryer Idler Pulley Assembly
55WPL 687121
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60WPL 98166
61279827 Whirlpool Dryer Drive Motor
62W11618508 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
64WPL 689248
64WPL 689247
64Panel, Toe (Golden Harvest)
64Panel, Toe (White)
64Panel, Toe (Almond)
66279318 Whirlpool Terminal
67WPL 345263
69Screw
70W11613302 Whirlpool Door Seal
71Clip, Toe
72WPL 345323
73WPL 341776
75WPL 345234
76WPL 124925
77WPL 120382
78Spring
79Shield, Motor
80WP489128 Whirlpool Refrigerator Screw
87SCREW
88Clip, Retainer
