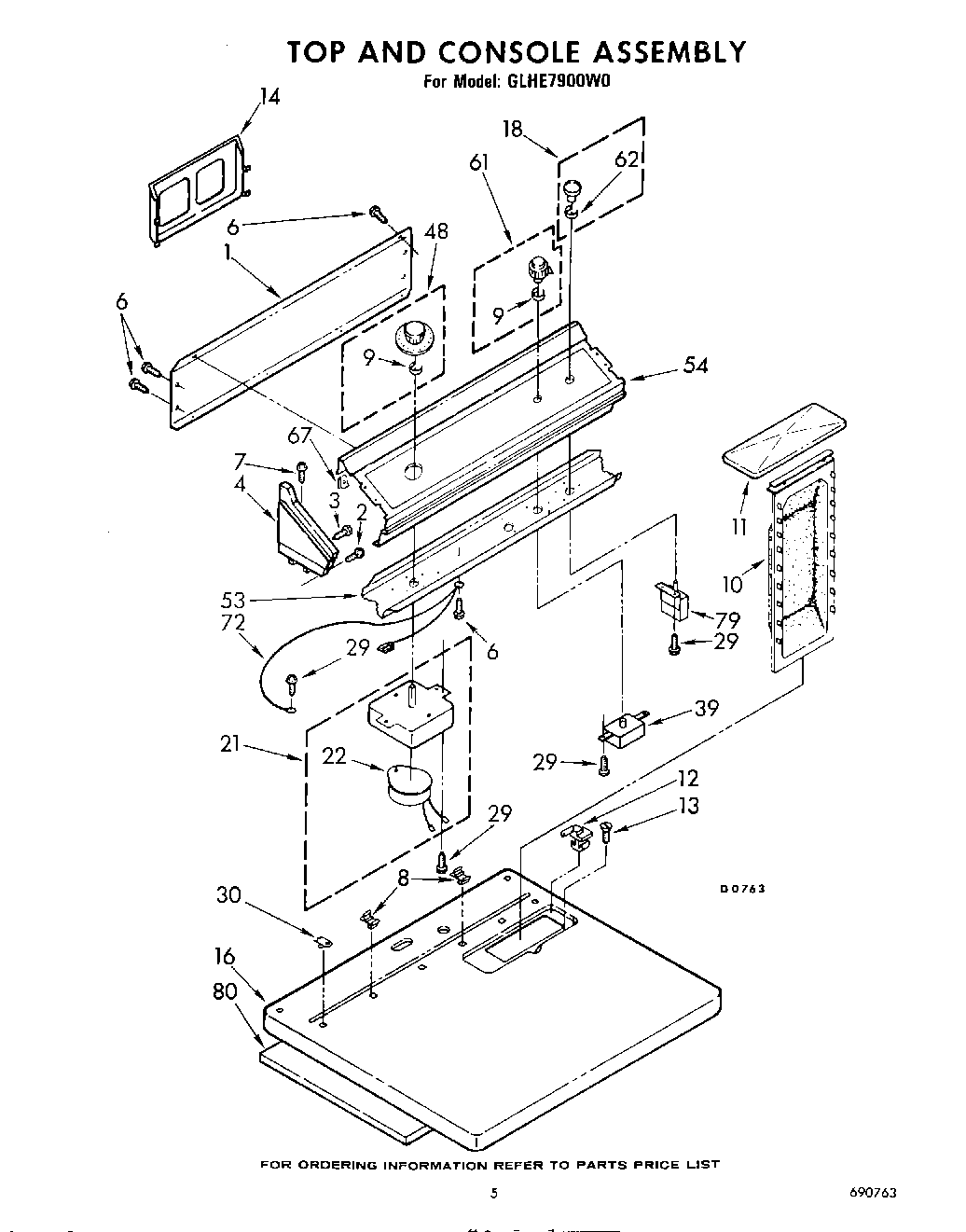

GLHE7900W0 04 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	Harness, Electric
	Almond (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
1	Panel, Rear
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	Cap, End L.H. (Golden Harvest)
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (White)
6	SCREW
7	WP965173 Whirlpool Dishwasher Screw
8	Nut, Push-In (2)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Coffee)
11	Cover, Lint Screen (New Avocado)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Rack, Literature
16	Top (Golden Harvest)
16	top (white)
16	Top (Coffee)
16	Top (Almond)
16	Top (New Avocado)
18	Button Assembly
21	Timer, 50 Hz. (Use W/Model 3LE5700XKW0)
22	Motor, 50 Hz/60 Hz.
29	WP3390631 Whirlpool Screw
30	Stop, Push-In Top
39	Switch, Rotary
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
61	Control Knob Assembly
62	Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Push-To-Start (Alternate)
80	350930 Whirlpool White Spray Paint
80	WPL 690003
80	WPL 690715
80	WPL 690763
80	72017 Whirlpool Appliance Touch-Up Paint White
80	350956 Whirlpool Spray Assembly
80	350938 Whirlpool Spray Gun
80	WP72107 Whirlpool Touchup
80	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80	WPL 799351
80	Leveler (Thinner) (2oz.)
80	Paint, Spray 13 Oz. (Avocado)
80	paint, spray 13 oz. (coffee)
80	Paint, Touch-Up 1/2 Oz. (Coffee)
80	72109 Whirlpool Dacor Avocado Touch-Up Paint
80	WPL 688898
80	Golden Harvest
80	WPL 685870
