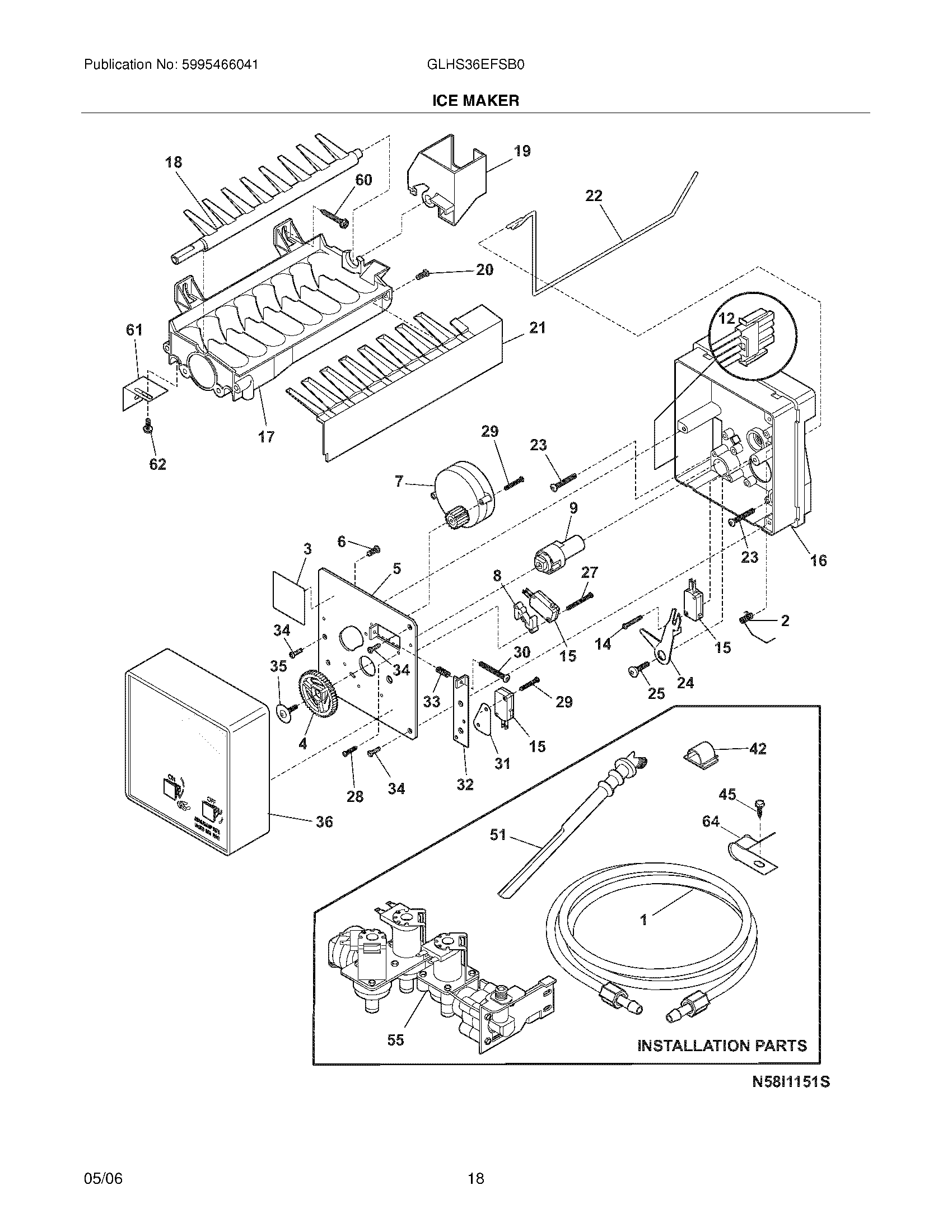

GLHS36EFSB0 19 – ICE MAKER

Products

Position	Product
NI	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	WCI 218515402
NI	241798231 Frigidaire Refrigerator Ice Maker Assembly
NI	5304445223 Frigidaire SPRING BEAM
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	Adapter-water supply,nut & sleeve ,
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI	WCI 218976907
NI	240542901 Frigidaire Water Valve Cap
1	218976409 Frigidaire Refrigerator Water Tube
2	WCI 5304420650
3	Label,ID plate
4	5304469403 Frigidaire Gear
5	WCI 5304455693
6	218359202 Frigidaire Refrigerator Screw
8	SPACER-HOLD SWITCH
9	WCI 3206313
12	WCI 5304420651
14	WCI 5304455676
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 5304420653
18	EJECTOR-ICE
19	WCI 3206330
20	5304455677 Frigidaire Screw
21	ICE STRIPPER
22	SHUT-OFF ARM
23	WCI 5304455678
24	5304456675 Frigidaire Refrigerator Lever Arm
27	WCI 5304455681
28	Screw-timing stop`4-40 x 0.375
29	WCI 5304455845
30	WCI 5304455682
31	WCI 3206342
32	WCI 5304455683
33	WCI 5304408583
34	WCI 5304455684
35	WCI 5304455685
45	5304455650 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
60	5304455852 Frigidaire Refrigerator Screw
61	218721500 Frigidaire Refrigerator Bracket-Leveling
62	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
64	5304455846 Frigidaire Refrigerator Clamp
