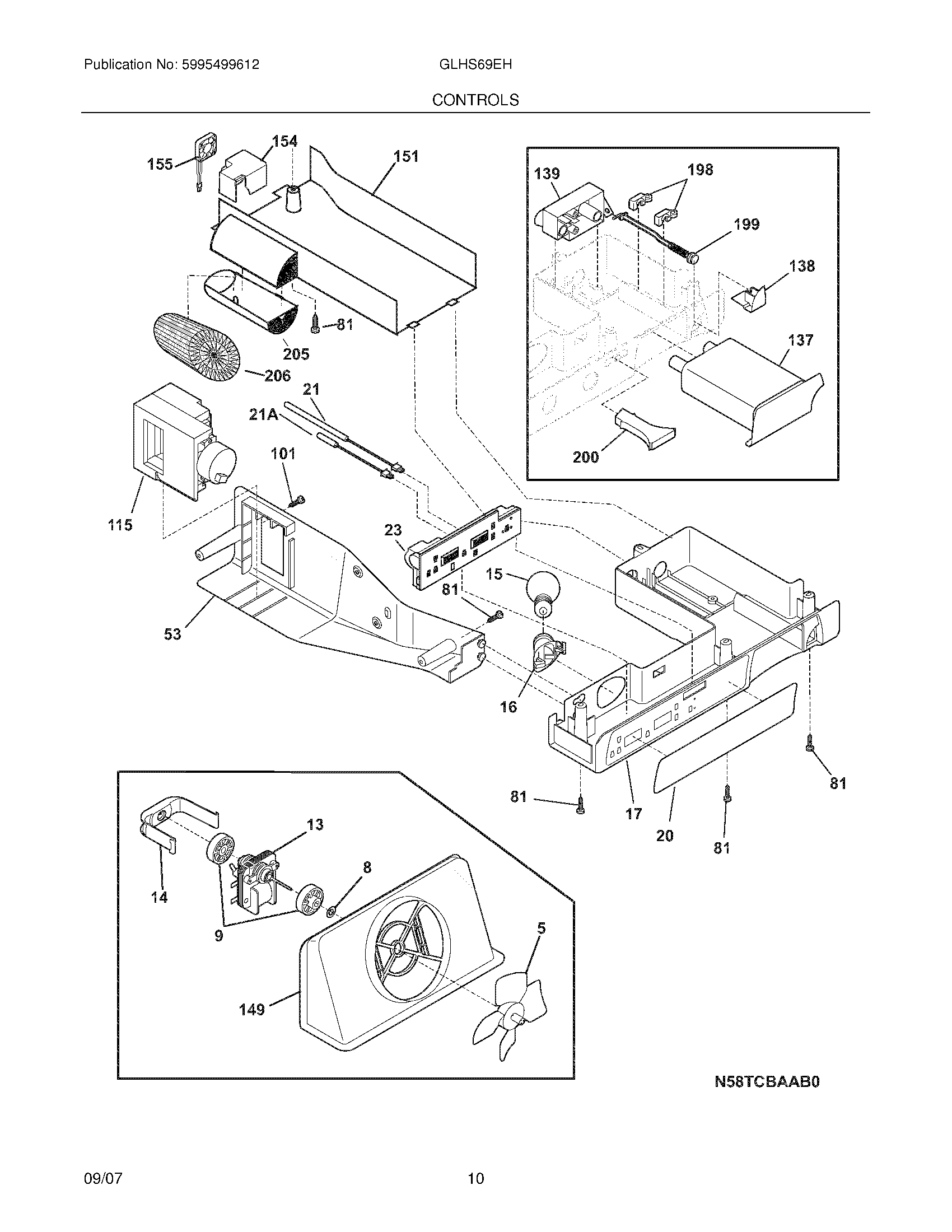

GLHS69EHQ3 11 – CONTROLS

GLHS69EHQ3 11 – CONTROLS

Written by

in

GLHS69EHQ3 11 – CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NIWCI 241737801
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13EVAP MOTOR KIT
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
20WCI 241603920
21A241608501 Frigidaire Refrigerator Freezer Thermistor
21241608401 Frigidaire Refrigerator Thermistor
23241739711 Frigidaire Control Board Terminal Switch
53241608902 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101241637202 Frigidaire Refrigerator Screw
115241600906 Frigidaire Refrigerator Damper Control Assembly
137WATER FILTER PURESOURCE 2
137242227702 Frigidaire Refrigerator Bypass Water Filter
138WCI 240397301
139240527001 Frigidaire Refrigerator O-Ring N
139240396002 Frigidaire Refrigerator Primary Base Water Filter
149241528303 Frigidaire Refrigerator Seal
149242204506 Frigidaire Refrigerator Shroud Assembly
151WCI 241526001
154WCI 241525801
155WCI 241526102
155WCI 241611901
198240397401 Frigidaire Refrigerator Retainer Assembly
199WCI 240397501
199240398401 Frigidaire Refrigerator Filter Release Spring
200WCI 240397601
205WCI 241525901
206AFCB Frigidaire Refrigerator Air Filter
