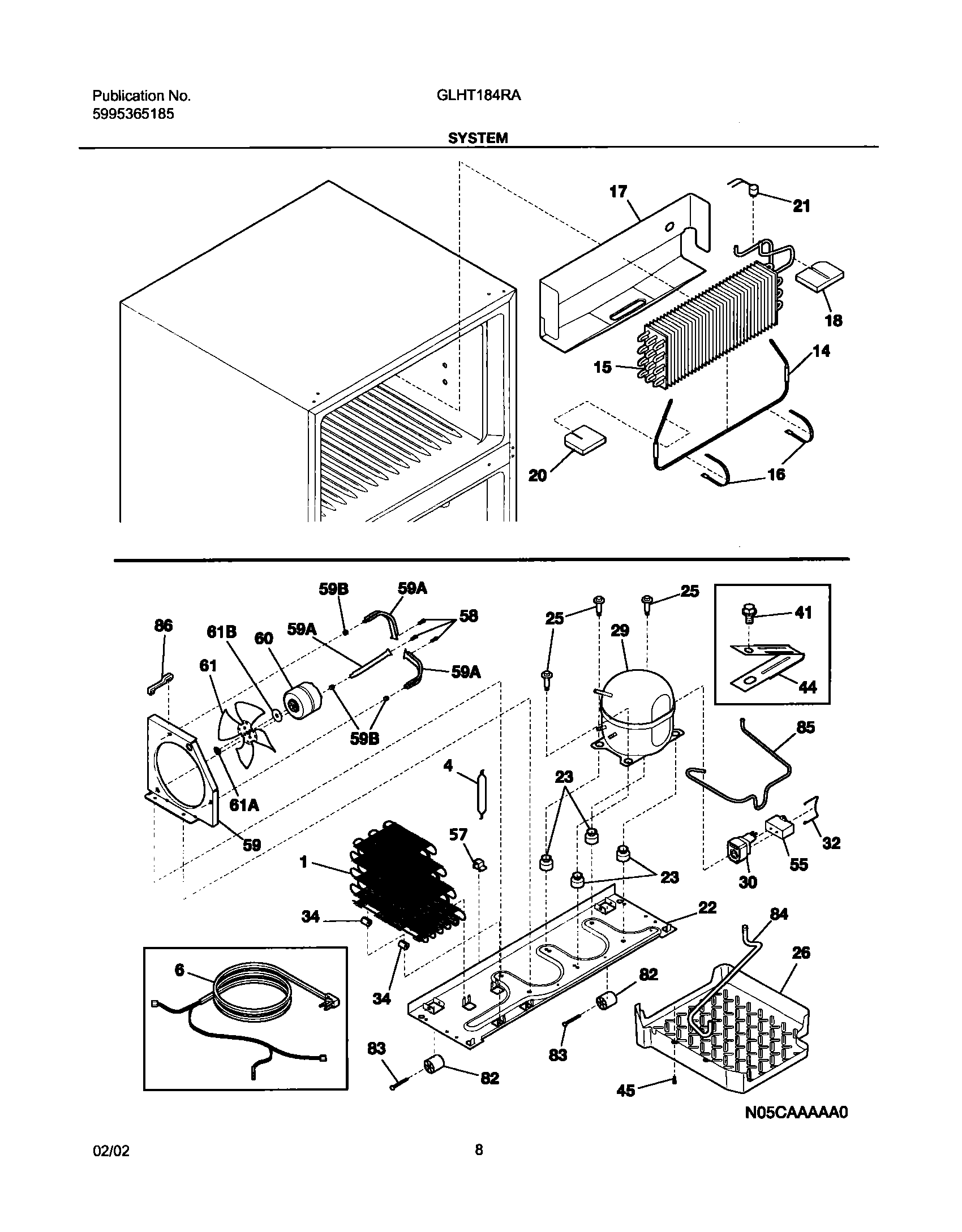

GLHT184RAB3 09 – SYSTEM

Products

Position	Product
NI	WCI 240375501
NI	5308000039 Frigidaire Refrigerator Screw
NI	WCI 5303918222
NI	WCI 240385301
NI	218843801 Frigidaire Refrigerator Screw
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	218252201 Frigidaire Refrigerator Screw
1	5304472169 Frigidaire Refrigerator Condenser Kit
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240496101
14	5303918208 Frigidaire Defrost Heater Kit
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
18	Insulation Block,RH
20	WCI 240362401
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	WCI 240330001
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-compressor mtg,hex washer head ,
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	5304491942 Frigidaire Refrigerator Starter Kit
32	5304497418 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	WCI 218897001
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59B	WCI 240346601
59A	240346501 Frigidaire Refrigerator Support Bracket
59	WCI 240315501
60	CONDENSER FAN MOTOR KIT
61	WCI 240315401
61B	WCI 215004800
61A	WCI 215004700
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	WCI 240493101
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
