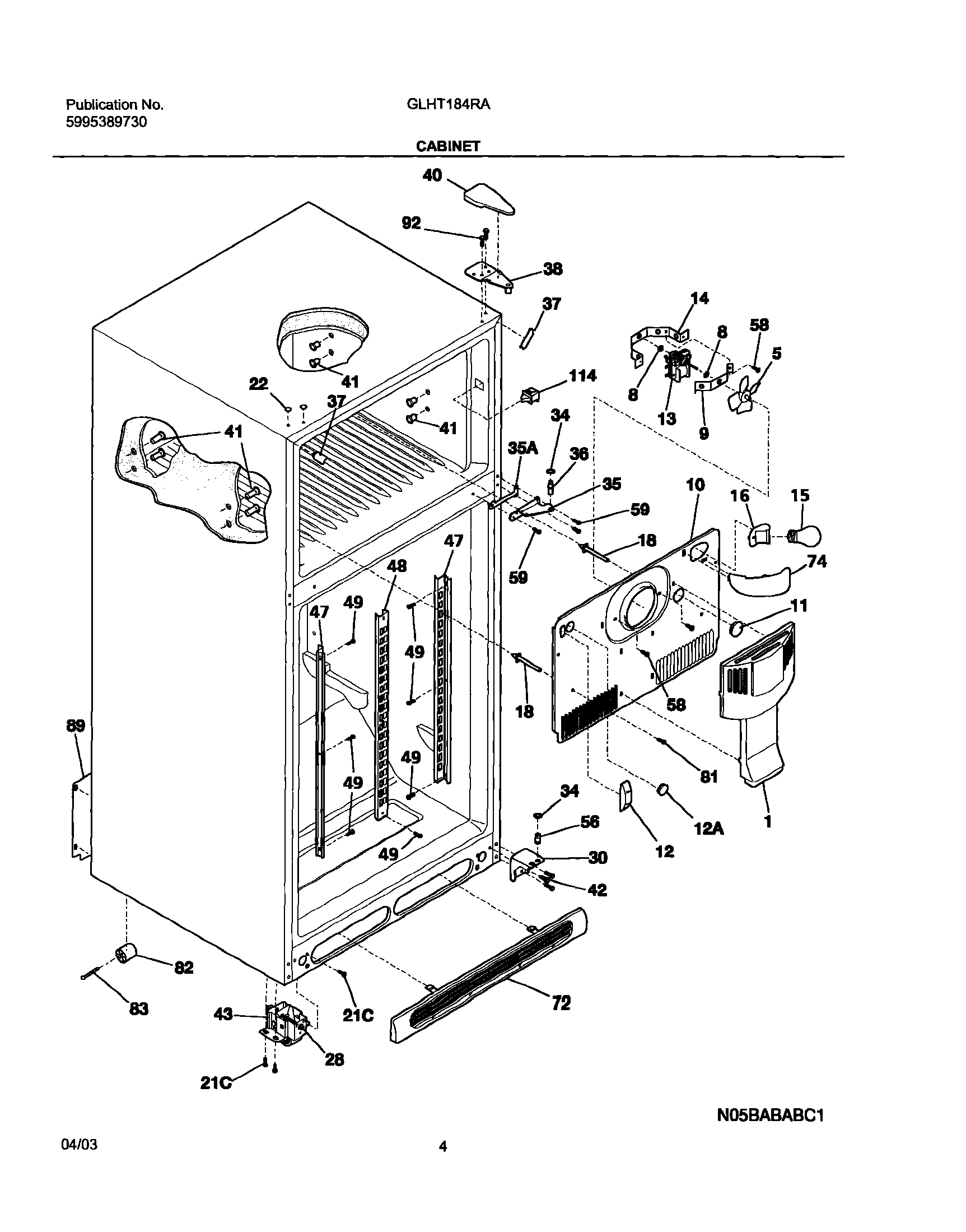

GLHT184RAQ8 05 – CABINET

GLHT184RAQ8 05 – CABINET

Written by

in

GLHT184RAQ8 05 – CABINET

Products

PositionProduct
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI215474201 Frigidaire Refrigerator Washer
NI5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI218515401 Frigidaire Refrigerator Clip
NIWCI 240524801
NI241500305 Frigidaire Refrigerator Screw
NI218843801 Frigidaire Refrigerator Screw
NIClamp-motor wiring,nylon ,w/adhesive tape
NI5304434189 Frigidaire Refrigerator Seal Kit
1WCI 240355403
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 240462009
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 240366801
12AWCI 240374401
13EVAP MOTOR KIT
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
16218906802 Frigidaire Light Lamp Socket
18WCI 240411901
21C218252201 Frigidaire Refrigerator Screw
22215774901 Frigidaire Refrigerator Button Plug
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35BRACKET-CTR HINGE, BISQUE
35A240336802 Frigidaire Refrigerator Hinge Spacer
36241708002 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER
38240313703 Frigidaire Refrigerator Hinge
40WCI 240354403
415304509705 Frigidaire Refrigerator Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
56240516502 Frigidaire Refrigerator Lower Hinge Pin
585304455651 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 240368206
74WCI 240354301
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89241733911 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
1145309918806 Frigidaire Refrigerator Light Switch Door
