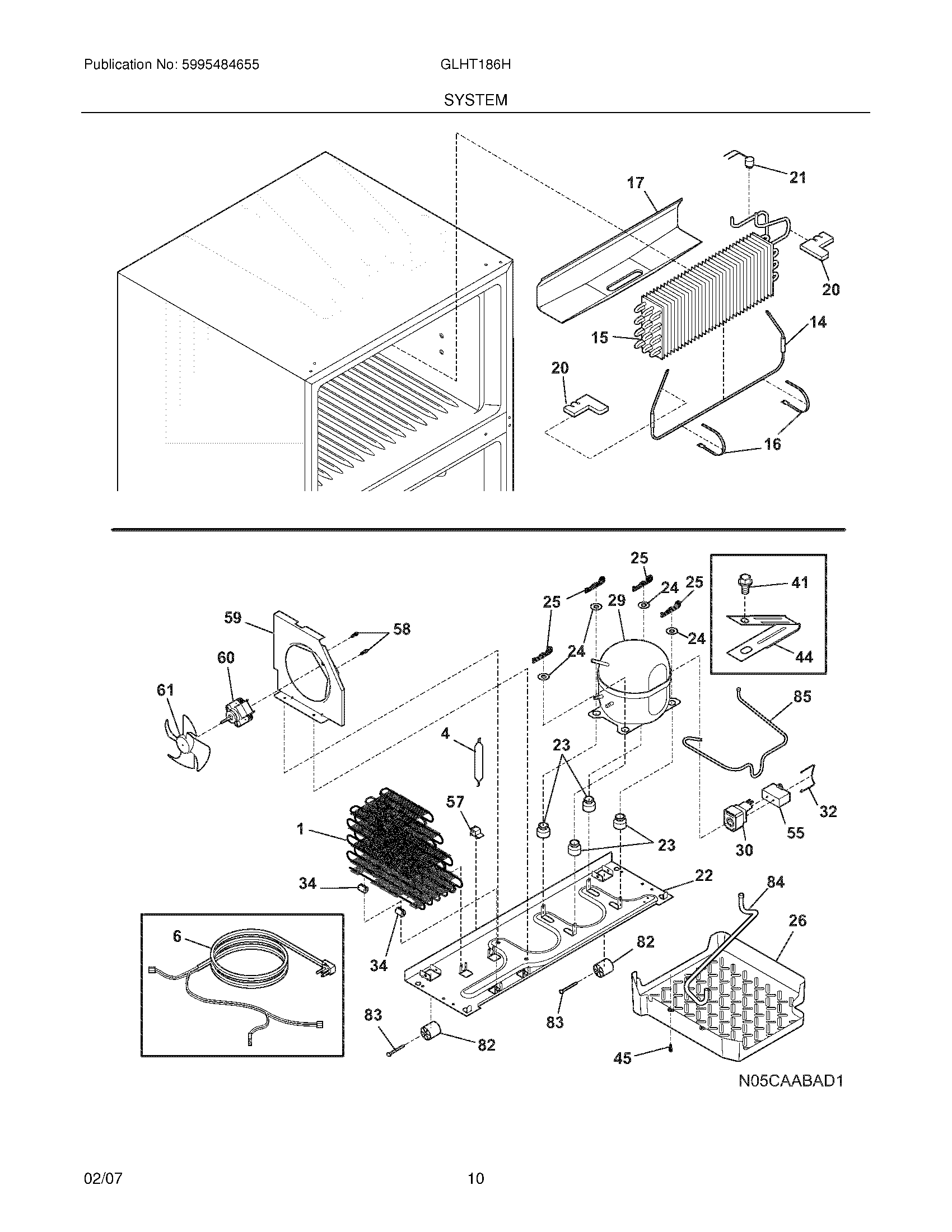

GLHT186HK0 09 – SYSTEM

Products

Position	Product
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	218252201 Frigidaire Refrigerator Screw
NI	WCI 5303918222
NI	Wiring Harness,freezer section ,with light
NI	WCI 241566801
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	5304472169 Frigidaire Refrigerator Condenser Kit
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240496101
14	240356221 Frigidaire Refrigerator Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	241527805 Frigidaire Refrigerator Starter
32	241544101 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5304430246
60	CONDENSER FAN MOTOR KIT
61	240524102 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	241856901 Frigidaire Refrigerator Tube-Connector
