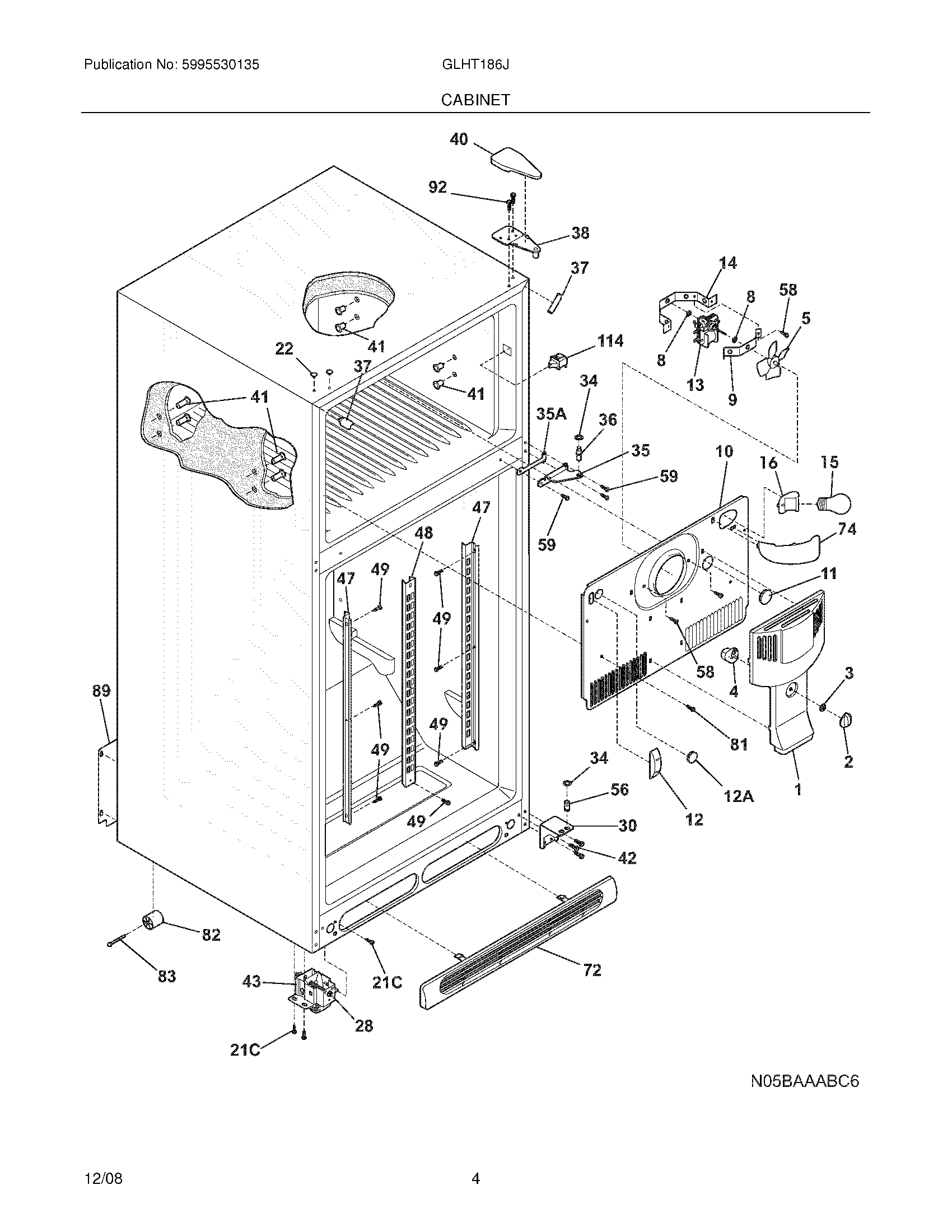

GLHT186JB2 05 – CABINET

GLHT186JB2 05 – CABINET

Written by

in

GLHT186JB2 05 – CABINET

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	215474201 Frigidaire Refrigerator Washer
NI	241500305 Frigidaire Refrigerator Screw
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	240494001 Frigidaire Refrigerator Plug Button
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 241652213
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
12A	241586701 Frigidaire Refrigerator Plug
13	241854501 Frigidaire Refrigerator Evaporator Motor Fan
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	5304511738 Frigidaire Refrigerator Light Bulb
16	218906802 Frigidaire Light Lamp Socket
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
35A	240336803 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5303918607 Frigidaire Refrigerator Corner Cabinet Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354404 Frigidaire Refrigerator Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
47	WCI 218233301
48	WCI 241566901
49	218362501 Frigidaire Refrigerator Screw
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839407 Frigidaire Refrigerator Kickplate/Grille
74	WCI 240354302
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	241554901 Frigidaire Refrigerator Light/Lamp Switch
