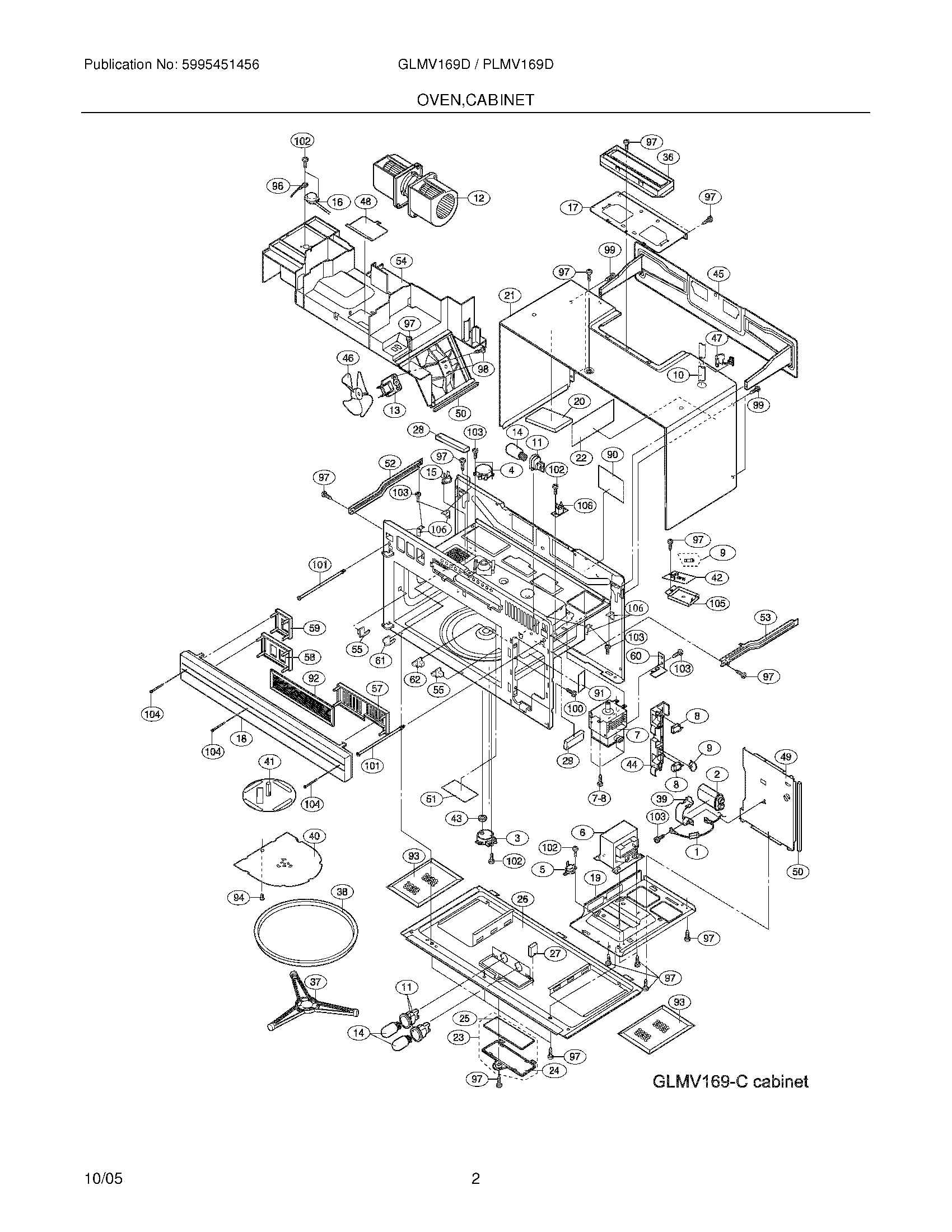

GLMV169DSC 03 – OVEN/CABINETadmin2025-04-26T10:14:42+00:00GLMV169DSC 03 – OVEN/CABINET
Products
| Position | Product |
|---|
| 1 | 5304468869 Frigidaire Microwave Rectifier |
| 2 | 5304470539 Frigidaire Microwave Capacitor |
| 3 | 5304440021 Frigidaire Microwave Oven Turntable Drive Motor |
| 4 | WCI 5304448489 |
| 5 | 5304440023 Frigidaire Microwave Thermal Cutout |
| 6 | WCI 5304440024 |
| 7 | 5304463439 Frigidaire Microwave Magnetron Assembly |
| 8 | 5304493153 Frigidaire Microwave Door Switch |
| 9 | 5303319559 Frigidaire Microwave Fuse and Switch Kit |
| 10 | 5304440028 Frigidaire Microwave Power Cord |
| 11 | 5303319561 Frigidaire Microwave Lamp Socket |
| 12 | WCI 5304440029 |
| 13 | 5304493152 Frigidaire Microwave Motor |
| 14 | 5304440031 Frigidaire Microwave 20W 125V Medium Light Bulb |
| 15 | WCI 5304440032 |
| 16 | Sensor,humidity ,cook control |
| 17 | WCI 5304440232 |
| 18 | WCI 5304440234 |
| 19 | Base,transformer ,right side |
| 20 | WCI 5304440237 |
| 21 | Cabinet,outer casing ,white |
| 22 | WCI 5304451803 |
| 23 | Lens/Frame Assy,lamp ,white |
| 24 | Frame,lens holder ,white |
| 25 | WCI 5303319575 |
| 26 | WCI 5304451824 |
| 27 | WCI 5304441368 |
| 28 | WCI 5304441369 |
| 29 | WCI 5304441370 |
| 36 | 5304464343 Frigidaire Microwave Assembly Damper |
| 37 | 5304467717 Frigidaire Microwave Glass Tray Support |
| 38 | 5304440285 Frigidaire Microwave Glass Tray |
| 39 | WCI 5303319587 |
| 40 | WCI 5304440286 |
| 41 | WCI 5304440287 |
| 42 | 5304492543 Frigidaire Microwave Electronic Noise Filter |
| 43 | WCI 5304440288 |
| 44 | WCI 5304440289 |
| 45 | 5304468135 Frigidaire Microwave Bracket |
| 46 | WCI 5304440291 |
| 47 | WCI 5303319605 |
| 48 | WCI 5304440292 |
| 49 | WCI 5304440293 |
| 50 | WCI 5304440294 |
| 51 | WCI 5304440295 |
| 52 | WCI 5304451826 |
| 53 | WCI 5304451827 |
| 54 | WCI 5304451828 |
| 55 | WCI 5304440299 |
| 57 | WCI 5304440301 |
| 58 | WCI 5304440302 |
| 59 | WCI 5304440303 |
| 60 | WCI 5304440304 |
| 61 | 5304467762 Frigidaire Microwave Support |
| 62 | WCI 5304441372 |
| 78 | 5303319568 Frigidaire Microwave Grease Filter Aluminum |
| 90 | 5304440333 Frigidaire Label |
| 91 | 5304440334 Frigidaire Microwave Label |
| 92 | 5304440335 Frigidaire Charcoal Filter |
| 94 | 5304467773 Frigidaire Microwave Clip |
| 96 | WCI 5304440339 |
| 98 | WCI 5303319637 |
| 99 | 5304451553 Frigidaire Microwave Screw |
| 100 | 5303319641 Frigidaire Screw |
| 101 | WCI 5304440341 |
| 102 | WCI 5303319633 |
| 103 | WCI 5303319636 |
| 104 | Screw,vent grille ,white |
| 105 | WCI 5303322975 |
| 106 | 5303319550 Frigidaire Microwave Fuse |
