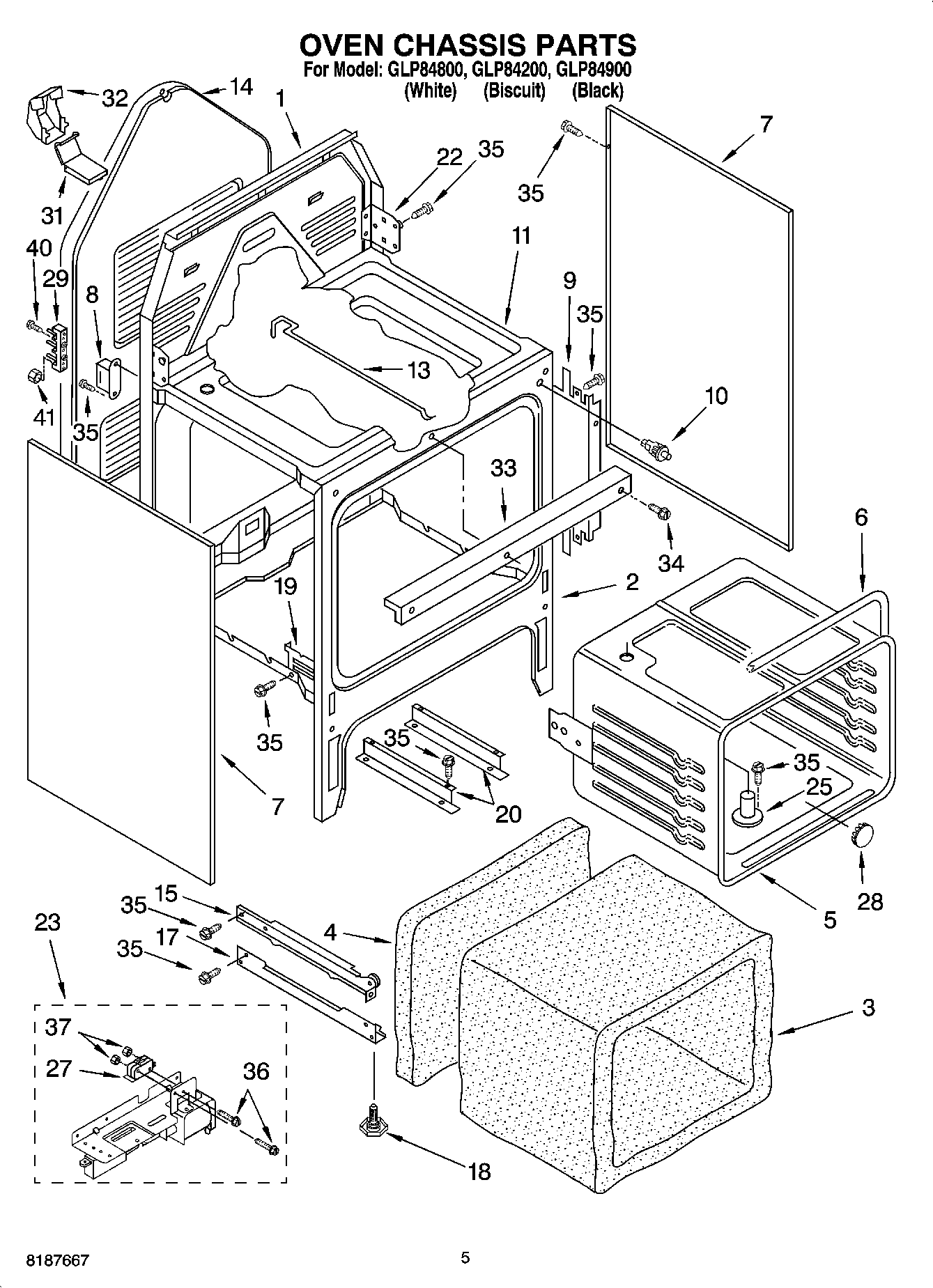

GLP84800 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
7	Body, Side (Black)
7	Body, Side (Biscuit)
8	Ballast
9	Shield, Insulation
10	Door Switch (Oven Light)
11	Burner Box
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly
25	Vent Tube
27	Switch, Interlock
28	Button, Plug
29	WP8203546 Whirlpool Terminal Block
31	Cover, Vent
32	Back, Vent
33	Guard, Wire
34	Screw
35	WP4159387 Whirlpool Compactor Screw
36	Screw, (2)
37	Nut (2)
40	Screw, (2) 10-16 x 1
41	WP112432 Whirlpool Nut Assembly
