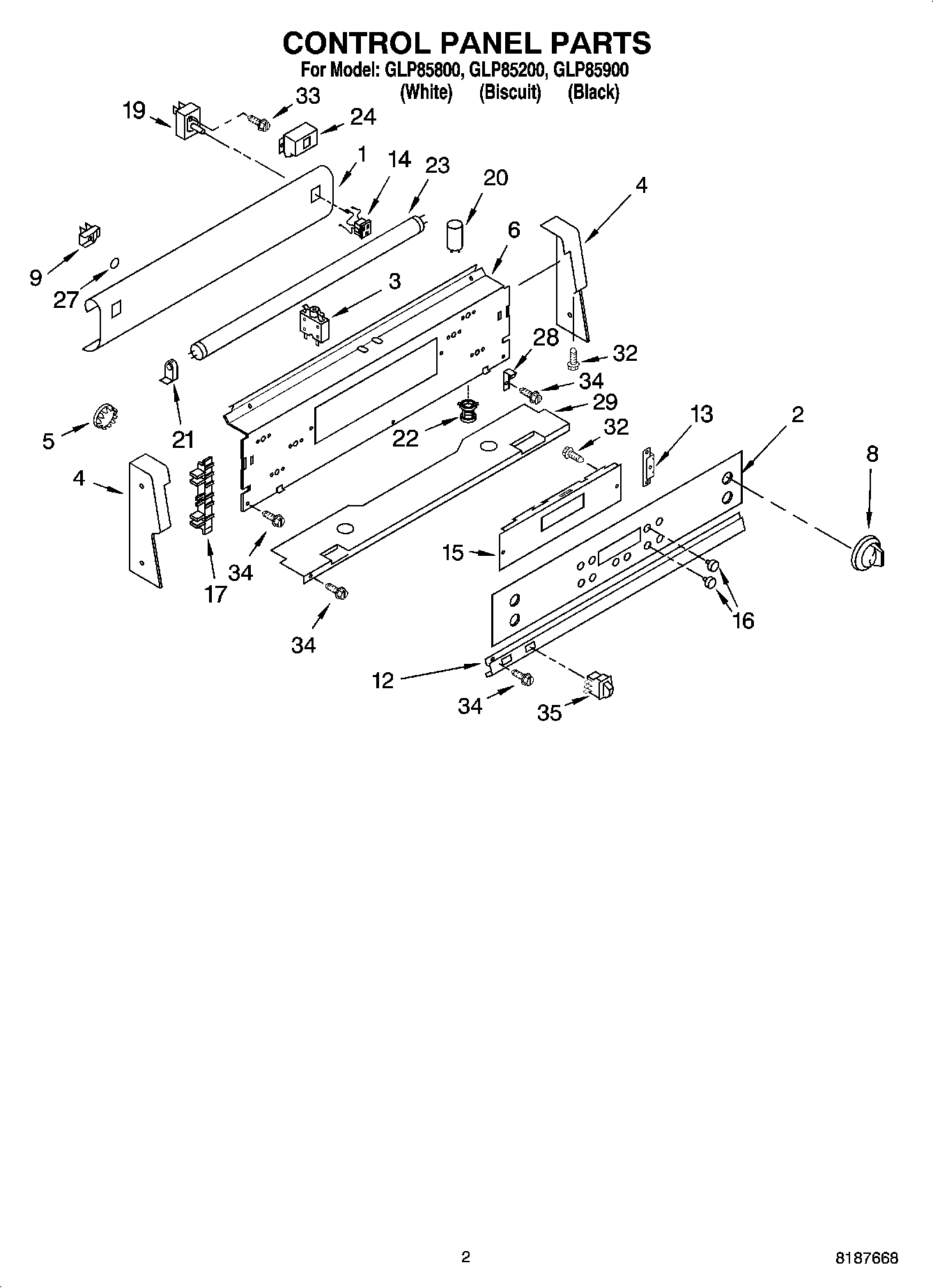

GLP85900 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover (Black)
1	Lamp Cover (White)
1	Lamp Cover (Biscuit)
2	Console-Glass (Black (Control Panel))
2	Console-Glass (Control Panel)
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Black, Left)
4	End Cap (Left)
4	End Cap (Right)
4	End Cap (Biscuit Right)
4	End Cap (Biscuit Left)
4	End Cap (Black, Right)
5	Button Plug (8 mm (2))
6	Panel, Control
6	Spacer, Timer
8	Knobs, Control (4) (Biscuit)
8	Knobs, Control (4) (Black)
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
12	Trim Strip (Biscuit)
12	Trim Strip (Black)
12	Trim Strip
13	WPL 9753304
14	Outlet, Untimed (2) (Black)
14	Outlet, Untimed (2) (Biscuit)
14	Outlet, Untimed (2) (White)
15	Timer
16	Knob, Timer (17) (Black)
16	Knob, Timer (17) (Biscuit)
16	Knob, Timer (17) (White)
17	Insert (2) (Black)
17	Insert (2) (Biscuit)
17	Insert (2) (White)
19	WP9750643 Whirlpool Infinite Switch
19	Infinite Switch (1800W)
19	Switch, Dual
20	Starter, Light
21	Lampholder (2)
22	Starter, Holder
23	WPL 9755491
24	Box, Outlet
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	Base, Console
32	WP4159387 Whirlpool Compactor Screw
33	WP3400882 Whirlpool Screw
34	WP3400832 Whirlpool Screw
35	Switch, Oven Light
35	Switch, Rocker
35	Switch, Oven Light
35	Insulation, Control Panel
