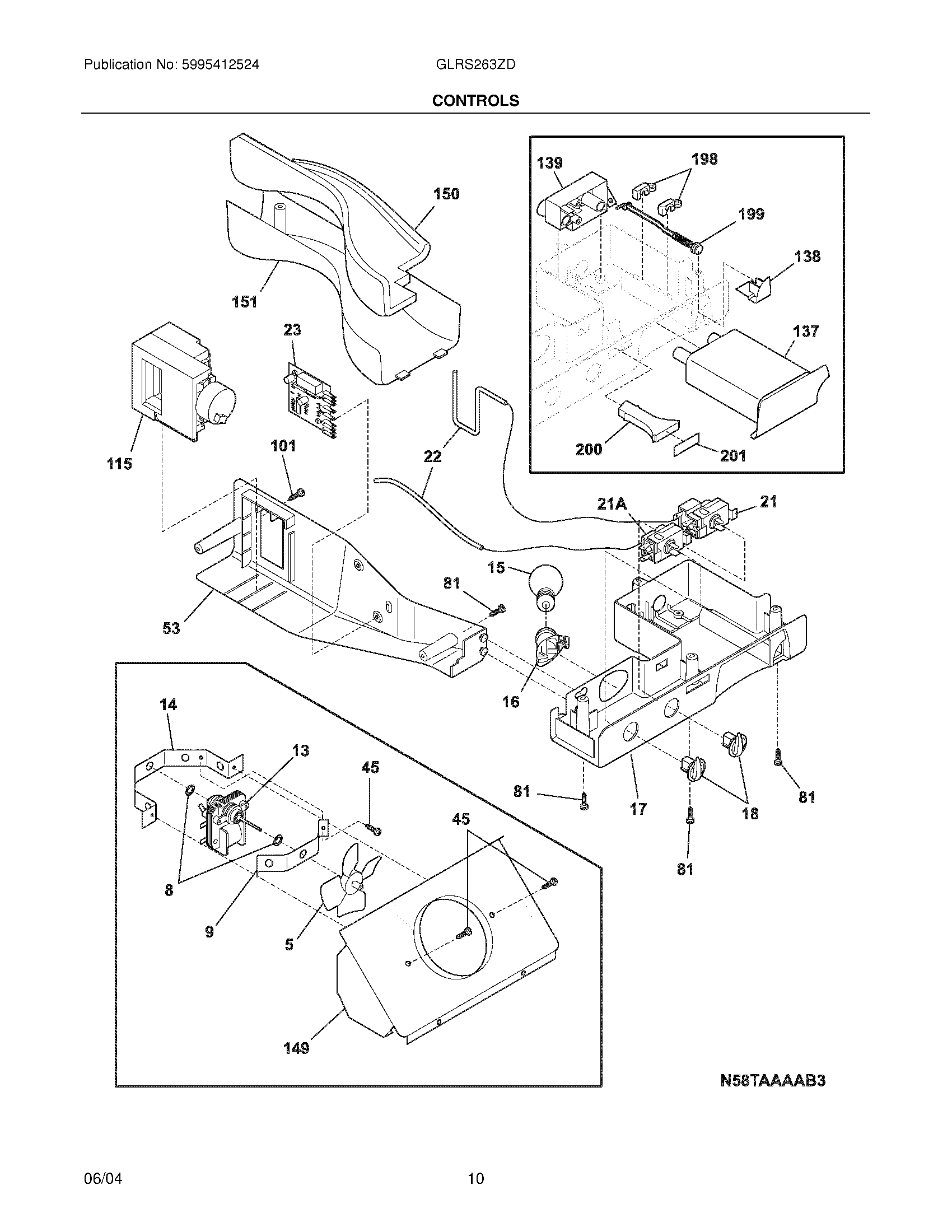

GLRS263ZDQ0 11 – CONTROLS

GLRS263ZDQ0 11 – CONTROLS

Written by

in

GLRS263ZDQ0 11 – CONTROLS

Products

PositionProduct
NIWCI 241537802
NI3205266 Frigidaire Refrigerator Edge Protector
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
13EVAP MOTOR KIT
14240438003 Frigidaire Refrigerator Bracket & Bushing
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 240317701
18Knob-control
21A5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
21241537104 Frigidaire Refrigerator Thermostat
22218660704 Frigidaire Refrigerator Tube-Insulator
23WCI 241508001
455304455651 Frigidaire Refrigerator Screw
53240369501 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101218493101 Frigidaire Refrigerator Screw
115241600902 Frigidaire Refrigerator Damper Control Assembly
137WATER FILTER PURESOURCE 2
138WCI 240397301
139240396002 Frigidaire Refrigerator Primary Base Water Filter
139240527001 Frigidaire Refrigerator O-Ring N
1495304444980 Frigidaire Refrigerator Fan Orifice Shroud
150WCI 240394204
151WCI 240373806
198240397401 Frigidaire Refrigerator Retainer Assembly
199240398401 Frigidaire Refrigerator Filter Release Spring
199WCI 240397501
200WCI 240397601
201WCI 240398509
