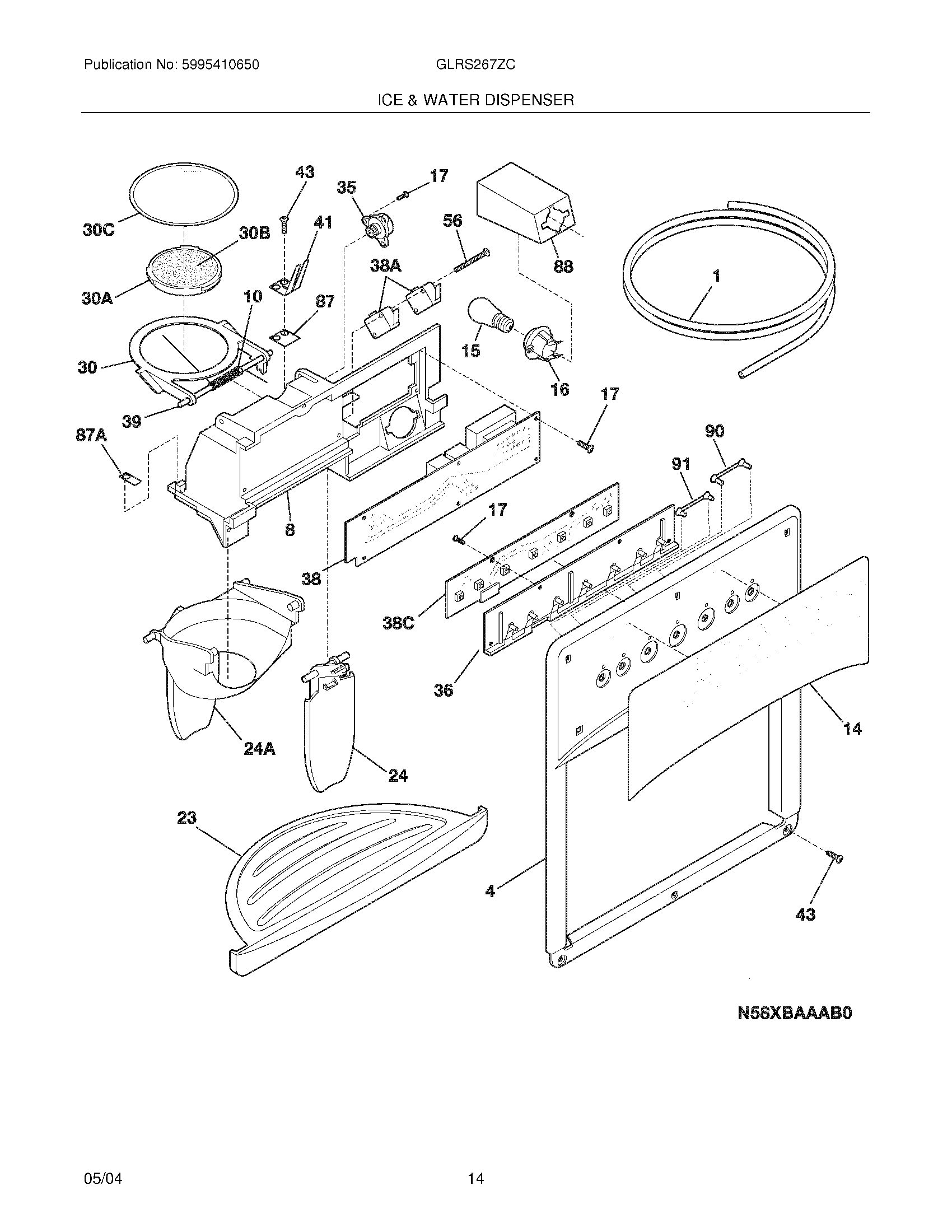

GLRS267ZCW2 15 – ICE & WATER DISPENSER

GLRS267ZCW2 15 – ICE & WATER DISPENSER

Written by

in

GLRS267ZCW2 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NIWCI 218976907
NI5304453707 Frigidaire Oven Screw
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NIWCI 5304426535
1218976409 Frigidaire Refrigerator Water Tube
4WCI 5304421822
8WCI 5304422030
10241688901 Frigidaire Refrigerator Torsion Spring
14240323974 Frigidaire Refrigerator Cover-Module Label
15Light Bulb/Lamp
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
24241682001 Frigidaire Actuator Lever
24A241681901 Frigidaire Refrigerator Ice Actuator
30C241688701 Frigidaire Refrigerator Door Seal
30A241688501 Frigidaire Refrigerator Door Center
30B241688601 Frigidaire Refrigerator Door Insulation
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
36WCI 5304421824
38CWCI 5304430811
38WCI 5304431764
38A241689106 Frigidaire Refrigerator Micro Switch
38CWCI 5304431856
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296300
56241689201 Frigidaire Refrigerator Screw-Micro Switch
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
88WCI 5304421615
90WCI 5304421831
91WCI 5304421850
