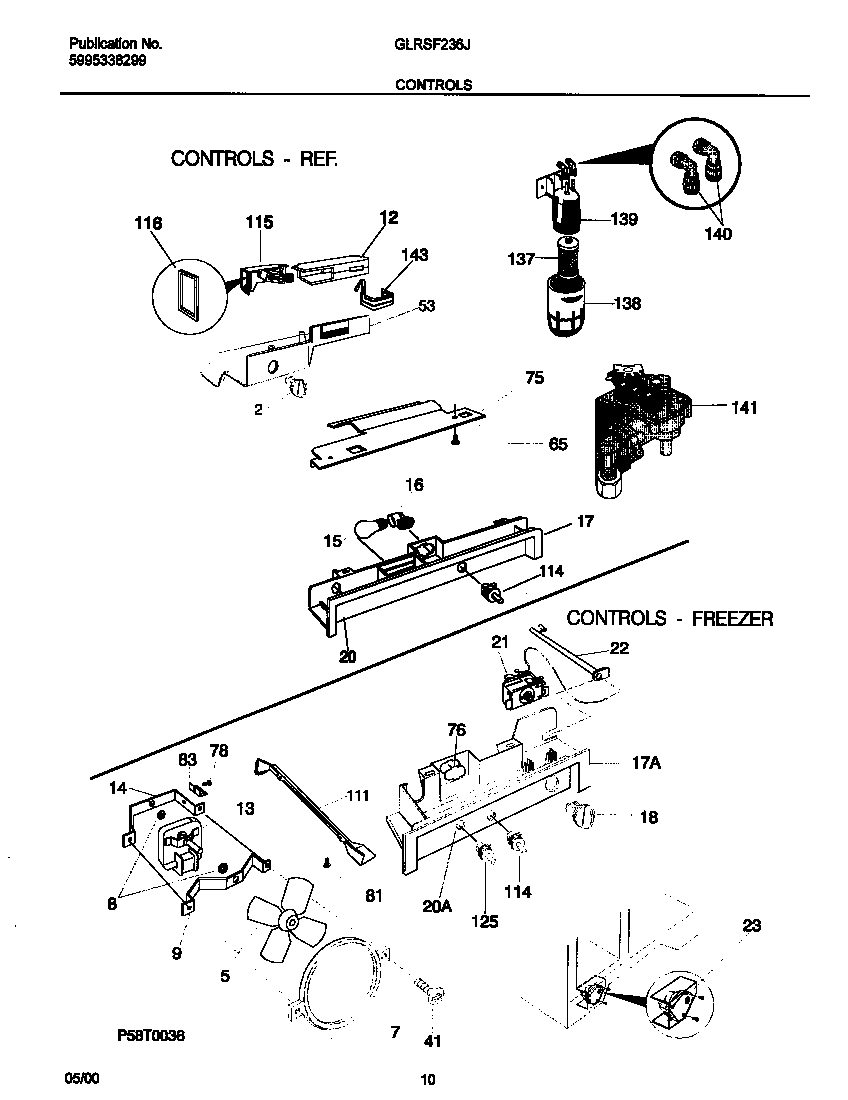

GLRSF236JB0 06 – CONTROLSadmin2025-04-26T10:07:43+00:00GLRSF236JB0 06 – CONTROLS
Products
| Position | Product |
|---|
| *94908 | 5304455649 Frigidaire Refrigerator Screw |
| *94911 | WIRING HARNESS,FILTER HEATER |
| *94906 | WCI 218731102 |
| *94909 | SHIELD-DEFROST TIMR,BTM |
| *94907 | COVER-DEFROST TIMER, TOP |
| *94905 | 215474201 Frigidaire Refrigerator Washer |
| *94910 | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 2 | WCI 215028605 |
| 5 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 7 | RING-FAN ORIFICE |
| 8 | G187559 Frigidaire Refrigerator Bushing |
| 9 | WCI 5303205118 |
| 12 | WCI 215809600 |
| 13 | WCI 215426200 |
| 14 | BRACKET-MOTOR MTG, REAR |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 241559801 Frigidaire Light Socket Refrigerator |
| 17 | WCI 5303296805 |
| 17B | SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR |
| 17A | CONTROL BOX, FRZR |
| 18 | WCI 5303308568 |
| 20 | WCI 5304411663 |
| 20 | WCI 5303308611 |
| 21 | WCI 5303300027 |
| 22 | WCI 5303319683 |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 41 | 5308000039 Frigidaire Refrigerator Screw |
| 53 | WCI 215809512 |
| 65 | WCI 5303001361 |
| 75 | WCI 218465101 |
| 76 | WCI 218225800 |
| 78 | 5304455651 Frigidaire Refrigerator Screw |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 83 | WCI 5308000107 |
| 111 | WCI 5303289024 |
| 114 | 5303289051 Frigidaire Refrigerator Light Switch |
| 115 | WCI 215011505 |
| 116 | WCI 215011400 |
| 137 | WCI 215334201 |
| 138 | 240434401 Frigidaire Refrigerator Water Filter Cup Primary |
| 139 | WCI 218893201 |
| 140 | WCI 218518700 |
| 141A | 218832401 Frigidaire Water Inlet Valve |
| 141B | Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4 |
| 143 | WCI 218696700 |
