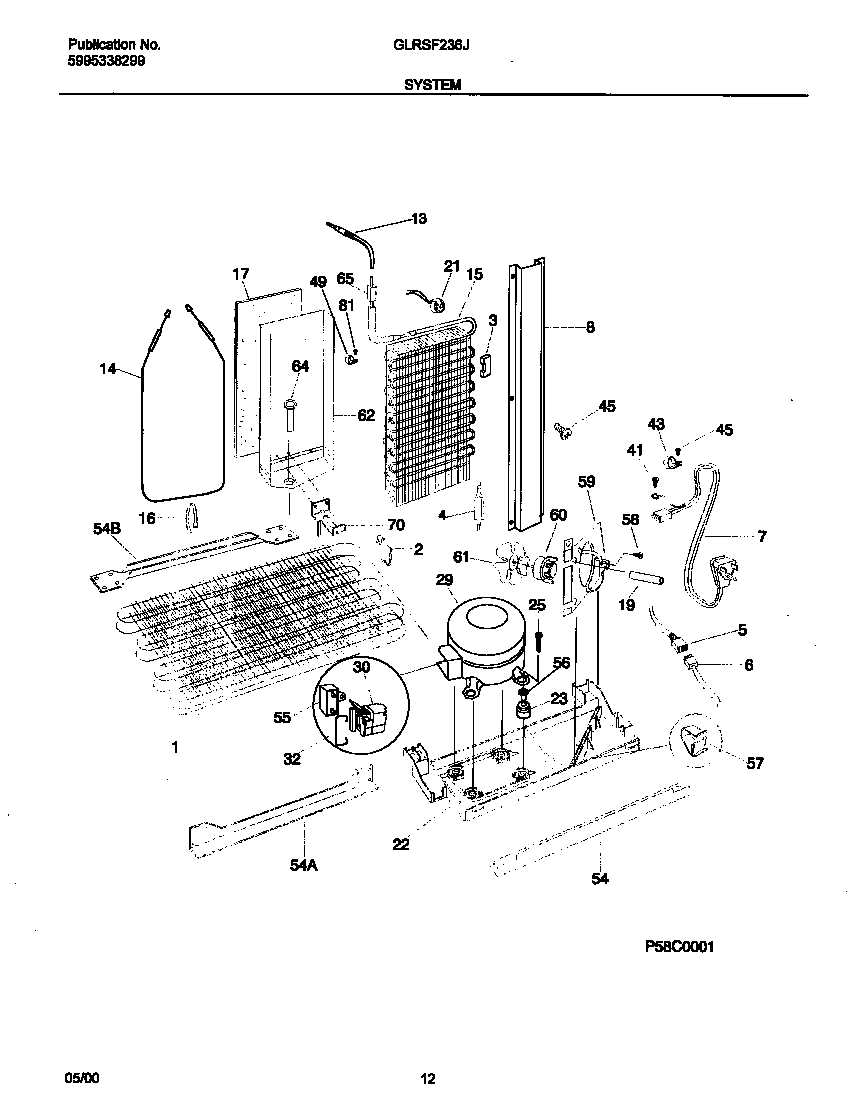

GLRSF236JW0 07 – SYSTEM

GLRSF236JW0 07 – SYSTEM

Written by

in

GLRSF236JW0 07 – SYSTEM

Products

PositionProduct
*94922WCI 215732700
*94925WCI 218956801
*94913SPACER TUBE
*949195308000133 Frigidaire Refrigerator Clamp
*94926HOT TUBE REPAIR KIT, SERVICE
*949215304455852 Frigidaire Refrigerator Screw
*94923WCI 218897001
*94917TUBE-INLET (NOT ILLUSTRATED)
*94920WCI 218769200
*94924WCI 218956701
*94916WIRING HARNESS,FRZR CONTROLS
*94914WCI 5304406721
*94915WIRING HARNESS,REFR CONTROLS
*94912SPACER-COND TUBE,BLACK
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289311
54WCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
