GLRSF236JW1 03 – REFRIGERATOR DOOR

GLRSF236JW1 03 – REFRIGERATOR DOOR

Written by

in

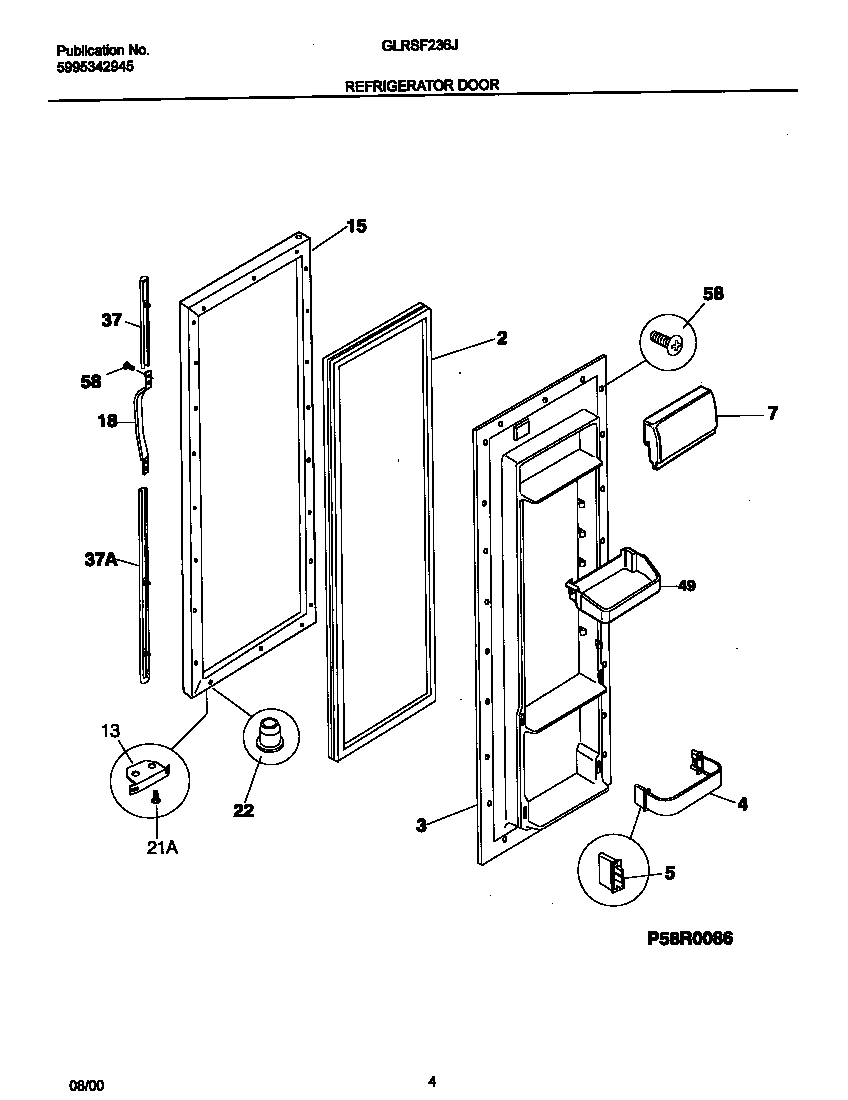

GLRSF236JW1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*67885INSULATION
*67883WCI 215008604
*67884TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734314
3WCI 215390401
4WCI 218807029
5WCI 5303288950
7WCI 5303304563
12WCI 218364004
13WCI 5303289522
15WCI 5303918156
18297311201 Frigidaire Freezer Door Handle
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37BWCI 218676003
37AWCI 215782300
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
49WCI 218592327
58218781101 Frigidaire Handle Screw
