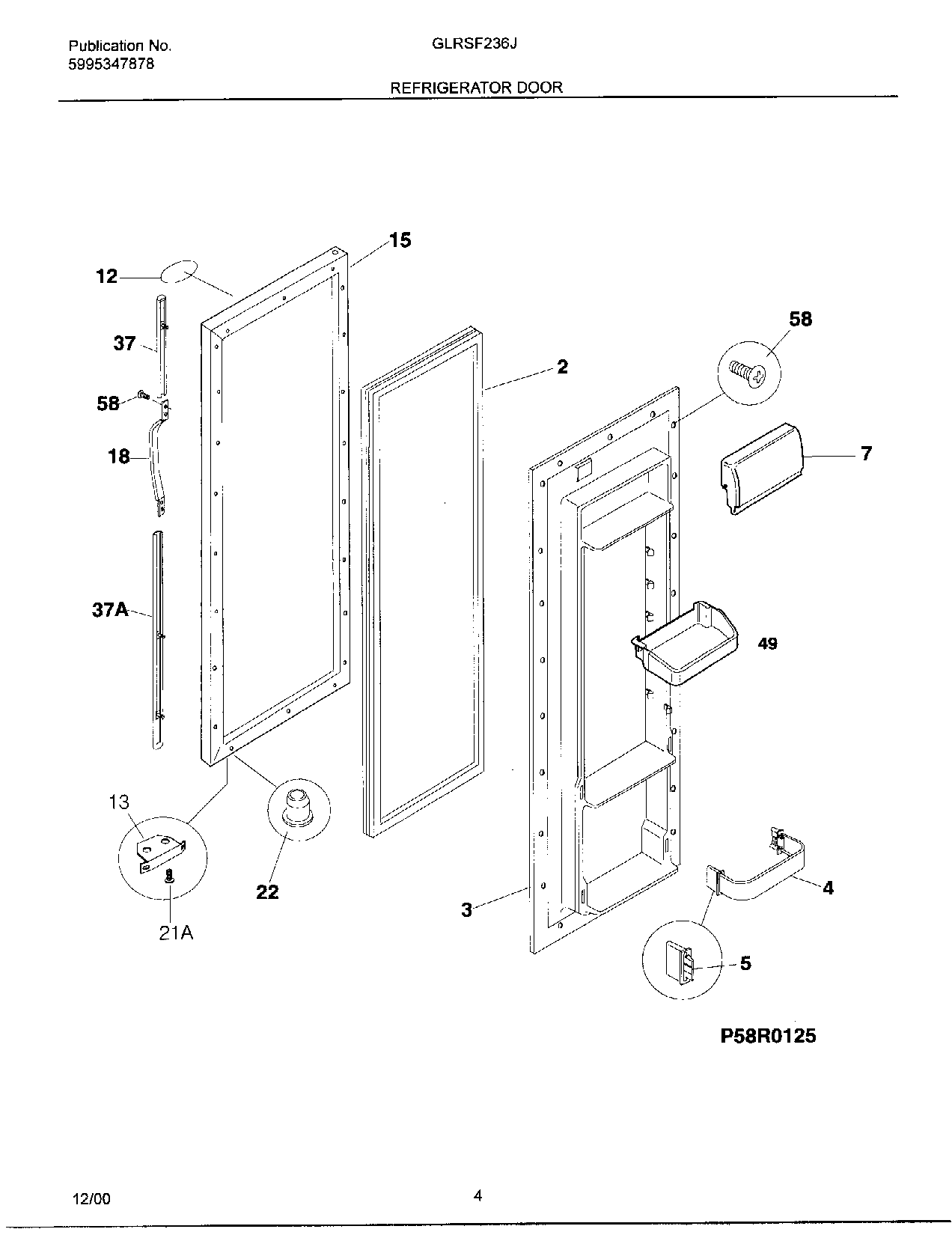

GLRSF236JW2 04 – REFRIGERATOR DOOR

GLRSF236JW2 04 – REFRIGERATOR DOOR

Written by

in

GLRSF236JW2 04 – REFRIGERATOR DOOR

Products

PositionProduct
NIINSULATION
NIWCI 215008606
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
NILABEL-NAMEPLATE,ALMOND
NIWCI 215008604
2WCI 215734324
2WCI 215734314
3WCI 215390401
4WCI 218807029
5WCI 5303288950
7WCI 5303304563
12WCI 218364006
12WCI 218364004
12WCI 218364005
13WCI 5303289522
15WCI 5303918173
15WCI 5303918158
15WCI 5303918156
18WCI 218762703
18WCI 218762704
18297311201 Frigidaire Freezer Door Handle
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37WCI 218811628
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37AWCI 218676003
37AWCI 215782300
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37ATRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37ATRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37AWCI 218811627
49WCI 218592327
58218781101 Frigidaire Handle Screw
