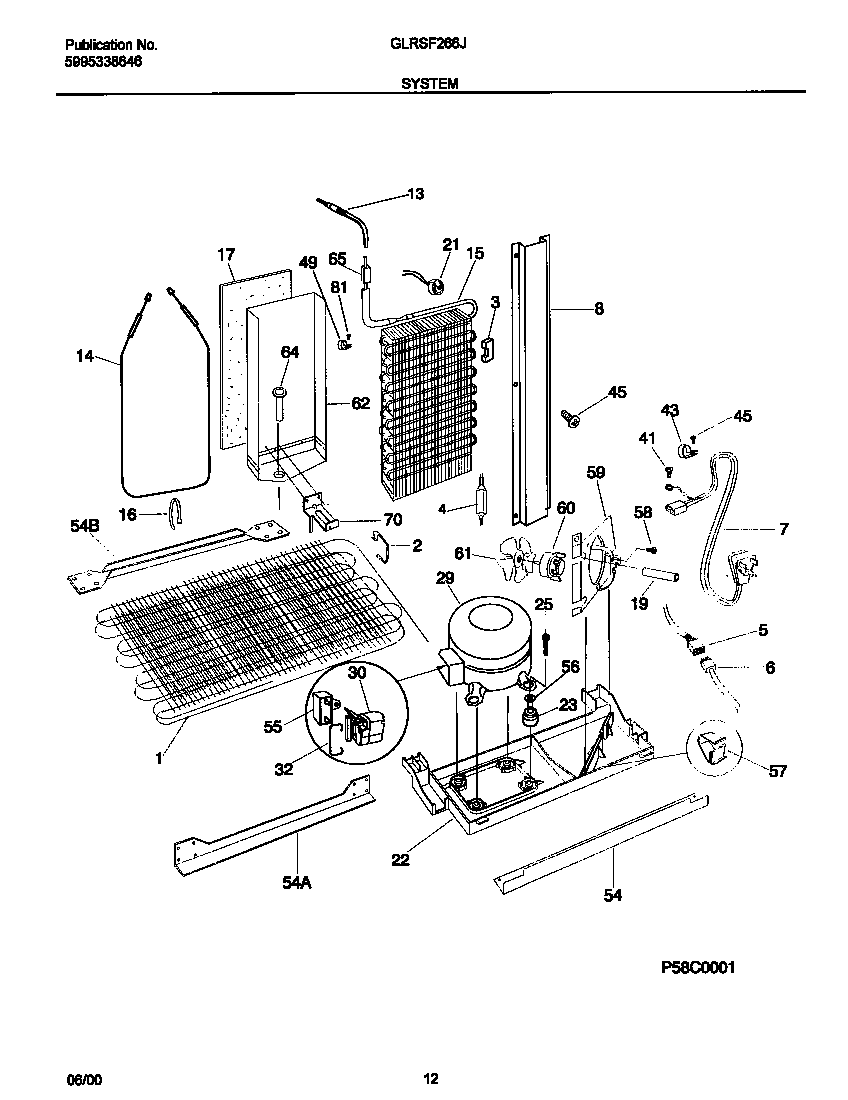

GLRSF266JB0 07 – SYSTEM

GLRSF266JB0 07 – SYSTEM

Written by

in

GLRSF266JB0 07 – SYSTEM

Products

PositionProduct
*88680WCI 218769200
*886785308000133 Frigidaire Refrigerator Clamp
*88673WCI 5304406721
*88676TUBE-INLET (NOT ILLUSTRATED)
*88674WIRING HARNESS,REFR CONTROLS
*88679SCREW,HEX HD SER WSHR ,8-18 X 0.375
*88675WIRING HARNESS,FRZR CONTROLS
*88671SPACER-COND TUBE,BLACK
*88672SPACER TUBE
*88685WCI 5303917166
*88682WCI 218897001
*88683WCI 215004700
*88684WCI 215004800
*886815304455852 Frigidaire Refrigerator Screw
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54AWCI 5303289311
54WCI 5303289292
54BWCI 215732700
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
