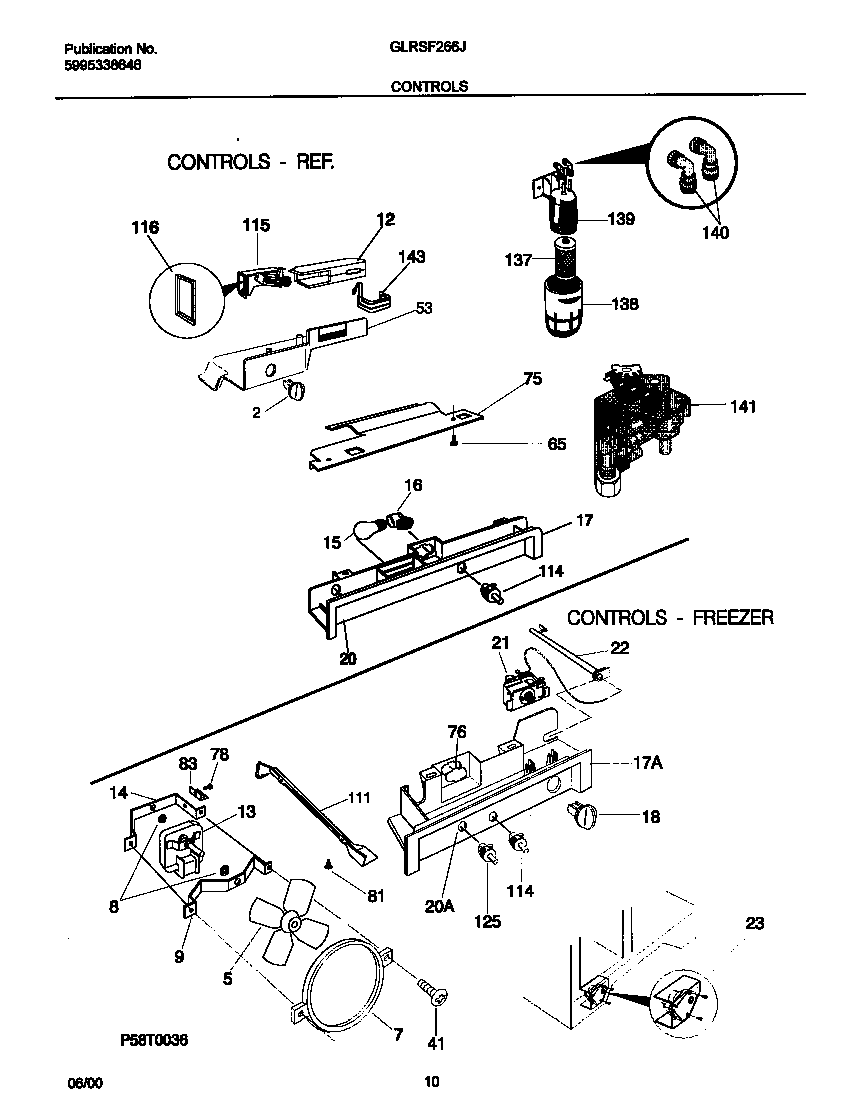

GLRSF266JD0 06 – CONTROLS

Products

Position	Product
*88668	5304455649 Frigidaire Refrigerator Screw
*88666	WCI 218731102
*88667	COVER-DEFROST TIMER, TOP
*88669	SHIELD-DEFROST TIMR,BTM
*88665	215474201 Frigidaire Refrigerator Washer
*88670	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2	WCI 215028605
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215809600
13	WCI 215426200
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17B	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17A	CONTROL BOX, FRZR
17	WCI 5303296805
18	WCI 5303308568
20	WCI 5304411663
20	WCI 5303308611
21	WCI 5303300027
22	WCI 5303319683
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
53	WCI 215809512
65	WCI 5303001361
75	WCI 218465101
76	WCI 218225800
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303297842
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011505
116	WCI 215011400
125	WCI 215334201
137	WCI 218904602
138A	240434401 Frigidaire Refrigerator Water Filter Cup Primary
138B	218904301 Frigidaire Refrigerator O-Ring Cup P1
139	WCI 218893201
140	WCI 218518700
141A	218832401 Frigidaire Water Inlet Valve
141B	Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143A	WCI 218696700
143B	WIRING HARNESS,FILTER HEATER
