GLRSF266JD2 05 – REFRIGERATOR DOOR

GLRSF266JD2 05 – REFRIGERATOR DOOR

Written by

in

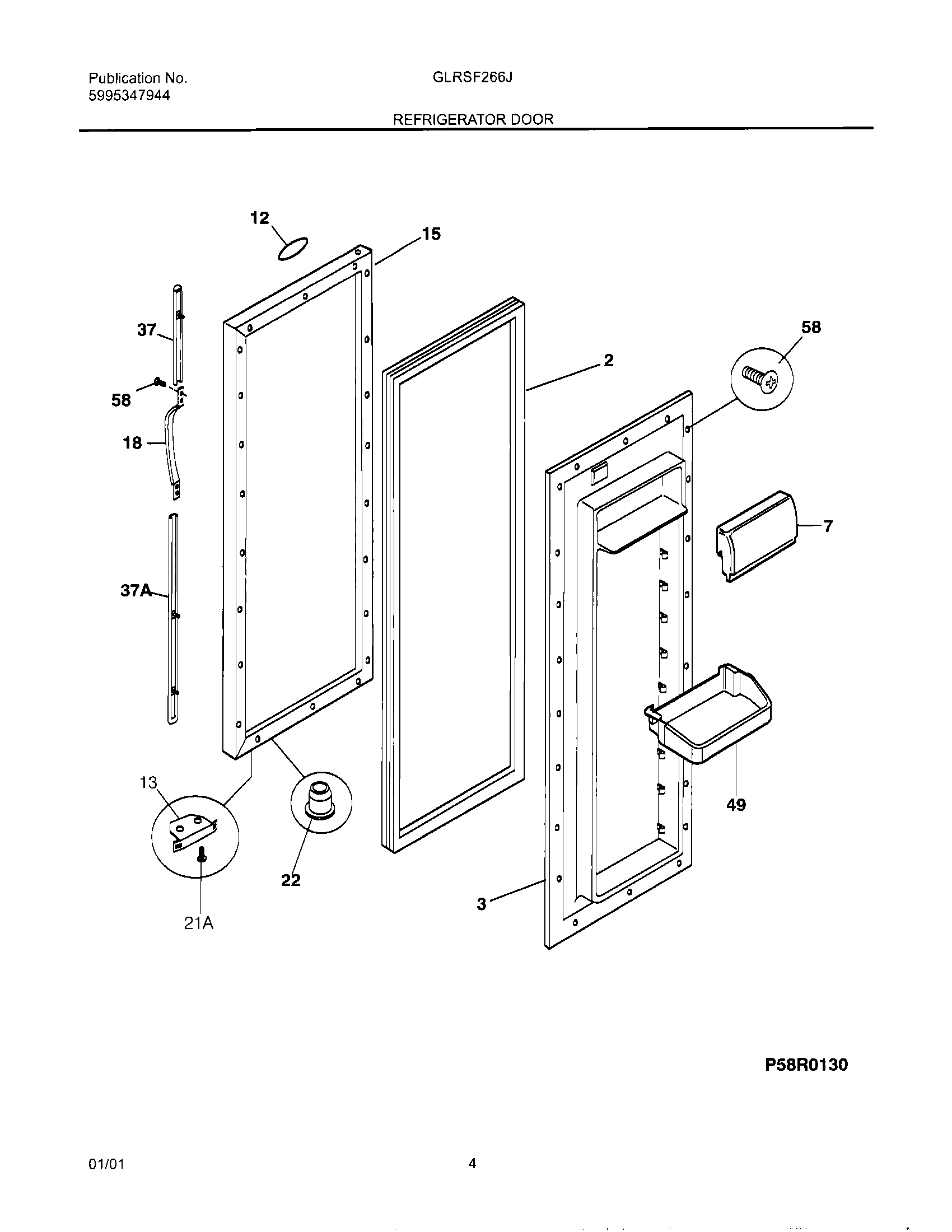

GLRSF266JD2 05 – REFRIGERATOR DOOR

Products

PositionProduct
NIINSULATION
NITAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
NILABEL-NAMEPLATE,ALMOND
2WCI 215734314
3WCI 215403201
7WCI 5303304563
12WCI 218364005
13WCI 5303289522
15WCI 5303918166
18WCI 218762704
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37WCI 218676003
37WCI 215782300
49WCI 218592325
58218781101 Frigidaire Handle Screw
