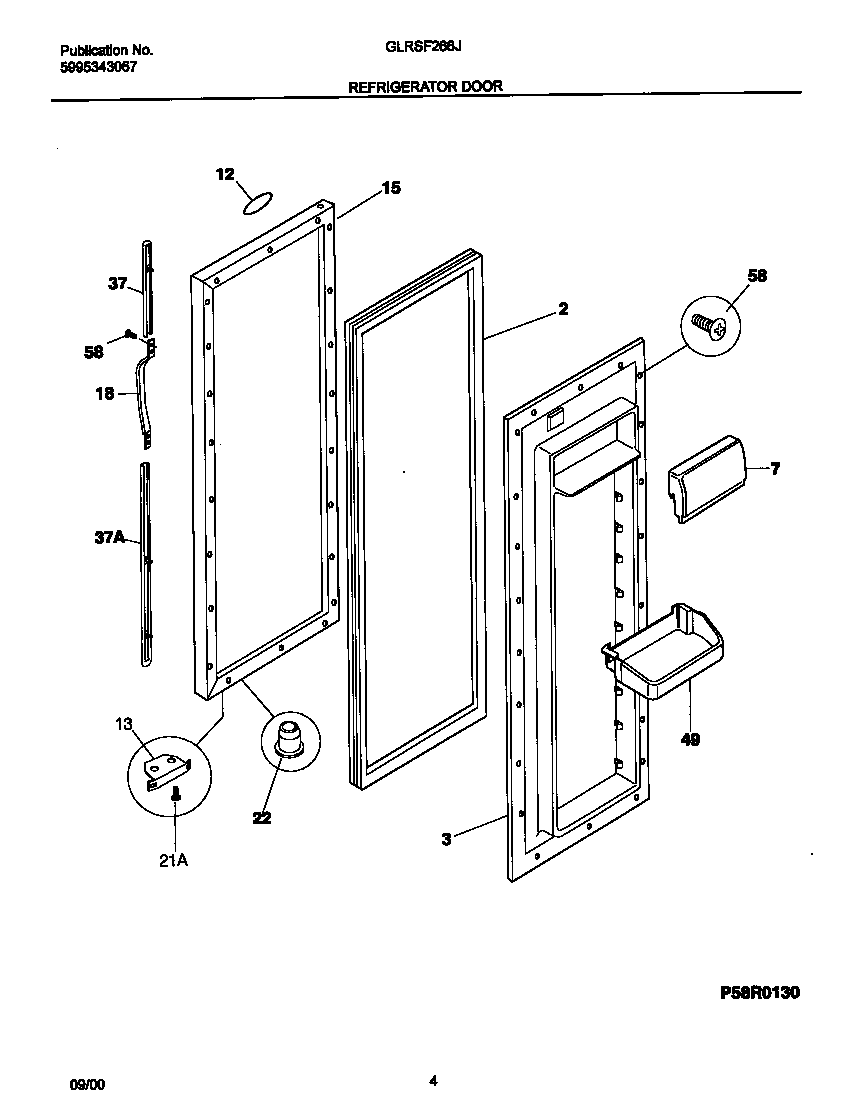

GLRSF266JW1 03 – REFRIGERATOR DOOR

GLRSF266JW1 03 – REFRIGERATOR DOOR

Written by

in

GLRSF266JW1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*98605INSULATION
*98601WCI 215008604
*98604TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734314
3WCI 215403201
7WCI 5303304563
12WCI 218364004
13WCI 5303289522
15WCI 5303918161
18297311201 Frigidaire Freezer Door Handle
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37BWCI 218676003
37AWCI 215782300
49WCI 218592325
58218781101 Frigidaire Handle Screw
