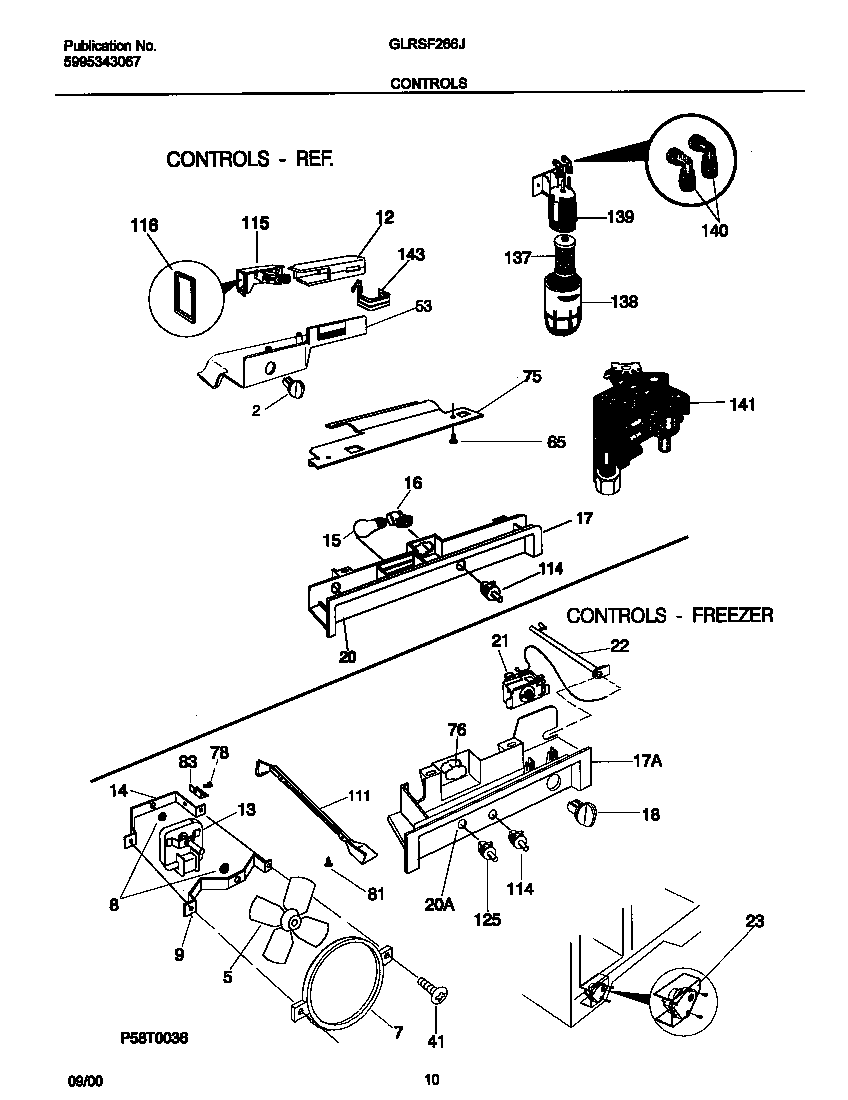

GLRSF266JW1 06 – CONTROLS

GLRSF266JW1 06 – CONTROLS

Written by

in

GLRSF266JW1 06 – CONTROLS

Products

PositionProduct
*986275304455649 Frigidaire Refrigerator Screw
*98630WIRING HARNESS,FILTER HEATER
*98625WCI 218731102
*98626COVER-DEFROST TIMER, TOP
*98628SHIELD-DEFROST TIMR,BTM
*98624215474201 Frigidaire Refrigerator Washer
*98629NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17WCI 5303296805
17ACONTROL BOX, FRZR
18WCI 5303308568
20WCI 5303308611
20WCI 5304411663
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809512
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
125WCI 215334201
137WCI 218904602
138A240434401 Frigidaire Refrigerator Water Filter Cup Primary
138B218904301 Frigidaire Refrigerator O-Ring Cup P1
139WCI 218893201
140WCI 218518700
141A218832401 Frigidaire Water Inlet Valve
141BScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143WCI 218696700
