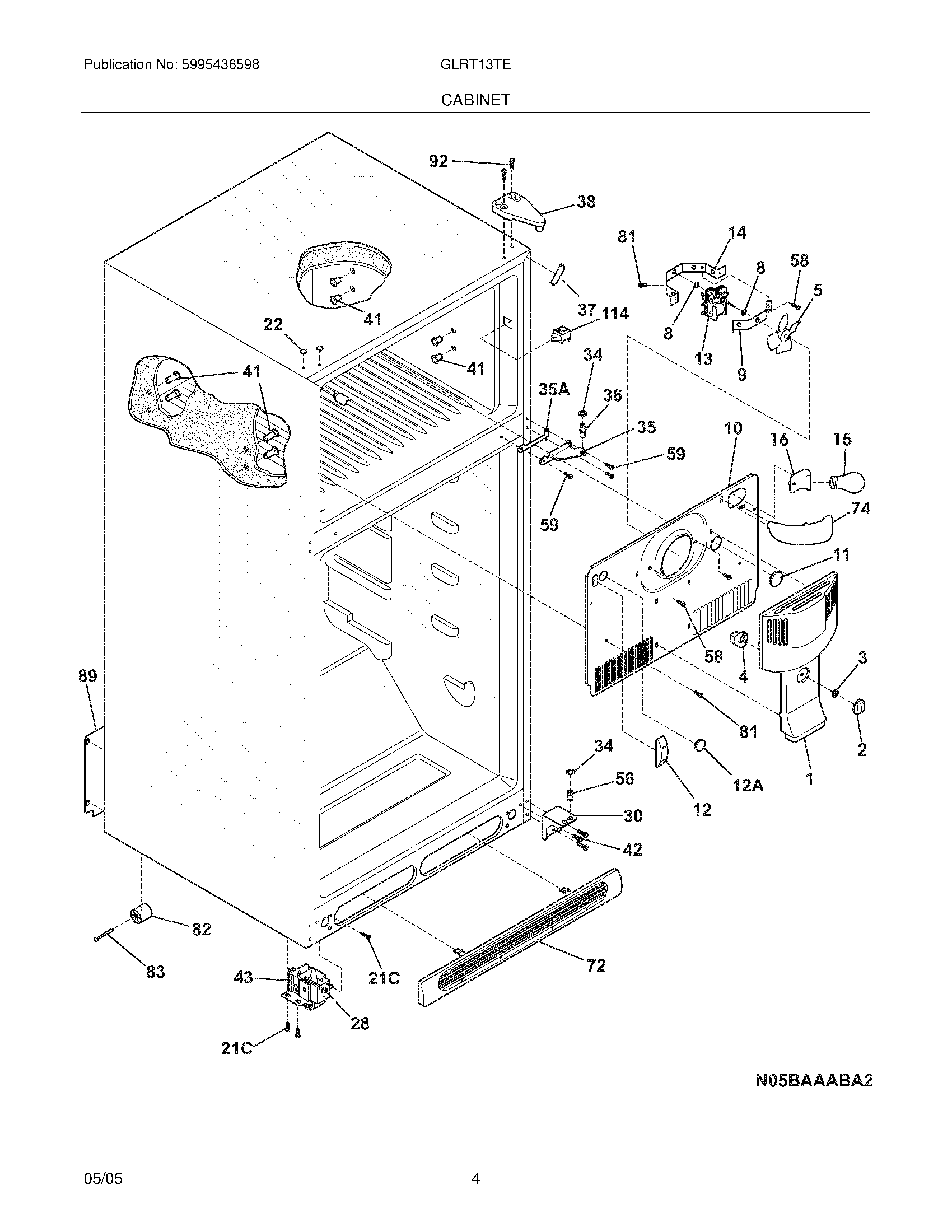

GLRT13TES1 05 – CABINET

GLRT13TES1 05 – CABINET

Written by

in

GLRT13TES1 05 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241953902 Frigidaire Refrigerator Screw
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	Wiring Harness,freezer section ,with light
NI	241500303 Frigidaire Refrigerator Screw
NI	240568606 Frigidaire Refrigerator Coil Cover Seal
NI	218990901 Frigidaire Clip
1	WCI 240355402
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240313609
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	241586701 Frigidaire Refrigerator Plug
12A	WCI 240374401
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	WCI 215812200
16	218906802 Frigidaire Light Lamp Socket
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240313703 Frigidaire Refrigerator Hinge
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839407 Frigidaire Refrigerator Kickplate/Grille
74	WCI 240354301
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	240505801 Frigidaire Light Switch
