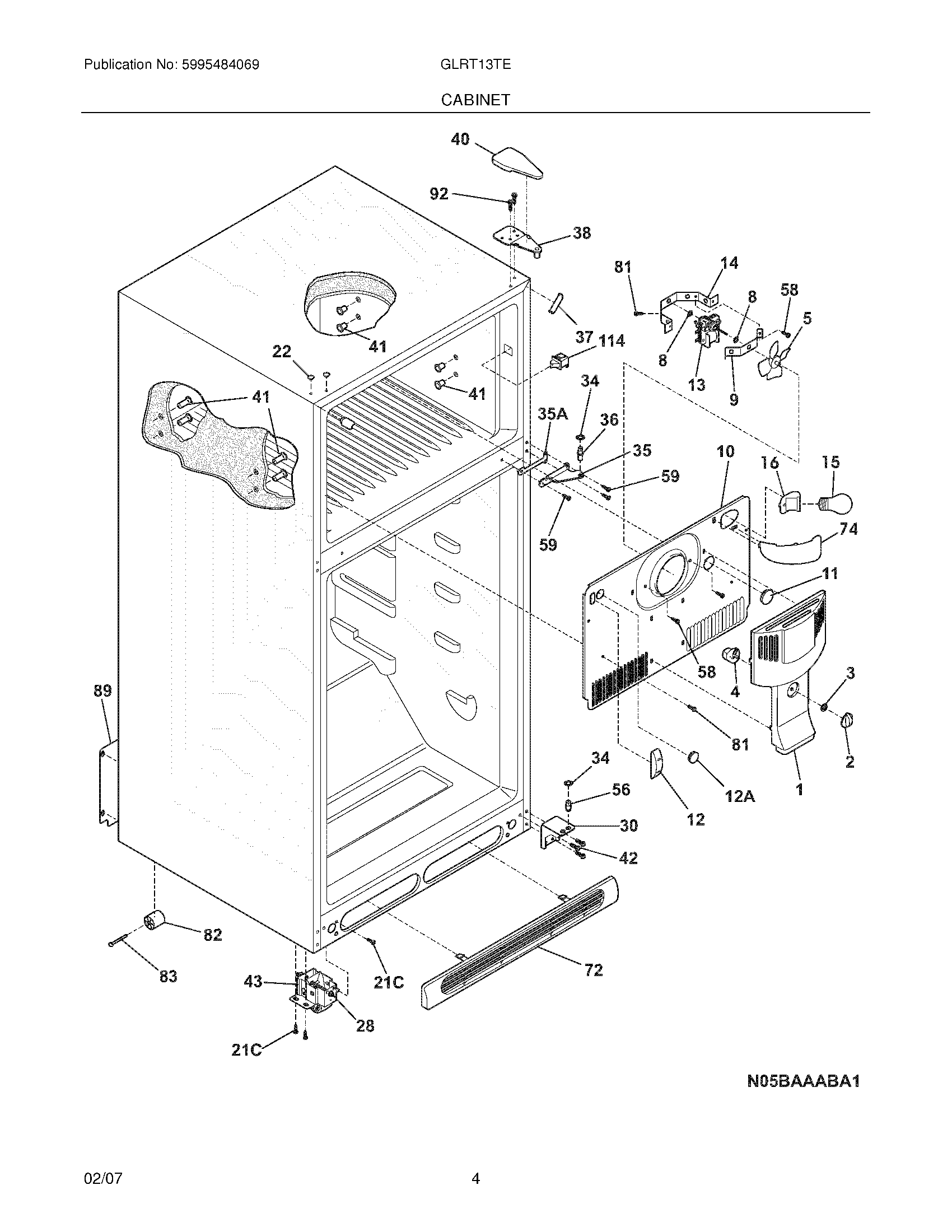

GLRT13TEW7 05 – CABINET

GLRT13TEW7 05 – CABINET

Written by

in

GLRT13TEW7 05 – CABINET

Products

PositionProduct
NI240433204 Frigidaire Refrigerator Screw
NI240494001 Frigidaire Refrigerator Plug Button
NI240568606 Frigidaire Refrigerator Coil Cover Seal
NI215474201 Frigidaire Refrigerator Washer
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NI241500303 Frigidaire Refrigerator Screw
NIWiring Harness,freezer section ,with light
1WCI 240355402
2240367001 Frigidaire Refrigerator Air Damper Control Knob
3Nut
4WCI 241523701
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 240313611
115303208309 Frigidaire Refrigerator Plug Hole
12A241586701 Frigidaire Refrigerator Plug
12AWCI 240374401
13EVAP MOTOR KIT
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
16218906802 Frigidaire Light Lamp Socket
21C218252201 Frigidaire Refrigerator Screw
22215774901 Frigidaire Refrigerator Button Plug
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35WCI 240313806
35A240336802 Frigidaire Refrigerator Hinge Spacer
36241708002 Frigidaire Refrigerator Center Hinge Pin
37242161201 Frigidaire Refrigerator Cabinet Corner Trim
38240313703 Frigidaire Refrigerator Hinge
40240354401 Frigidaire Upper Hinge Cover
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
56240516502 Frigidaire Refrigerator Lower Hinge Pin
58WCI 5304456287
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72241839405 Frigidaire Refrigerator Kickplate/Grille
74WCI 240354301
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89241733911 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
114240505801 Frigidaire Light Switch
