GLRT184TCB3 09 – SYSTEM

GLRT184TCB3 09 – SYSTEM

Written by

in

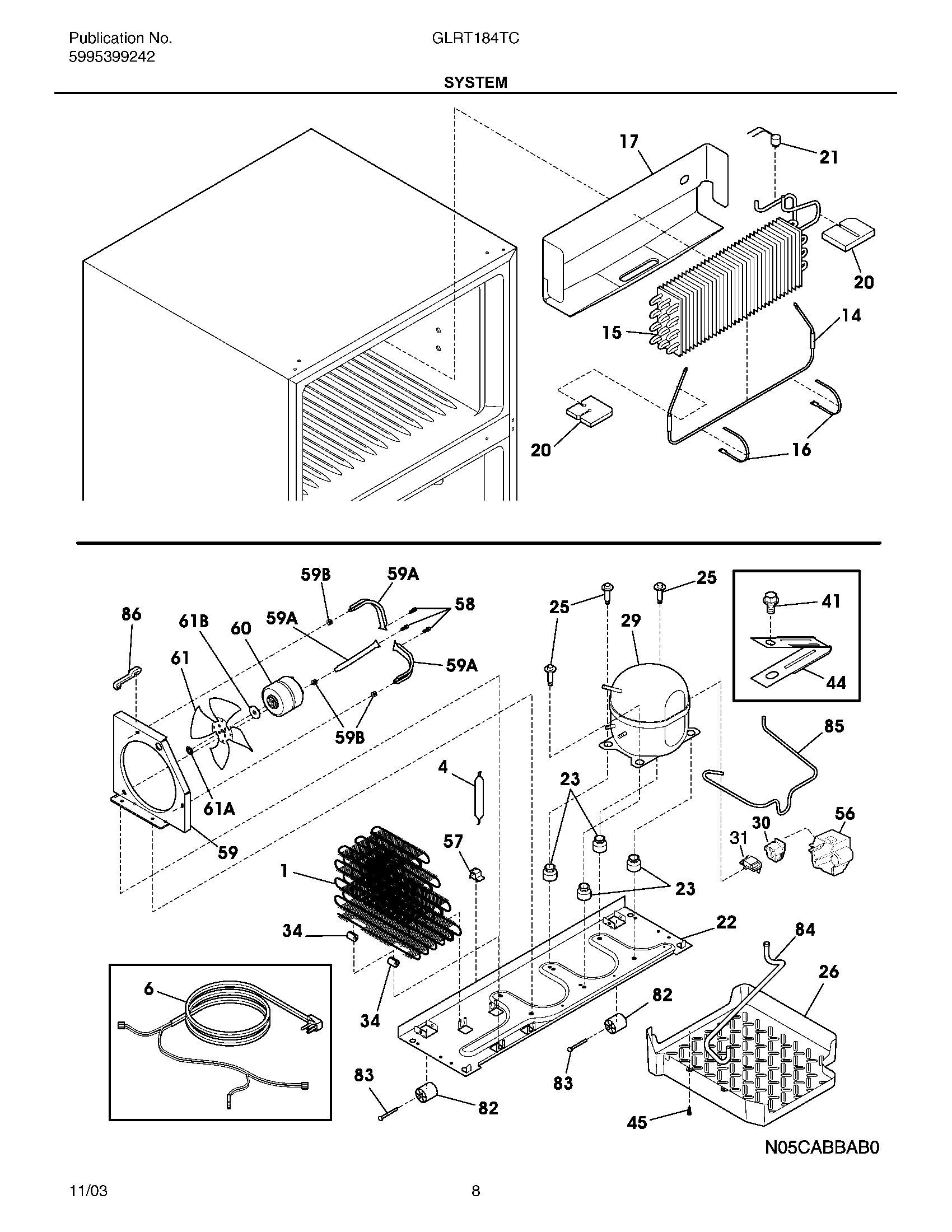

GLRT184TCB3 09 – SYSTEM

Products

PositionProduct
NIWCI 5303918222
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 240524801
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 240581801
NI3205266 Frigidaire Refrigerator Edge Protector
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240388701 Frigidaire Refrigerator Wiring Harness
NI218252201 Frigidaire Refrigerator Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
15304472169 Frigidaire Refrigerator Condenser Kit
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 240581701
145303918208 Frigidaire Defrost Heater Kit
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20WCI 240518402
215303918202 Frigidaire Refrigerator Defrost Thermostat
22WCI 240330001
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26241920605 Frigidaire Refrigerator Defrost Pan
29WCI 5303918297
305304433579 Frigidaire Refrigerator P-1 Relay
31216954208 Frigidaire Refrigerator Controller
34240405201 Frigidaire Refrigerator Grommet
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
56WCI 240582001
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 240315501
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
60CONDENSER FAN MOTOR KIT
61BWCI 215004800
61WCI 240315401
61AWCI 215004700
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 240493101
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
