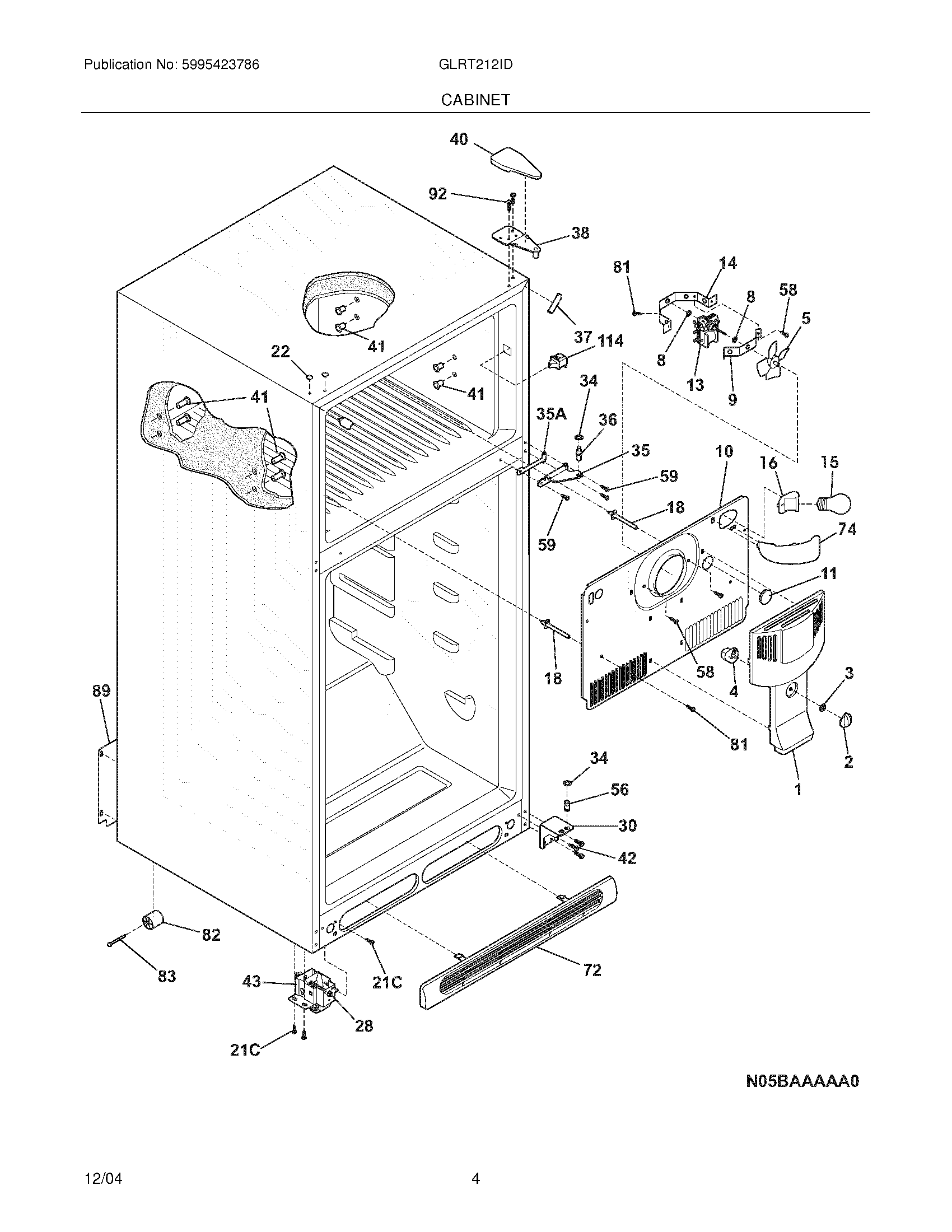

GLRT212IDQ3 05 – CABINET

GLRT212IDQ3 05 – CABINET

Written by

in

GLRT212IDQ3 05 – CABINET

Products

Position	Product
NI	241500303 Frigidaire Refrigerator Screw
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	241953902 Frigidaire Refrigerator Screw
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	Wiring Harness,freezer section ,with light
NI	5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI	240568606 Frigidaire Refrigerator Coil Cover Seal
1	WCI 240355402
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240313609
11	5303208309 Frigidaire Refrigerator Plug Hole
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	WCI 215812200
16	218906802 Frigidaire Light Lamp Socket
18	WCI 240411901
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A	240336802 Frigidaire Refrigerator Hinge Spacer
35	BRACKET-CTR HINGE, BISQUE
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER
38	240313703 Frigidaire Refrigerator Hinge
40	WCI 240354403
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 240368206
74	WCI 240354301
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	241554901 Frigidaire Refrigerator Light/Lamp Switch
