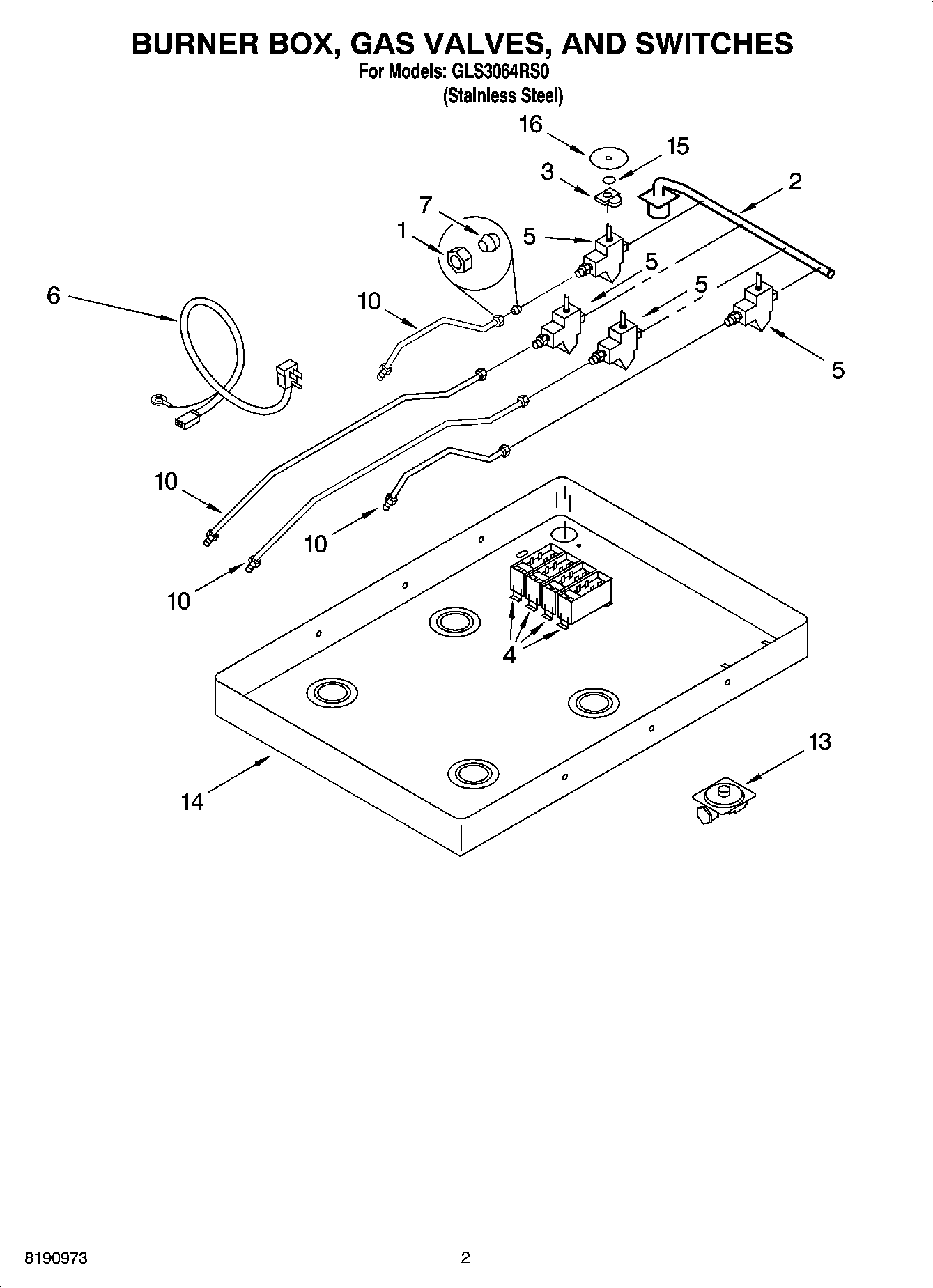

GLS3064RS0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLS3064RS0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

GLS3064RS0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18190918 Whirlpool Nut
2Pipe, Manifold
3WP8190913 Whirlpool Igniter Switch
4W11601369 Whirlpool Spark Module
5Valve, Burner (Cntr 1500 (Yellow))
5Valve, Burner (RF-LR 9000 (Orange))
5W10461950 Whirlpool Burner Valve
68190925 Whirlpool Oven Power Cord
78190917 Whirlpool Sleeve
10Tubing, Burner (RF)
10Tubing, Burner (LF)
10Tubing, Burner (LR)
10Tubing, Burner (RR)
13Regulator, Pressure
14Box, Burner
15Clip, Spring (4)
16Gas Conversion Kit (Natural Gas To LP Gas)
16Strain Relief
16Washer (4) (Spark Switch)
16W11628754 Whirlpool Cooktop Gasket
168190978 Whirlpool Oven Mounting Bracket
16Following Parts Not Illustrated and Optional Parts Not Included
16Screw (2) – Mntg
