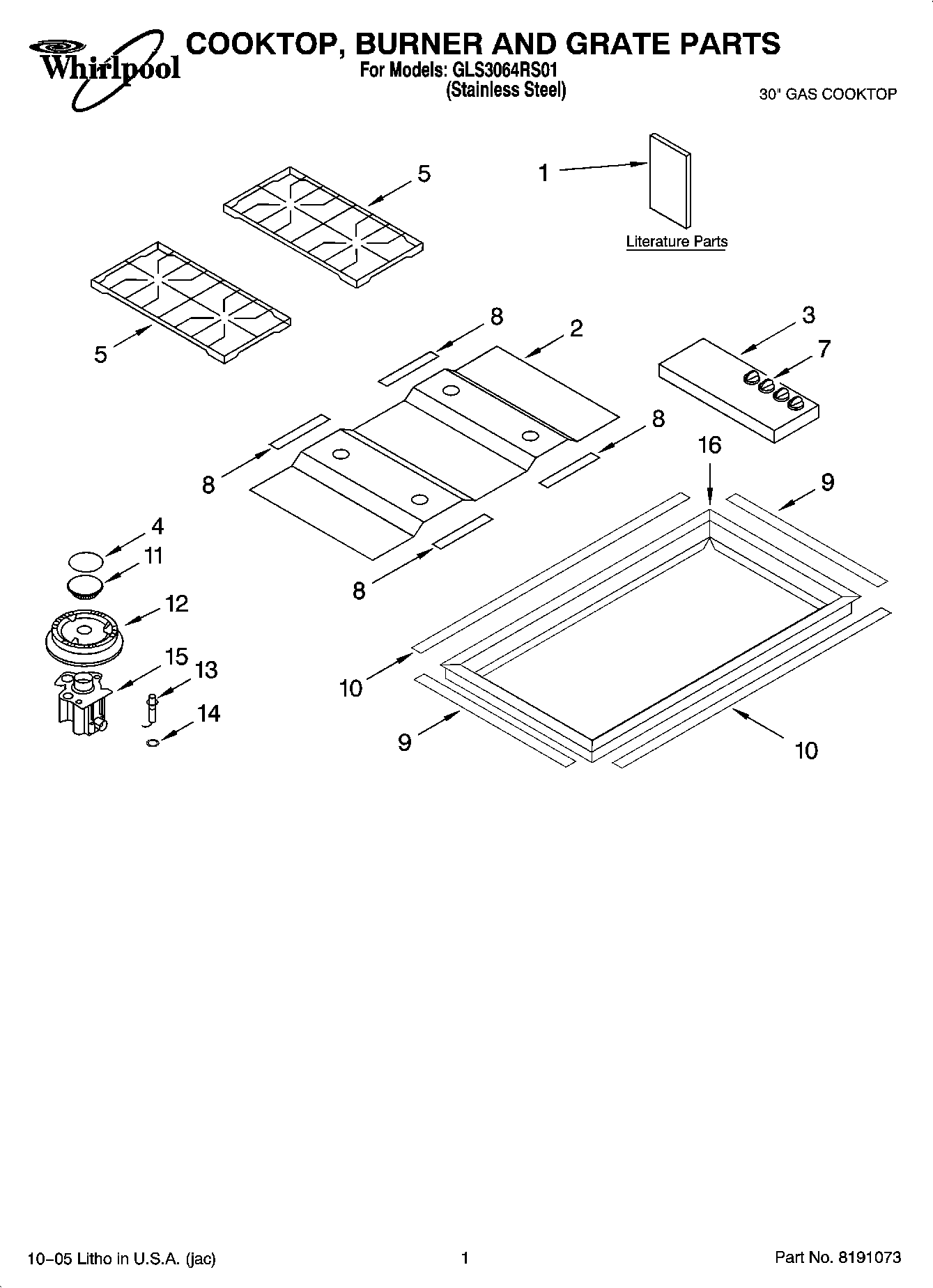

GLS3064RS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1LP Conversion Instructions
1Use & Care Guide
1Installation Instructions
2Cooktop
3Panel, Control
4WP8190894 Whirlpool Burner Cap
4WP8190893 Whirlpool Burner Cap
4Cap, Burner (Center)
5Grates (2)
7WPW10569186 Whirlpool Knob
8Seal, Foam (6) 3/8 x 1/2 x 5.5“
9Seal, Foam (2) 1/8 x 1/2 x 18“
10Seal, Foam (2) 1/8 x 1/2 x 27“
11WP8190896 Whirlpool Burner Head
118190897 Whirlpool Oven Burner Head
11WP8190898 Whirlpool Burner Head
128190901 Whirlpool Oven Base Burner
128190900 Whirlpool Oven Base Burner
128190899 Whirlpool Oven Burner Base
13Ignitor, Surf (5)
14Clip, Spring (5)
15Holder, Orifice (RR-LF)
15Holder, Orifice (Center)
15Holder, Orifice (RF-LR)
16FOLLOWING PARTS NOT ILLUSTRATED
16Frame, Top
168190943 Whirlpool Oven Wire Harness
16Ignitor Wire Kit
