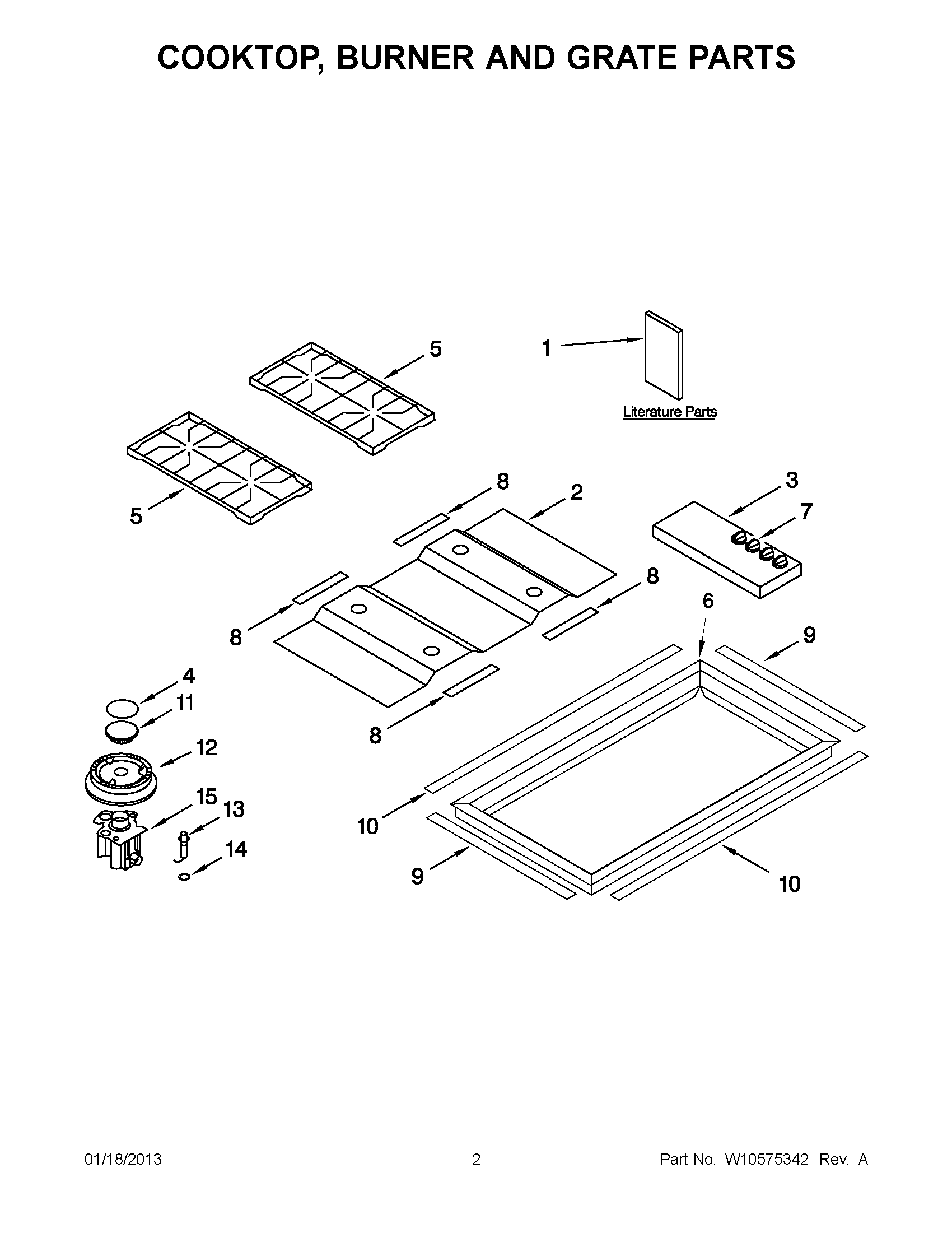

GLS3064RS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Installation Instructions
1LP Conversion Instructions
2Cooktop
3Panel, Control
4Cap, Burner (Center)
4WP8190894 Whirlpool Burner Cap
4WP8190893 Whirlpool Burner Cap
5Grates (2)
6Frame, Top
7WPW10569186 Whirlpool Knob
8Seal, Foam (6) 3/8 x 1/2 x 5.5“
9Seal, Foam (2) 1/8 x 1/2 x 18“
10Seal, Foam (2) 1/8 x 1/2 x 27“
11WP8190898 Whirlpool Burner Head
11WP8190896 Whirlpool Burner Head
118190897 Whirlpool Oven Burner Head
128190899 Whirlpool Oven Burner Base
128190900 Whirlpool Oven Base Burner
128190901 Whirlpool Oven Base Burner
13Ignitor, Surf (5)
14Clip, Spring (5)
15Holder, Orifice (RR-LF)
15Holder, Orifice (Center)
15Holder, Orifice (RF-LR)
