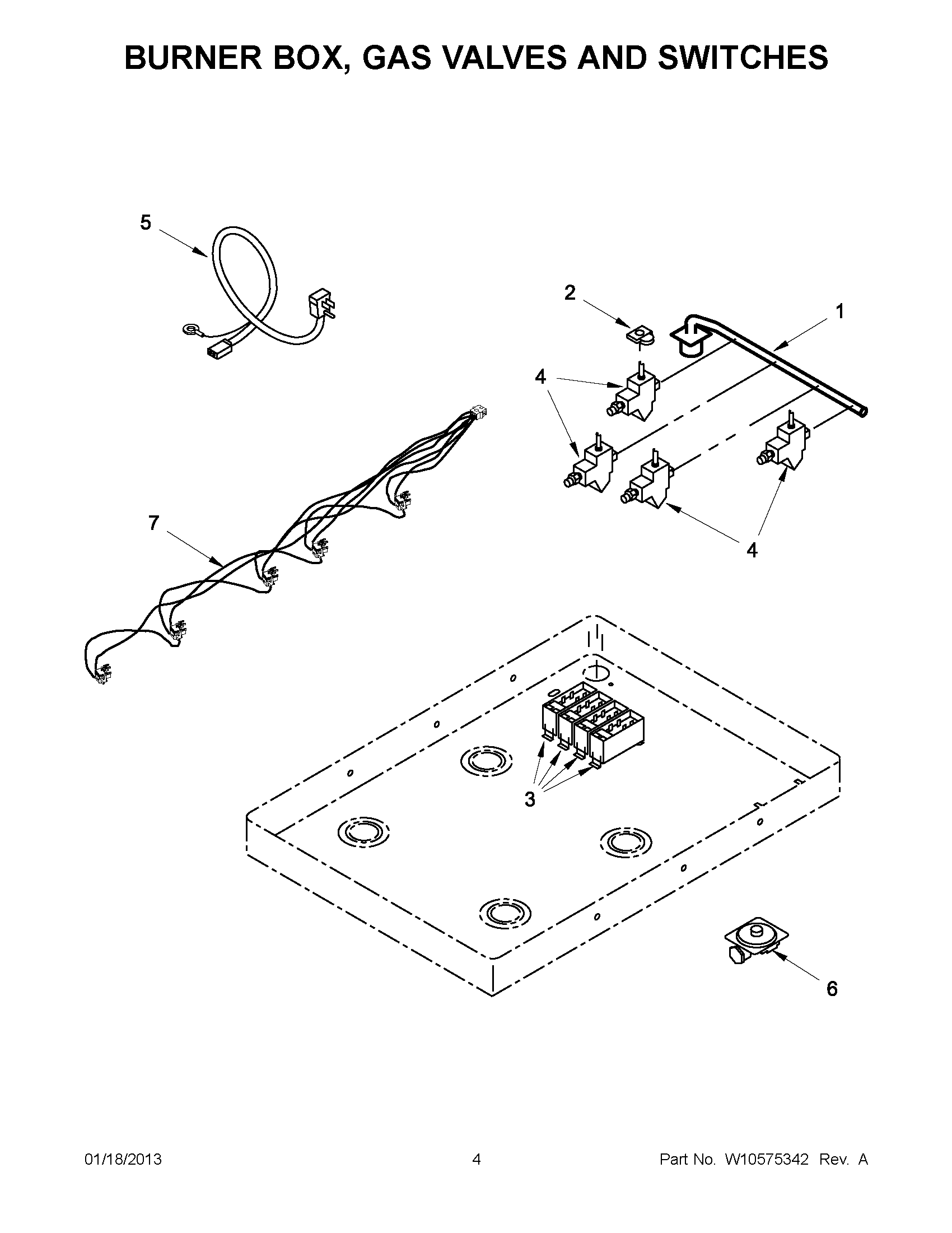

GLS3064RS02 02 – BURNER BOX, GAS VALVES AND SWITCHES

GLS3064RS02 02 – BURNER BOX, GAS VALVES AND SWITCHES

Written by

in

GLS3064RS02 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIScrew (2) – Mntg
NIGas Conversion Kit (Natural Gas To LP Gas)
NIW11628754 Whirlpool Cooktop Gasket
NI8190978 Whirlpool Oven Mounting Bracket
1Pipe, Manifold
2WP8190913 Whirlpool Igniter Switch
3W11601369 Whirlpool Spark Module
4Valve, Burner (Cntr 1500 (Yellow))
4Valve, Burner (RF-LR 9000 (Orange))
4W10461950 Whirlpool Burner Valve
58190925 Whirlpool Oven Power Cord
6Regulator, Pressure
7HARNESS, VALVES WITH SWITCHES
