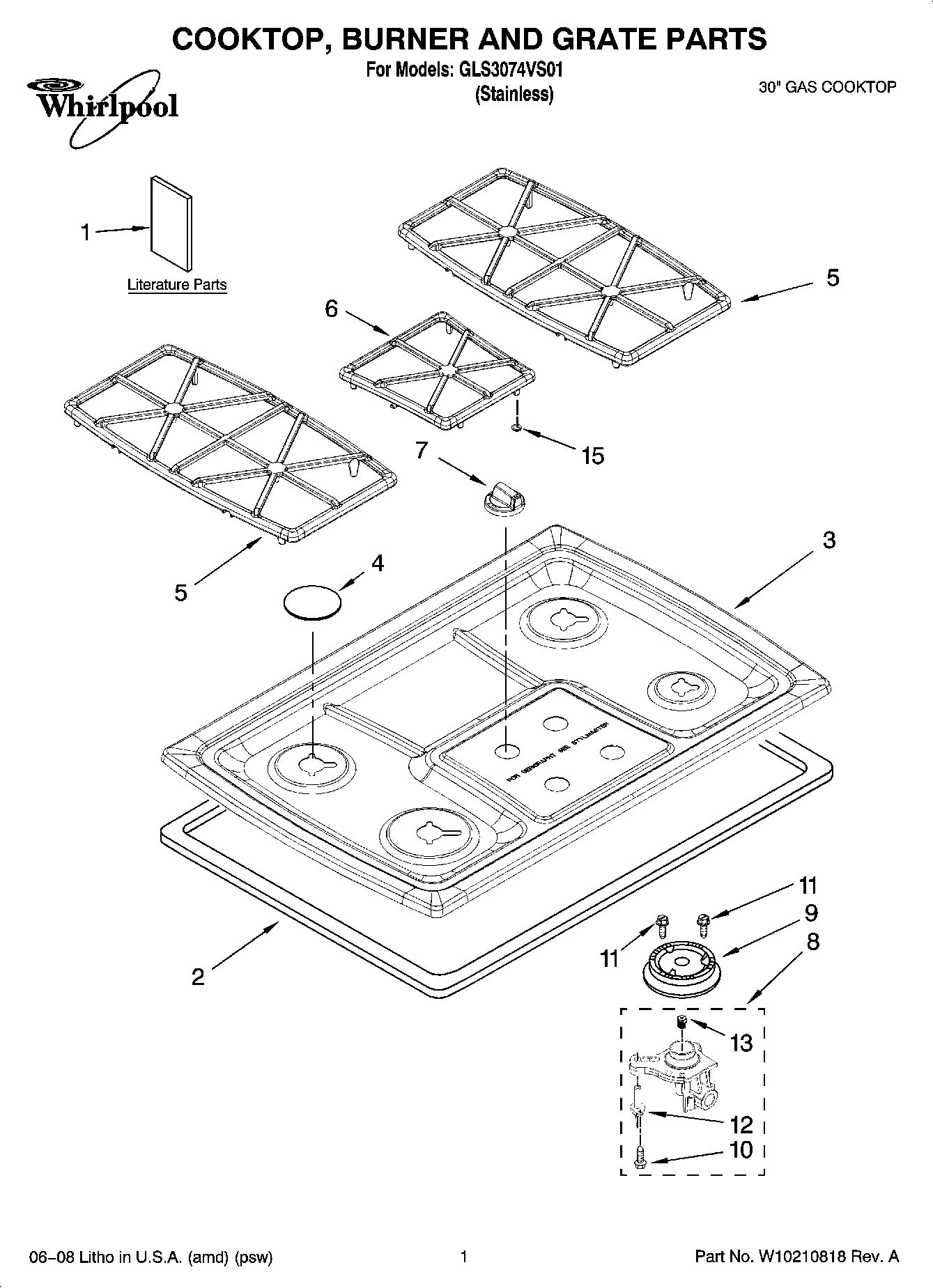

GLS3074VS01 01 – COOKTOP, BURNER AND GRATE PARTS

GLS3074VS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLS3074VS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Converstion Instructions
1Use & Care Guide
1Installation Instructions
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
1Safe Cooking Tips
29760045 Whirlpool Oven Foam Seal
3Cooktop
4WP8286156CB Whirlpool Cooktop Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
5WP9759505 Whirlpool Burner Grate
6Grate, Center
7WPW10180180 Whirlpool Stainless Range Controller Knob
8WPW10128450 Whirlpool Orifice Holder
88287043 Whirlpool Oven Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
8WPW10128451 Whirlpool Orifice Holder
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WPW10406878 Whirlpool Burner Base (16K)
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
13WP3192529 Whirlpool Orifice Assembly
138287044 Whirlpool Oven Orifice
13WP3192523 Whirlpool Orifice
138286551 Whirlpool Oven Orifice
14814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
