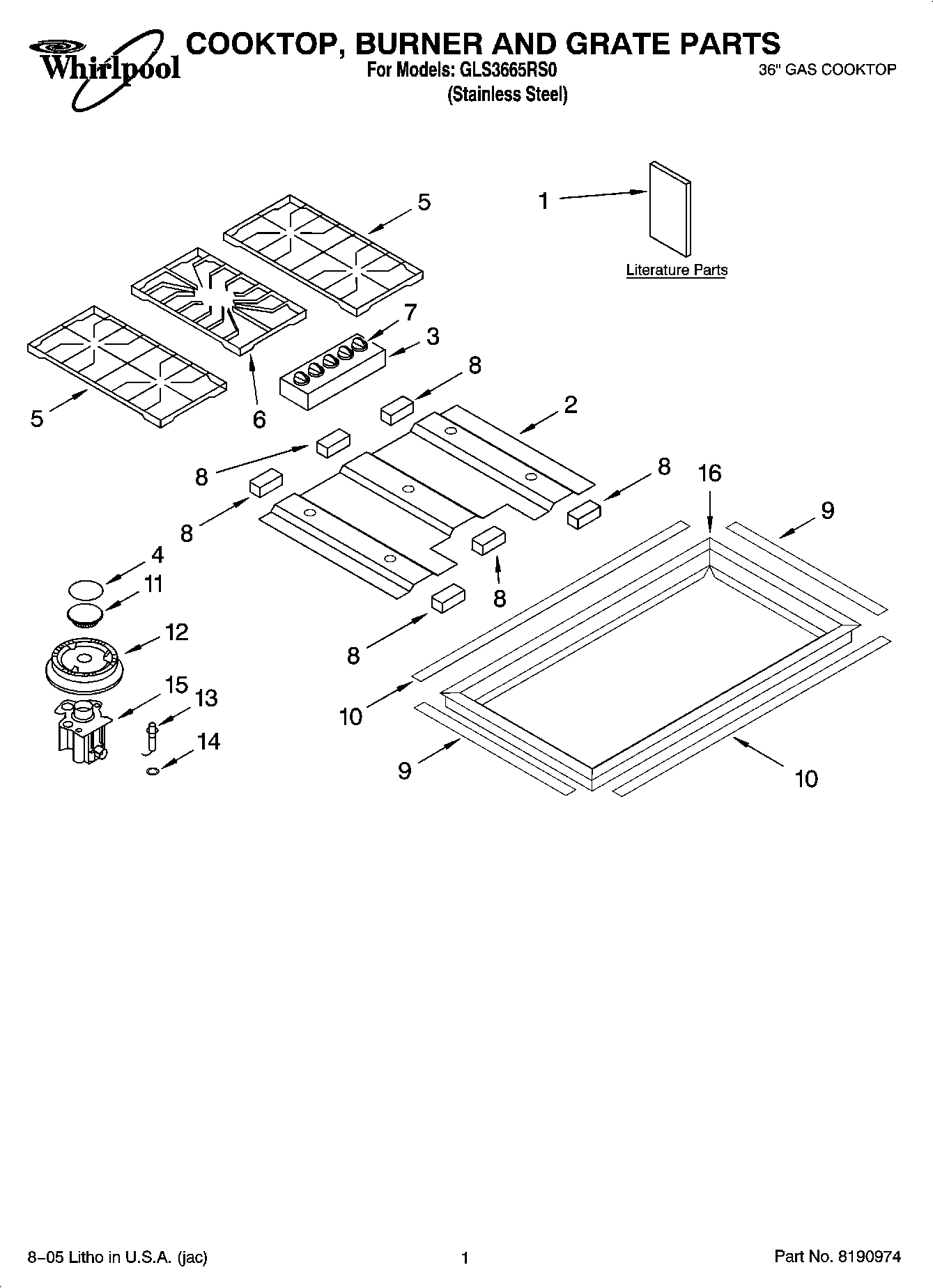

GLS3665RS0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Use & Care Guide
1	LP Conversion Instructions
1	Installation Instructions
2	Cooktop
3	Panel, Control
4	WP8190893 Whirlpool Burner Cap
4	Cap, Burner (Center)
4	WP8190894 Whirlpool Burner Cap
5	Grates (2)
6	Grate, Center
7	WPW10569186 Whirlpool Knob
8	Seal, Foam (6) 3/8 x 1/2 x 5.5“
9	Seal, Foam (2) 1/8 x 1/2 x 18“
10	Seal, Foam (2) 1/8 x 1/2 x 33“
11	8190897 Whirlpool Oven Burner Head
11	WP8190896 Whirlpool Burner Head
11	WP8190898 Whirlpool Burner Head
12	8190899 Whirlpool Oven Burner Base
12	8190901 Whirlpool Oven Base Burner
12	8190900 Whirlpool Oven Base Burner
13	Ignitor, Surf (5)
14	Clip, Spring (5)
15	Holder, Orifice (RR-LF)
15	Holder, Orifice (Center)
15	Holder, Orifice (RF-LR)
16	FOLLOWING PARTS NOT ILLUSTRATED
16	Ignitor Wire Kit
16	Harness, Wire
16	Frame, Top
