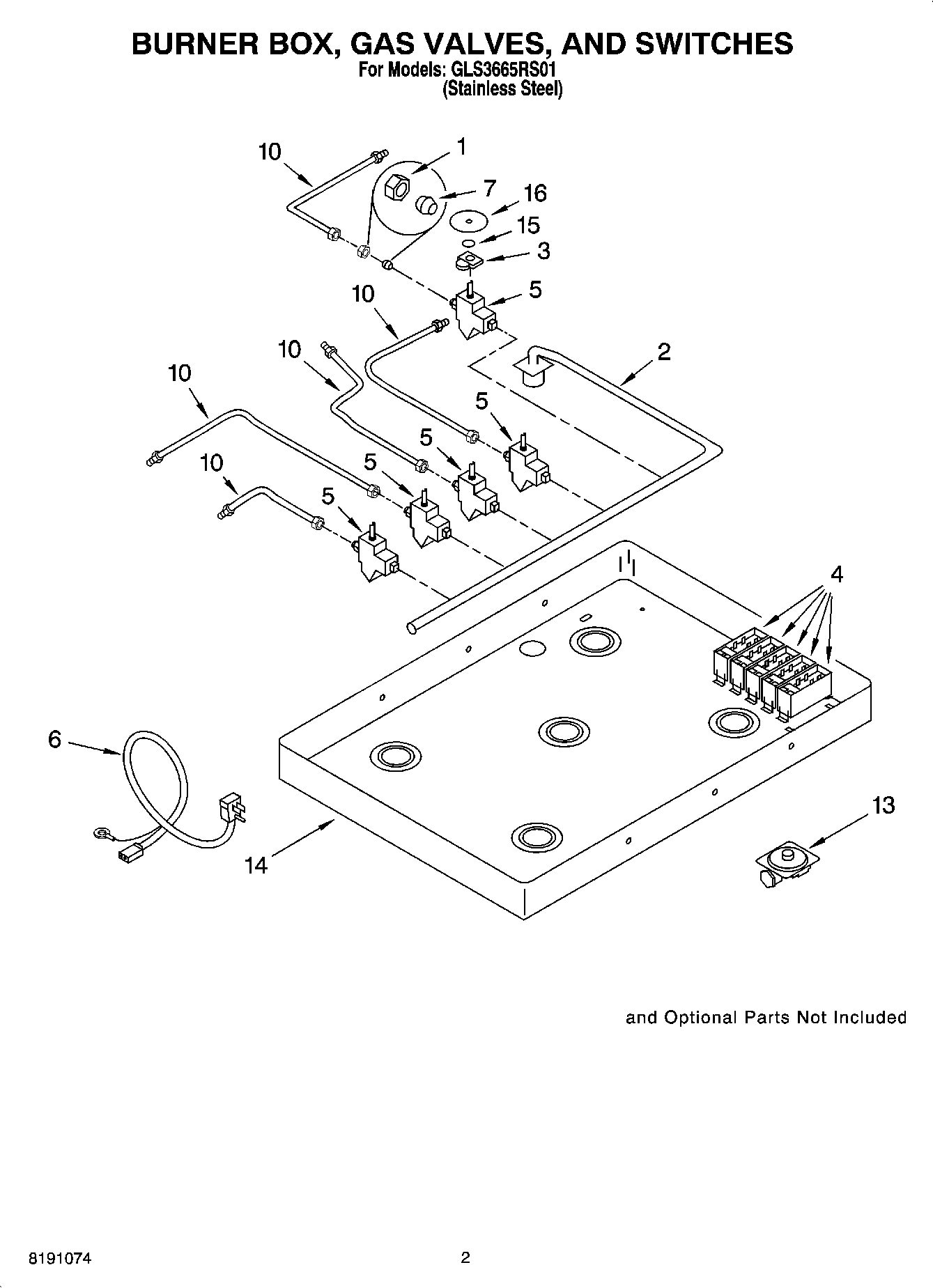

GLS3665RS01 02 – BURNER BOX, GAS VALVES, AND SWITCHESadmin2025-04-26T10:31:54+00:00GLS3665RS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES
Products
| Position | Product |
|---|
| 1 | 8190918 Whirlpool Nut |
| 2 | 8190910 Whirlpool Oven Manifold |
| 3 | WP8190913 Whirlpool Igniter Switch |
| 4 | W11601369 Whirlpool Spark Module |
| 5 | Valve, Burner (Cntr 1500 (Yellow)) |
| 5 | Valve, Burner (RF-LR 9000 (Orange)) |
| 5 | W10461950 Whirlpool Burner Valve |
| 6 | 8190925 Whirlpool Oven Power Cord |
| 7 | 8190917 Whirlpool Sleeve |
| 10 | Tubing, Burner (LF) |
| 10 | Tubing, Burner (LR) |
| 10 | Tubing, Burner (Center) |
| 10 | Tubing, Burner (RF) |
| 10 | Tubing, Burner (RR) |
| 13 | Regulator, Pressure |
| 14 | Box, Burner |
| 15 | Clip, Spring (4) |
| 16 | Screw (2) - Mntg |
| 16 | Gas Conversion Kit (Natural Gas To LP Gas) |
| 16 | Strain Relief |
| 16 | Washer (4) (Spark Switch) |
| 16 | W11628754 Whirlpool Cooktop Gasket |
| 16 | 8190978 Whirlpool Oven Mounting Bracket |
| 16 | Following Parts Not Illustrated and Optional Parts Not Included |
