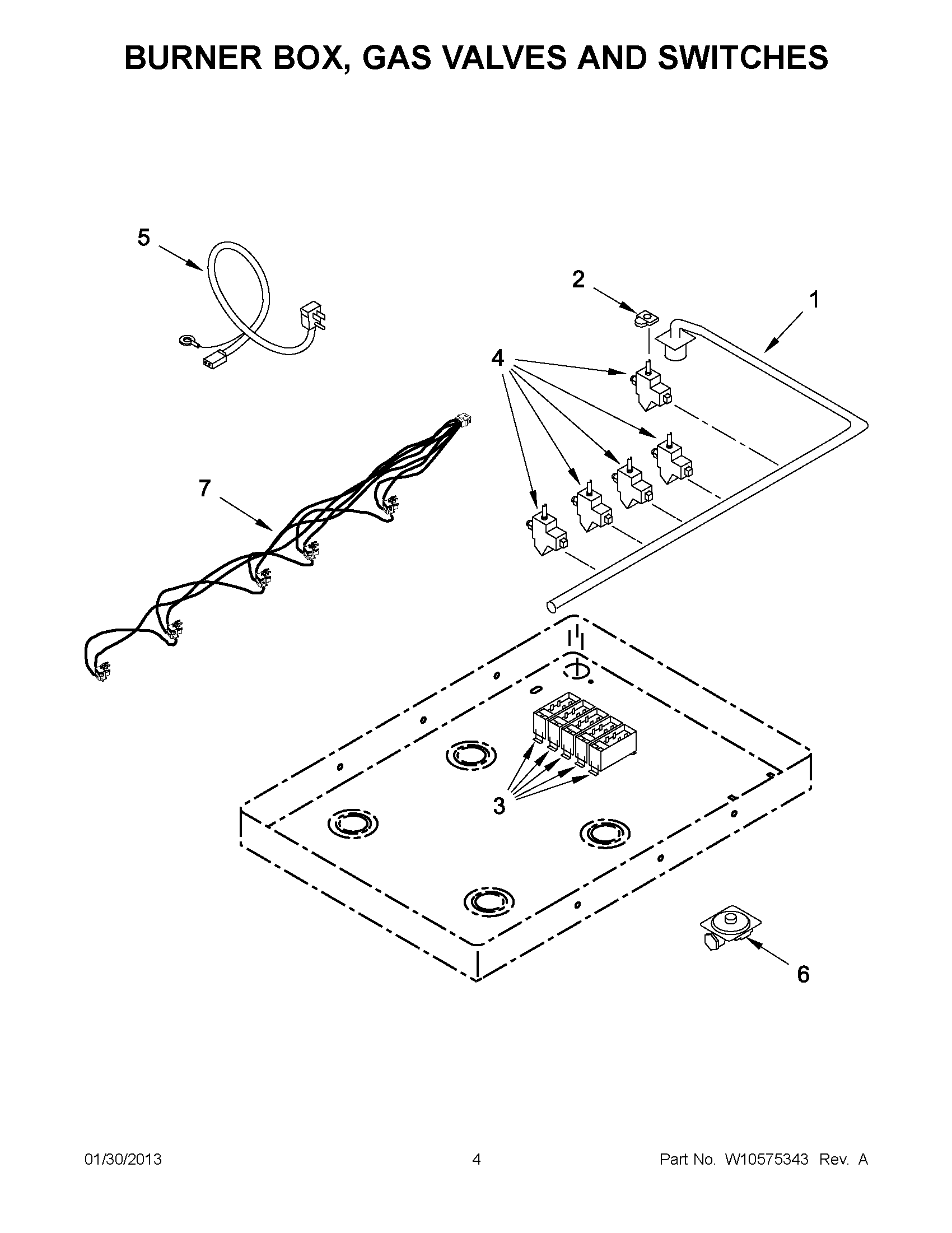

GLS3665RS02 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	8190978 Whirlpool Oven Mounting Bracket
NI	Gas Conversion Kit (Natural Gas To LP Gas)
NI	Screw (2) – Mntg
NI	W11628754 Whirlpool Cooktop Gasket
1	8190910 Whirlpool Oven Manifold
2	WP8190913 Whirlpool Igniter Switch
3	W11601369 Whirlpool Spark Module
4	W10461950 Whirlpool Burner Valve
4	Valve, Burner (Cntr 1500 (Yellow))
4	Valve, Burner (RF-LR 9000 (Orange))
5	8190925 Whirlpool Oven Power Cord
6	Regulator, Pressure
7	HARNESS, VALVES WITH SWITCHES
