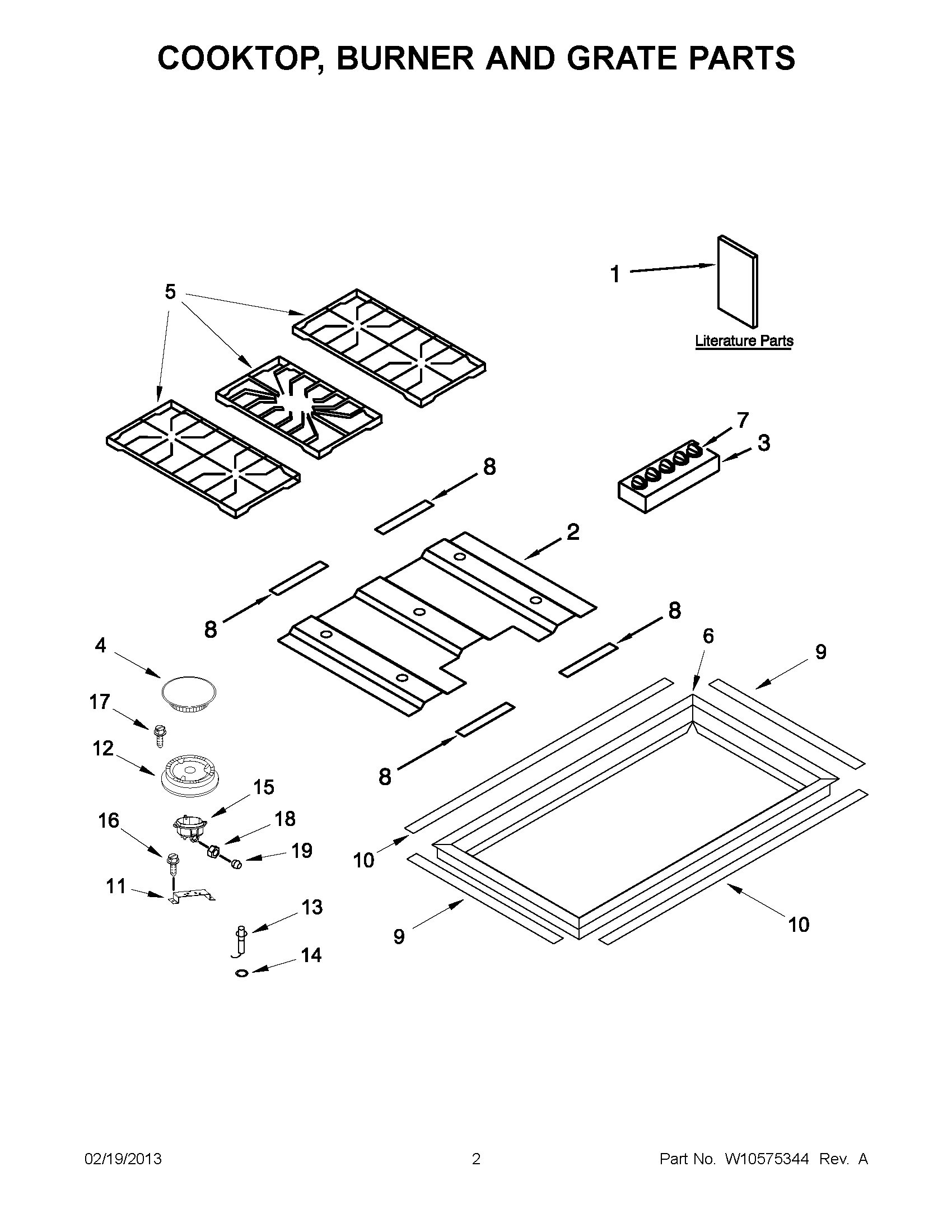

GLS3665RS03 01 – COOKTOP, BURNER AND GRATE PARTS

GLS3665RS03 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLS3665RS03 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1LP CONVERSION INSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2COOKTOP, TOP PLATE
3Panel, Control
4WP8286818 Whirlpool Burner Cap
4WP8286817 Whirlpool Burner Cap
5Grate, Center
5Grates (2)
6Frame, Top
7WPW10569186 Whirlpool Knob
8Seal, Foam (6) 3/8 x 1/2 x 5.5“
9Seal, Foam (2) 1/8 x 1/2 x 18“
10Seal, Foam (2) 1/8 x 1/2 x 33“
11W10618476 Whirlpool Mounting Bracket
12WP8286815 Whirlpool Burner Head
12WP8286814 Whirlpool Burner Head
13WPW10571490 Whirlpool Surface Igniter
13WPW10571486 Whirlpool Surface Igniter
13WPW10571488 Whirlpool Surface Igniter
13WPW10571489 Whirlpool Surface Igniter
13ELECTRODE (L-250 (RIGHT FRONT))
14W10571930 Whirlpool Appliance Clip
15WPW10571492 Whirlpool Orifice Holder
15WPW10571491 Whirlpool Orifice Holder
15WPW10571493 Whirlpool Orifice Holder
16WP8287059 Whirlpool Screw
17W10491985 Whirlpool Screw
18NUT, INJECTOR
19W10575399 Whirlpool Sleeve
