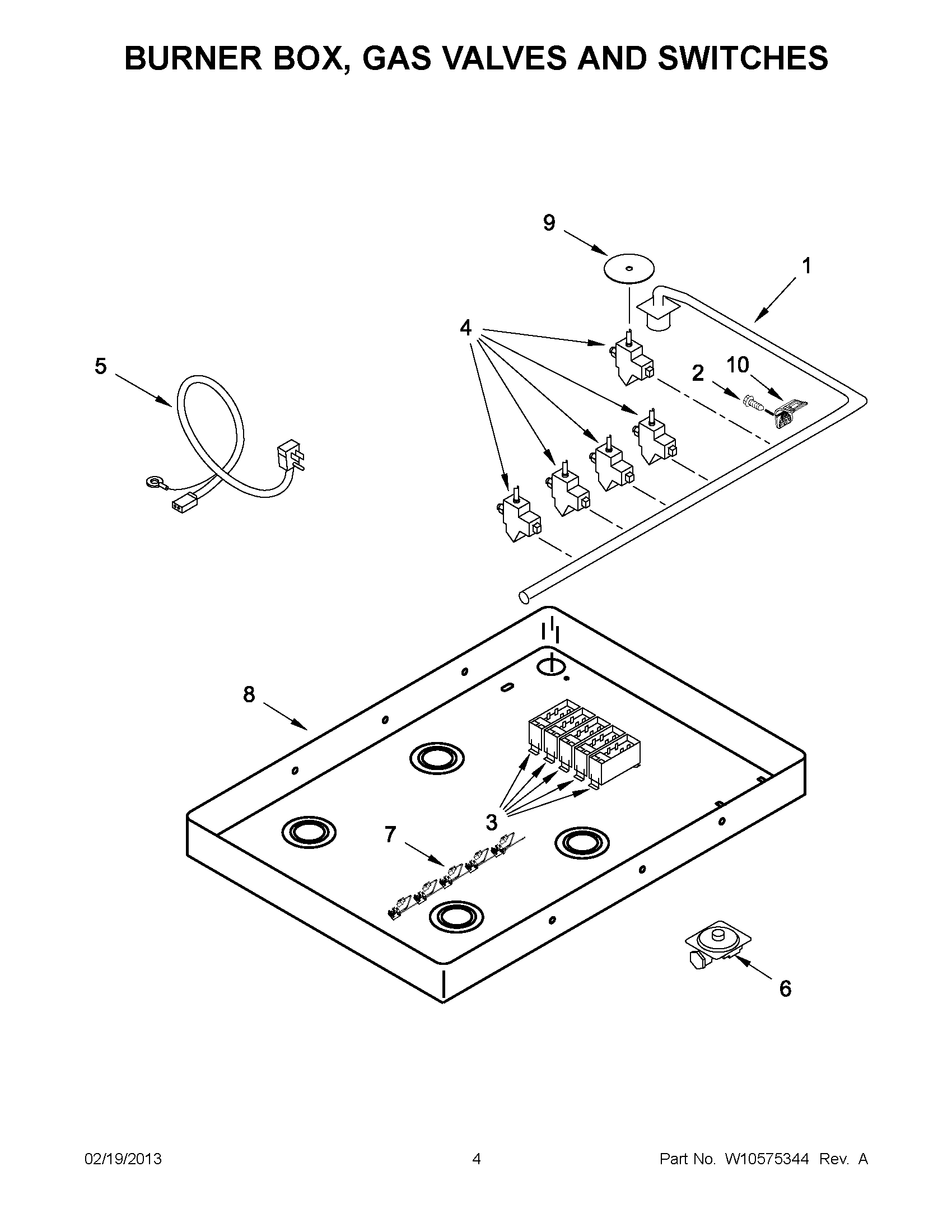

GLS3665RS03 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIORIFICE, LP 15K 1.14
NIORIFICE, LP 9K 0.88
NICONVERSION KIT, LP
NIW10571952 Whirlpool Orifice Spud
NIW10569188 Whirlpool Wire Harness
NIScrew (2) – Mntg
NIW11628754 Whirlpool Cooktop Gasket
NI8190978 Whirlpool Oven Mounting Bracket
18190910 Whirlpool Oven Manifold
28287057 Whirlpool Oven Screw
3W11601369 Whirlpool Spark Module
4WPW10569183 Whirlpool Burner Valve
4WPW10569184 Whirlpool Burner Valve
58190925 Whirlpool Oven Power Cord
6WPW10569189 Whirlpool Regulator
7WPW10569187 Whirlpool Wire Harness
8BOX, BURNER
9W10140571 Whirlpool Seal Switch
108287055 Whirlpool Oven Mounting Bracket
