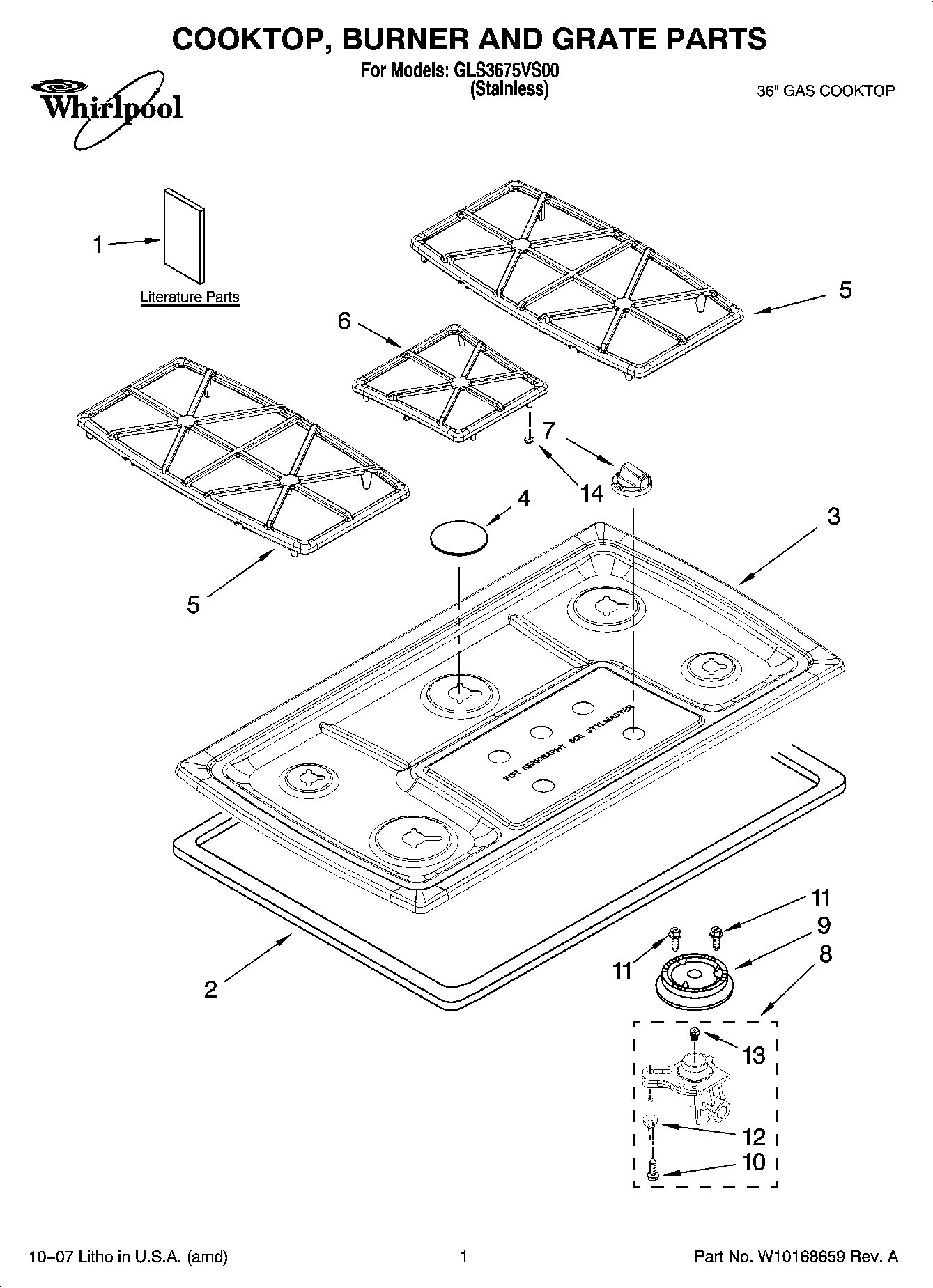

GLS3675VS00 01 – COOKTOP, BURNER AND GRATE PARTS

GLS3675VS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLS3675VS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Installation Instructions
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Wiring Diagram
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
2Seal, Foam
3Cooktop
4WP8286153CB Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286156CB Whirlpool Cooktop Burner Cap
4WP8286154CB Whirlpool Burner Cap
5WP9759505 Whirlpool Burner Grate
6Grate, Center
7WPW10180180 Whirlpool Stainless Range Controller Knob
8Holder, Orifice (RR)
8WPW10128448 Whirlpool Igniter and Orifice Holder
88287043 Whirlpool Oven Orifice Holder
8WPW10128450 Whirlpool Orifice Holder
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WPW10406878 Whirlpool Burner Base (16K)
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
13WP3192529 Whirlpool Orifice Assembly
13Orifice (RR)
138287044 Whirlpool Oven Orifice
13WP3192523 Whirlpool Orifice
14814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
