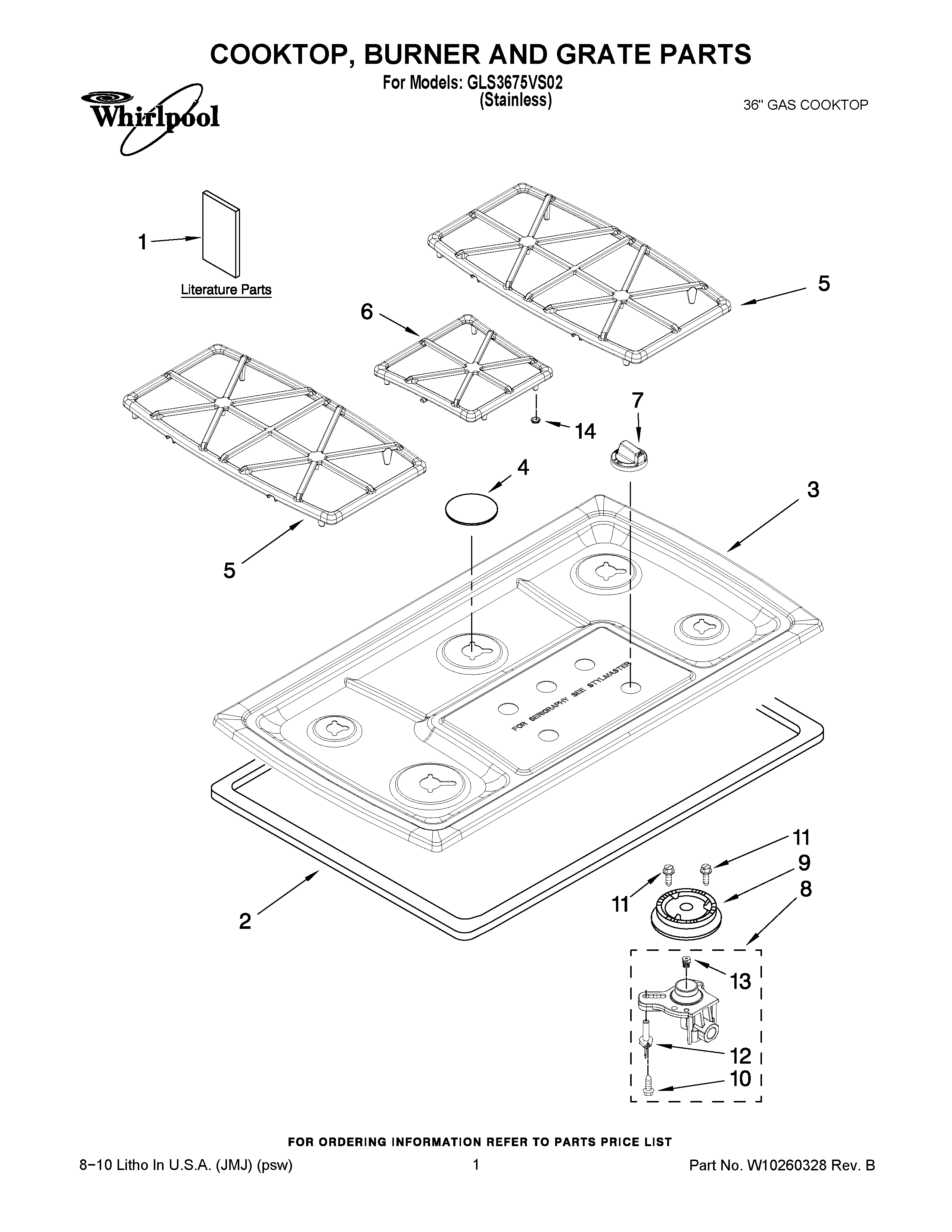

GLS3675VS02 01 – COOKTOP, BURNER AND GRATE PARTS

GLS3675VS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

GLS3675VS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Converstion Instructions
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions (Undercounter Oven)
2Seal, Foam
3Cooktop
4WP8286153CB Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286156CB Whirlpool Cooktop Burner Cap
4WP8286154CB Whirlpool Burner Cap
5WP9759505 Whirlpool Burner Grate
6Grate, Center
7WPW10180180 Whirlpool Stainless Range Controller Knob
8WPW10128451 Whirlpool Orifice Holder
8WPW10128450 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
88287043 Whirlpool Oven Orifice Holder
9WPW10406878 Whirlpool Burner Base (16K)
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
138286551 Whirlpool Oven Orifice
13WP3192529 Whirlpool Orifice Assembly
138287044 Whirlpool Oven Orifice
13WP3192523 Whirlpool Orifice
14814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
