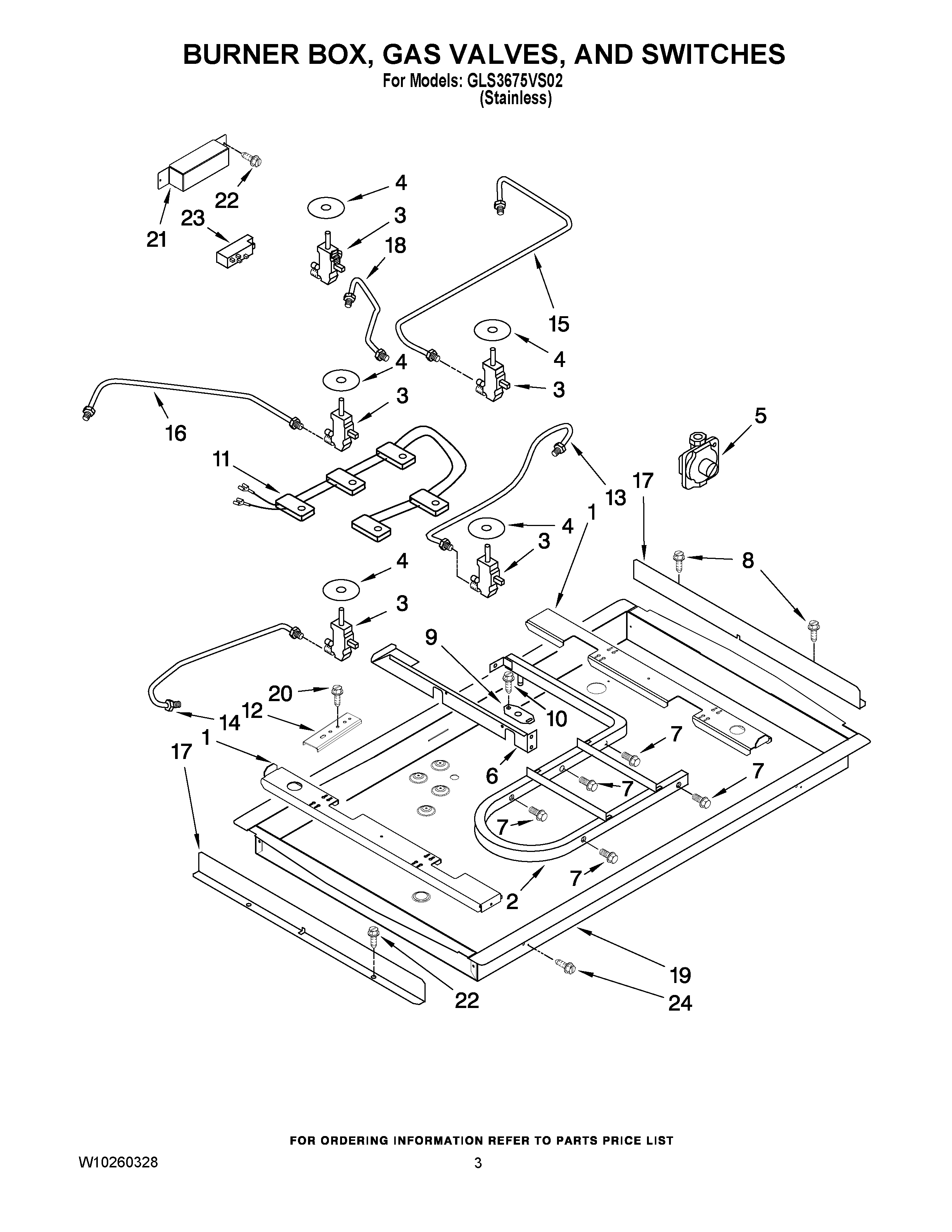

GLS3675VS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

GLS3675VS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

GLS3675VS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18285796 Whirlpool Support Assembly
28285751 Whirlpool Oven Manifold Pipe
38286561 Whirlpool Oven Burner Valve
3Valve, Gas Burner (Yellow)
3Valve, Gas Burner (White)
3WP4456817 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5W11170853 Whirlpool Regulator Assembly
6Rail, Center
7WP3186217 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
93192491 Whirlpool Support Bracket
10W10491985 Whirlpool Screw
11WP4456901 Whirlpool Wire Harness
128186533 Whirlpool Hardware
138285768 Whirlpool Oven Gas Tubing
148285766 Whirlpool Oven Gas Tubing
158285767 Whirlpool Oven Gas Tubing
168285769 Whirlpool Gas Tubing
188285770 Whirlpool Gas Tubing Assembly
19Burner Box
20WP3400093 Whirlpool Screw
213191462 Whirlpool Oven Heat Shield
22WP3177991 Whirlpool Screw
23WPW10110486 Whirlpool Spark Module
24WP4449809 Whirlpool Screw
