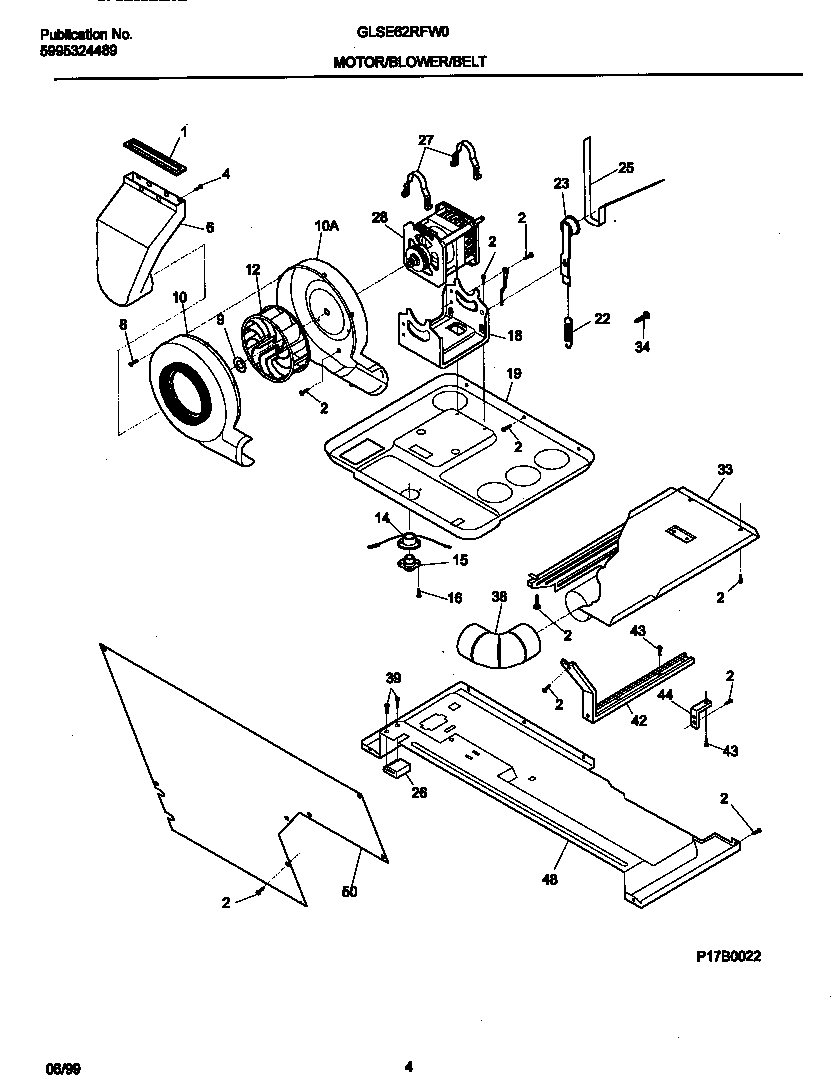

GLSE62RFW0 03 – P17B0022 DRY MTR,BELT

GLSE62RFW0 03 – P17B0022 DRY MTR,BELT

Written by

in

GLSE62RFW0 03 – P17B0022 DRY MTR,BELT

Products

PositionProduct
*29881WCI 5303208586
*29880131453000 Frigidaire Bushing
1131295200 Frigidaire Seal
2131168200 Frigidaire Dryer Screw
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
8SCREW (6)
95304488479 Frigidaire Washer Hose Clamp
10WCI 131575200
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 131658100
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
18CRADLE & STUD
19WCI 131363901
223205241 Frigidaire Idler Spring
23WCI 131827000
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 131419800
285303937189 Frigidaire Drive Motor with Blower Housing
33WCI 131731400
34131205300 Frigidaire Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
43SCREW 12-24 X .63 HEX HD
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
