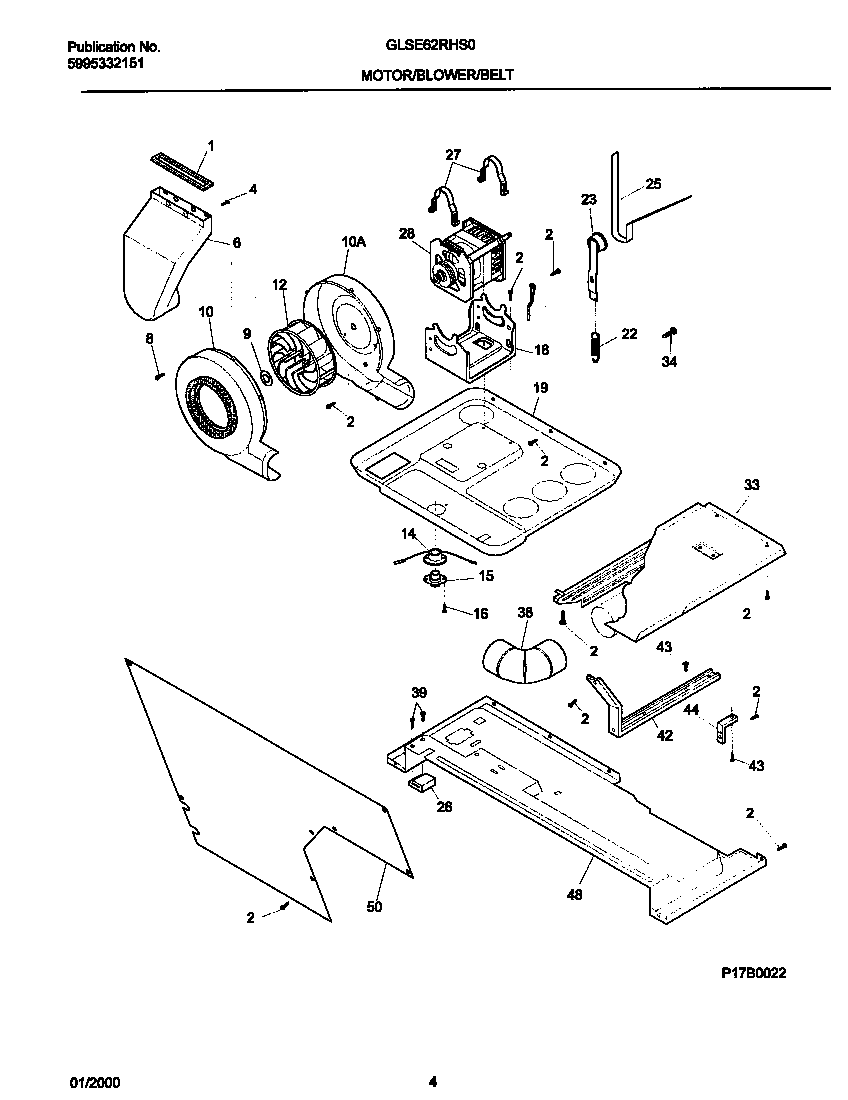

GLSE62RHS0 03 – P17B0022 DRY MTR,BELT

GLSE62RHS0 03 – P17B0022 DRY MTR,BELT

Written by

in

GLSE62RHS0 03 – P17B0022 DRY MTR,BELT

Products

PositionProduct
*88681134101400 Frigidaire Dryer Kit Terminal Block
*88680WCI 5303208586
1131295200 Frigidaire Seal
2131168200 Frigidaire Dryer Screw
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
8SCREW (6)
95304488479 Frigidaire Washer Hose Clamp
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
10WCI 131575200
12BLOWER WHEEL
14WCI 131658100
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
18CRADLE & STUD
19WCI 131363901
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 131419800
285303937189 Frigidaire Drive Motor with Blower Housing
33WCI 131731401
34131205300 Frigidaire Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
43SCREW 12-24 X .63 HEX HD
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
