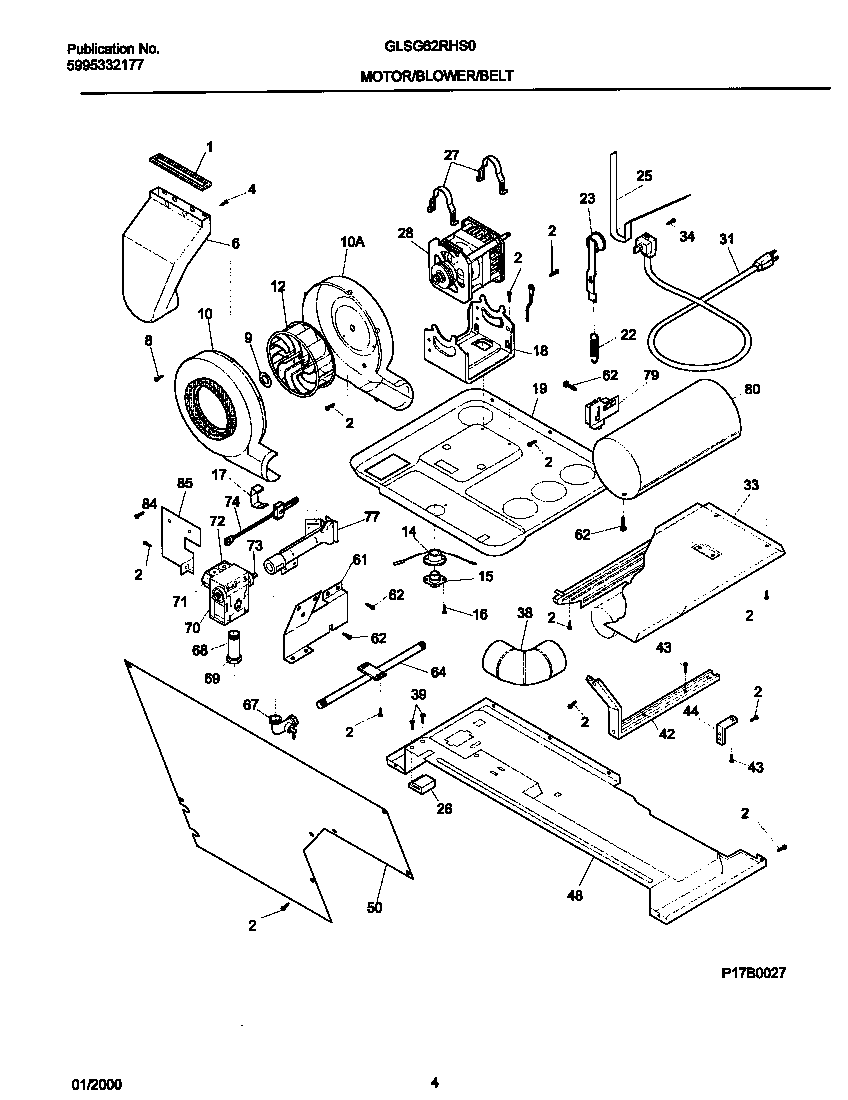

GLSG62RHS0 03 – P17B0027 DRY MTR,BELT

GLSG62RHS0 03 – P17B0027 DRY MTR,BELT

Written by

in

GLSG62RHS0 03 – P17B0027 DRY MTR,BELT

Products

PositionProduct
*09880131453000 Frigidaire Bushing
*09881PCK3100 Frigidaire Conversion Kit
1131295200 Frigidaire Seal
2131168200 Frigidaire Dryer Screw
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
8SCREW (6)
95304488479 Frigidaire Washer Hose Clamp
10WCI 131575200
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 131658101
15WCI 131322600
16134178901 Frigidaire Screw
17131715500 Frigidaire Clip
18CRADLE & STUD
19WCI 131363901
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 131419800
285303937189 Frigidaire Drive Motor with Blower Housing
31134500500 Frigidaire Power Cord
33WCI 131731411
34134154100 Frigidaire Screw 10-32 x 0.375 Co
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
43SCREW 12-24 X .63 HEX HD
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
61BRACKET-VALVE
62131243700 Frigidaire Screw
64WCI 5303207405
67VALVE-SHUT OFF
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
77WCI 131763500
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131712405 Frigidaire Tube
84WCI 145488-000
85WCI 131712300
