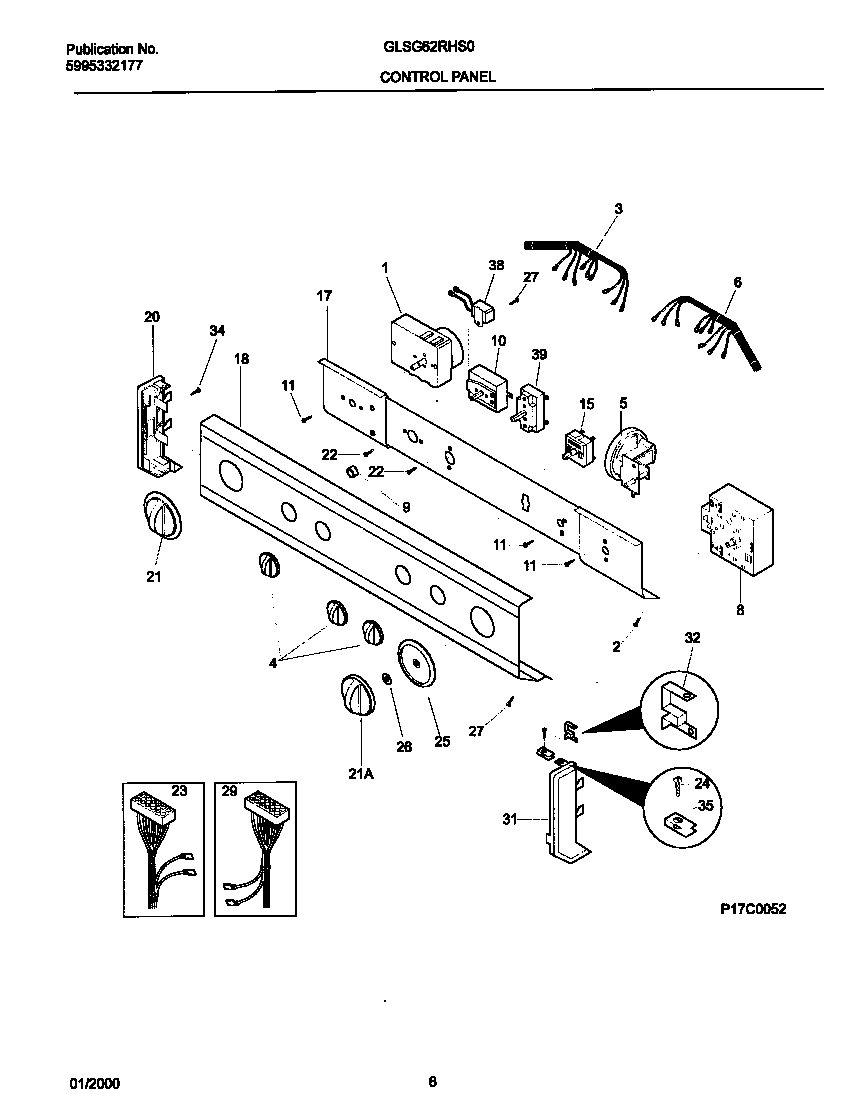

GLSG62RHS0 04 – P17C0052 CONTROL PANEL

GLSG62RHS0 04 – P17C0052 CONTROL PANEL

Written by

in

GLSG62RHS0 04 – P17C0052 CONTROL PANEL

Products

PositionProduct
*098835303161300 Frigidaire Strap
*09882131209800 Frigidaire Clamp
1TIMER
2131168200 Frigidaire Dryer Screw
3WCI 131662600
4131858004 Frigidaire Control Knob, White
5134493500 Frigidaire Switch
6WCI 131668500
8131437500 Frigidaire Washer Timer
9WCI 131111501
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
15WCI 131621100
17WCI 131712611
18WCI 131881100
20WCI 131288101
21131859104 Frigidaire Dryer Timer Knob
21WCI 5303211165
22WCI 3161259
23WCI 131848700
24134156200 Frigidaire Screw
25WCI 5303319285
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131778800
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39WCI 131753000
