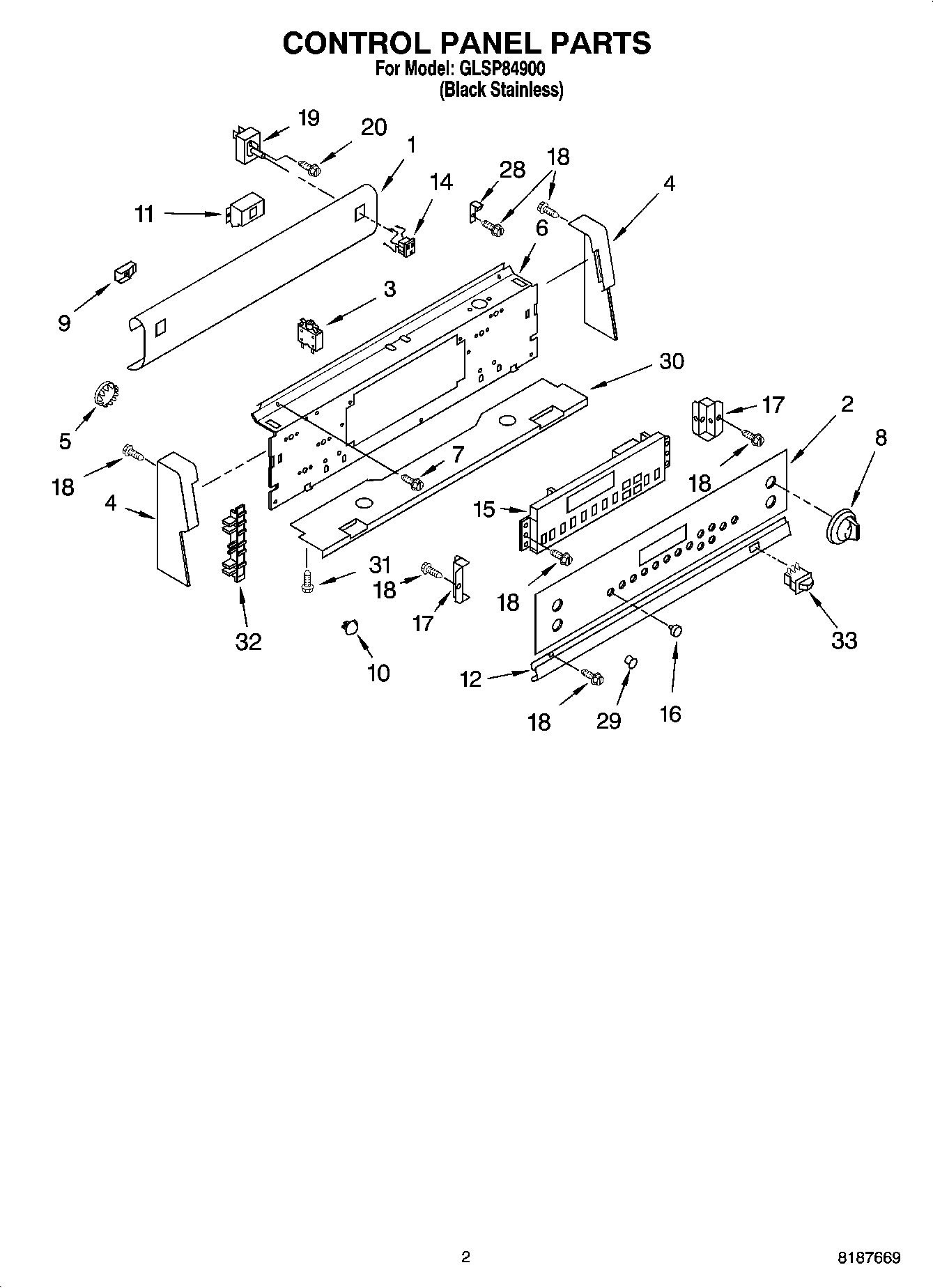

GLSP84900 02 – CONTROL PANEL PARTS
Written by
in
GLSP84900 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Lamp Cover (Black)
2
Console-Glass (Control Panel)
3
Breaker, 15 Amp
4
End Cap (Black, Right)
4
End Cap (Black, Left)
5
Button Plug (8 mm (2))
6
Panel, Control
7
Panel, Control (Screw, (2) 8 x 3/8)
8
Knobs, Control (4) (Black)
9
Light, Indicator (Surface Unit (2))
10
Spacer, Timer
11
WPL 9755353PB
12
Trim Strip (Black)
14
Outlet, Untimed (2) (Black)
15
Timer
16
Knob, Timer (17) (Black)
17
WPL 9753304
18
WP4159387 Whirlpool Compactor Screw
19
Switch, Dual
19
Infinite Switch (1800W)
19
WP9750643 Whirlpool Infinite Switch
20
WP3400882 Whirlpool Screw
28
WPL 9753017
29
WP9750343 Whirlpool Light Lens
30
Base, Console
31
WP3400832 Whirlpool Screw
32
Insert (2) (Black)
33
Switch, Rocker
33
Insulation, Control Panel
←
