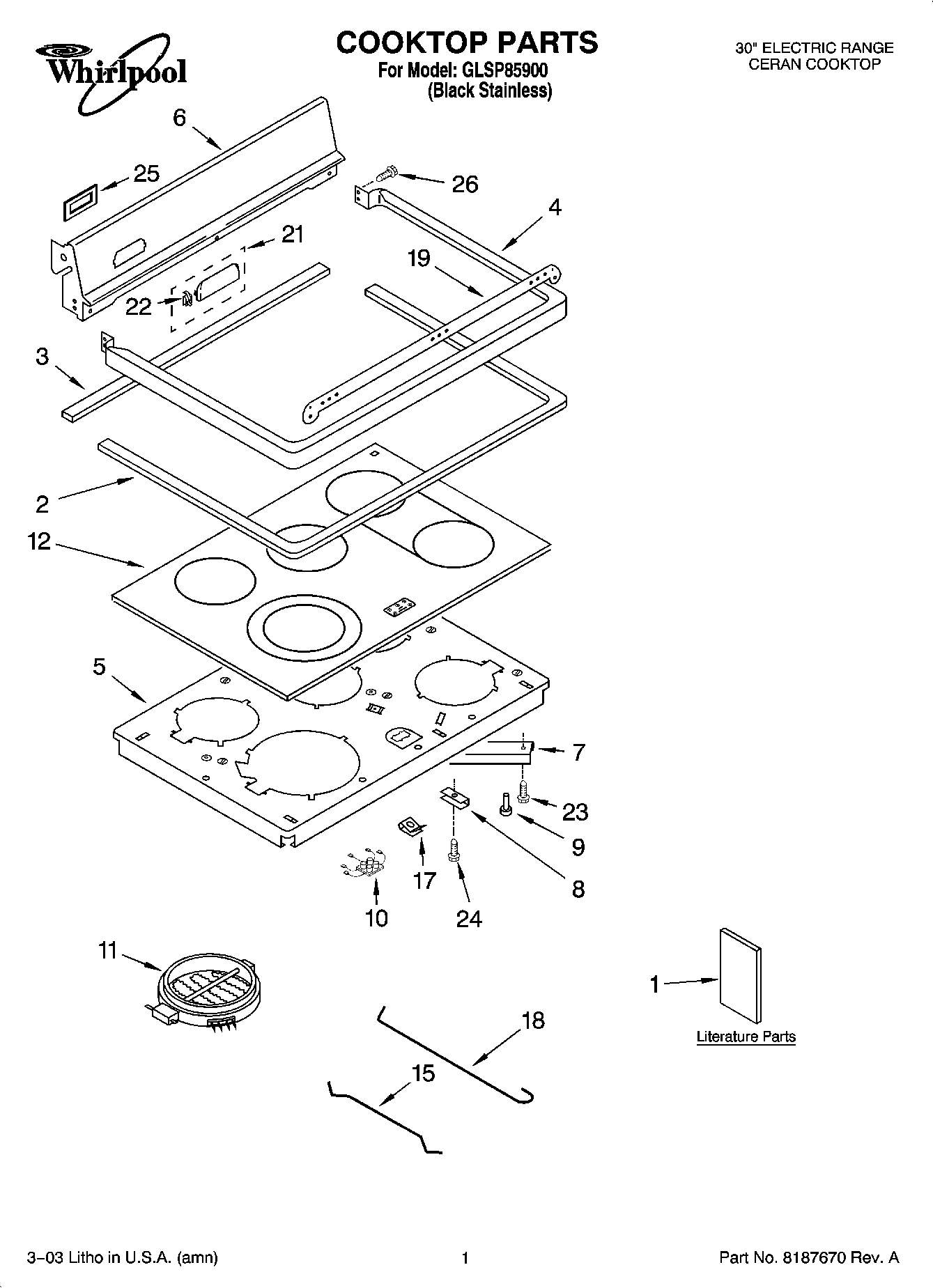

GLSP85900 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1Literature Parts (Installation Instructions)
1Literature Parts (Service Instructions)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (Black)
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823692 Whirlpool Dual Radiant Element
11Element, Surface (1800/800W Right)
11WP8523700 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
12Cooktop, Ceran
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Rod, Large Ceran Element
19Guard, Wire
21Cover, Vent (Black)
22Clip, Vent Cover
23Screw (4) 10 x 1/2
24Screw, (4) 10PH-B x 3/4
25Vent Gasket
26Back Splash (Screw (4) 10AB x 1/2“)
26Spring, Warm Zone Element
